Listen Up Octagon sf8008 no output

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,536
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
plus a high pitched whine from inside. There is also a faint whiff of plastic. I only went out for half an hour as well.

This receiver has an external power supply so I would suspect the only place where the noise might come from is the front panel display, but that is also dead.

Will take the lid off later and have a sniff/listen for any clues.


Terryl

Specialist Contributor
Joined
Apr 14, 2011
Messages
3,246
Reaction score
1,932
Points
113
Age
82
My Satellite Setup
OpenBox X5 on a 1 meter motorized dish.
And now a 10 foot "C" band dish.

Custom built PC
My Location
Deep in the Boonies in the central Sierra Nevada mountains of California.
Well if you let the smoke out of it, it will never work right, you have to put the smoke back in, then it will work again..........The high pitched whine may be from the smoke generators,(plastic IC chips) they could make that noise, and the smoke may smell like plastic.


4wd

Getting the picture
Joined
Dec 16, 2012
Messages
1,674
Reaction score
2,203
Points
113
My Satellite Setup
5 W, 9-13-19-28 E
My Location
Bergen, Norway \ Alpes Maritimes, France
Like in old cars and bikes, if the smoke escapes from within it's sealed confinements, one has to plug the leak, then buy new smoke from Lucas and inject it, and all will be fine.


Tururu

Assembled with recycled parts
Joined
Jun 3, 2006
Messages
2,849
Reaction score
964
Points
113
My Satellite Setup
90cm motorised dishes(98x90)+fixed+multiLNB+24Unicable.
Currently 56 satellites, 61°West to 57°East.

Octagon SF8008 4K Twin, VU+Duo², VU+Ultimo4K.
Recycled as the owner.
My Location
North of Madrid (28703 Spain) -3Km of IKEA (40.545847, -3.612012).:-)
The power supply, never use it, give what it says, period.
Some source when breaking, you can hear the high frequency oscillator of the commutation by lowering the frequency and being audible.
Inside the receiver has nothing that can produce noise, hopefully it is not a condenser, which I have 3 years ago (2 satellite tuner), I use it with a fatter source and without problems.
-------------
La fuente de alimentacion, no la use nunca, da lo que dice y punto.
Alguna fuente al romperse, puedes oir el oscilador de alta frecuencia de la conmutacion al bajar la frecuencia y ser audible.
Dentro el receptor no tiene nada que pueda producir ruido, esperemos que no sea algun condensador, el que tengo hace 3 años (2 tuner satelite), lo uso con una fuente mas gorda y sin problemas.


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,536
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
The PSU is an external one and the noise comes from the receiver.

I've taken the lid off - warranty sticker now void - and it does appear to come from near the CI slot, possibly the IF tuner but I will remove the PCB from the case to check further / closer.


solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,400
Reaction score
3,648
Points
113
Age
53
My Location
Tel Aviv, Israel
it better to buy 12v 5a adapter and replace it


maxi_power

Member
Joined
Jan 5, 2015
Messages
95
Reaction score
40
Points
18
My Satellite Setup
120cm motorised dishes
My Location
PT
Some photos would be cool...


Terryl

Specialist Contributor
Joined
Apr 14, 2011
Messages
3,246
Reaction score
1,932
Points
113
Age
82
My Satellite Setup
OpenBox X5 on a 1 meter motorized dish.
And now a 10 foot "C" band dish.

Custom built PC
My Location
Deep in the Boonies in the central Sierra Nevada mountains of California.

Tururu

Assembled with recycled parts
Joined
Jun 3, 2006
Messages
2,849
Reaction score
964
Points
113
My Satellite Setup
90cm motorised dishes(98x90)+fixed+multiLNB+24Unicable.
Currently 56 satellites, 61°West to 57°East.

Octagon SF8008 4K Twin, VU+Duo², VU+Ultimo4K.
Recycled as the owner.
My Location
North of Madrid (28703 Spain) -3Km of IKEA (40.545847, -3.612012).:-)
The PSU is an external one and the noise comes from the receiver.
I've taken the lid off - warranty sticker now void - and it does appear to come from near the CI slot, possibly the IF tuner but I will remove the PCB from the case to check further / closer.

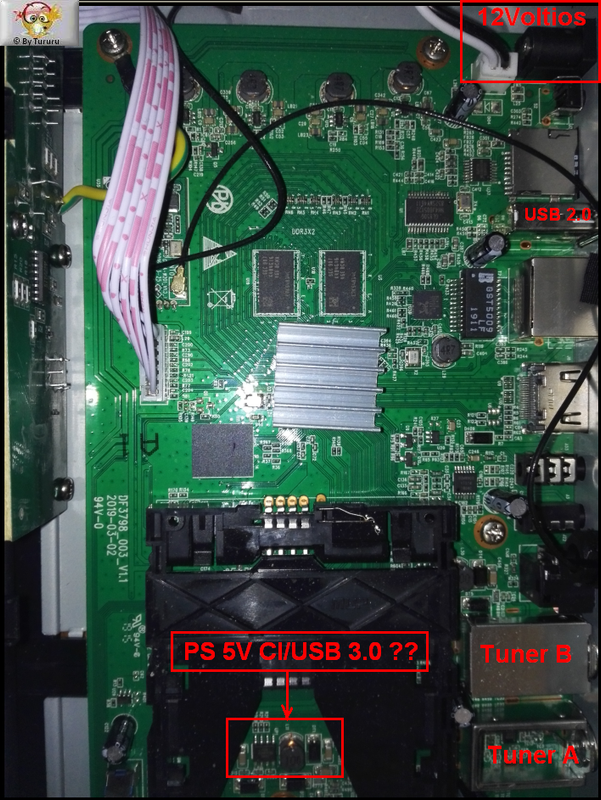

En la zona del lector de tarjetas puede ser un convertidos de tension que tiene para el usb 3.0, luego lo miro.

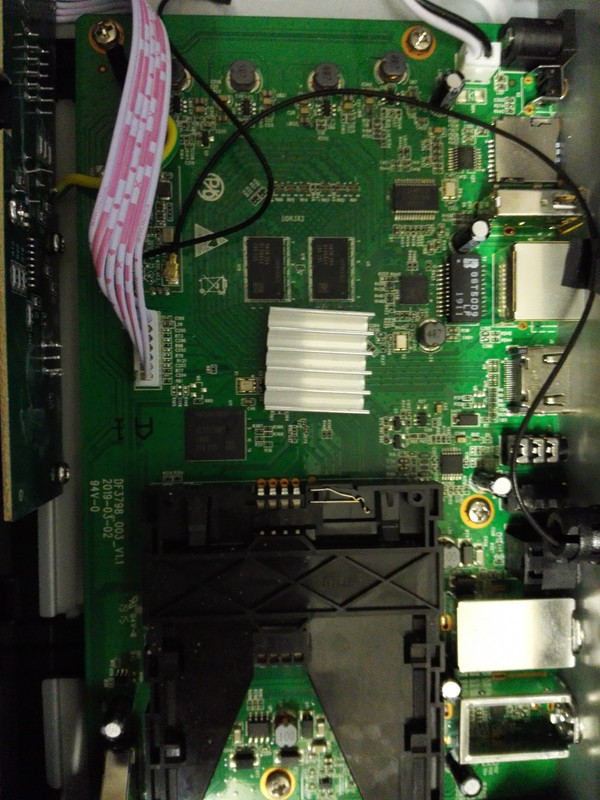

Tengo unas fotos que le saque el 24-enero-2020, para los compañeros, luego pongo otras mejores.
Queria ver el chip del tuner.
--------------
In the area of the card reader can be a voltage converts that it has for USB 3.0, then I look at it.
I have some pictures that will be taken on January 24, 2020, for colleagues, then I put better ones.
I wanted to see the tuner's chip.





Terryl

Specialist Contributor
Joined
Apr 14, 2011
Messages
3,246
Reaction score
1,932
Points
113
Age
82
My Satellite Setup
OpenBox X5 on a 1 meter motorized dish.
And now a 10 foot "C" band dish.

Custom built PC
My Location
Deep in the Boonies in the central Sierra Nevada mountains of California.
I've had inductors in a power supply circuit make funny noises when they are built too cheap, had too much current pulled through them, or about to go bad or have gone bad, touch the top of the 100 uH inductor inside the red outlined area in the second photo with a plastic or ceramic tuning tool and see if the ringing/whining stops.

If the inductor was under rated for the DC current spec in that circuit, or in someway a power overload was drawn on that circuit, it could smell like burning plastic


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,536
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
First test before the full dismantle.

Audio pitch is 7.5kHz and looks to be from under the PCMCIA housing.


Attachments

  • 20200222_135316.jpg
    262.2 KB · Views: 37

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,536
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
And having dismantled as far as I can (the card slot mechanism is hard soldered to the main board) , the whine appears to come from components buried deep within. I can't see anything that looks damaged, though the whiff of plastic was the second clue after no lights on the front panel.

Pressing on the coil shown doesnt make any difference to the noise I can hear.

I doubt I can get any further to a fix without sending back to Germany.;


Attachments

  • IMG_0401.JPG
    651.1 KB · Views: 30
  • IMG_0406.JPG
    421.9 KB · Views: 30

maxi_power

Member
Joined
Jan 5, 2015
Messages
95
Reaction score
40
Points
18
My Satellite Setup
120cm motorised dishes
My Location
PT
En la zona del lector de tarjetas puede ser un convertidos de tension que tiene para el usb 3.0, luego lo miro.
Tengo unas fotos que le saque el 24-enero-2020, para los compañeros, luego pongo otras mejores.
Queria ver el chip del tuner.
--------------
In the area of the card reader can be a voltage converts that it has for USB 3.0, then I look at it.
I have some pictures that will be taken on January 24, 2020, for colleagues, then I put better ones.
I wanted to see the tuner's chip.





Hi,
You can use both tuners at the same time without overheating problems?


maxi_power

Member
Joined
Jan 5, 2015
Messages
95
Reaction score
40
Points
18
My Satellite Setup
120cm motorised dishes
My Location
PT
And having dismantled as far as I can (the card slot mechanism is hard soldered to the main board) , the whine appears to come from components buried deep within. I can't see anything that looks damaged, though the whiff of plastic was the second clue after no lights on the front panel.

Pressing on the coil shown doesnt make any difference to the noise I can hear.

I doubt I can get any further to a fix without sending back to Germany.;

After removing the guarantee seal, maybe it doesn't pay.


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,536
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Of course, but I can point them back to this thread to know it wasn't dismantled for a reason other than identifying if the fault was something elementary.

So, what components on a satellite receiver front end oscillate at 7.5 - 8 kHz when faulty ?


maxi_power

Member
Joined
Jan 5, 2015
Messages
95
Reaction score
40
Points
18
My Satellite Setup
120cm motorised dishes
My Location
PT
I was also tempted to open mine, but maybe I have to send it to RMA first.
The worst thing is that the problem of mine only occurs in certain circumstances, may not detect the problem in tests.
Since I started using the 2 tuners at the same time, the DVB-T tuner loses signal if the box is not being ventilated.


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,536
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
There is, or isn't a power delivery system on the terrestrial side with the SF8008 ? It is odd that you might find the unit overheats unless it is putting power out to something like a masthead amplifier. What is the ambient temperature of the room where you have it installed ?

I used the terrestrial tuner maybe twice in six months, just to look at the updates on UK television. I've not had both ports connected at any one time.


maxi_power

Member
Joined
Jan 5, 2015
Messages
95
Reaction score
40
Points
18
My Satellite Setup
120cm motorised dishes
My Location
PT
I only started having problems when I started using the box as a fallback tuner.
I have nothing in the installation that can cause problems.
Now it's winter and it's been cold here by PT.


dreambox1959

Specialist Contributor
Joined
Feb 7, 2009
Messages
406
Reaction score
539
Points
93
Age
64
Location
46.3N-4.3E-FRANCE
My Satellite Setup
Octagon SF8008 - technomate 7100
My Location
france
I only started having problems when I started using the box as a fallback tuner.
I have nothing in the installation that can cause problems.
Now it's winter and it's been cold here by PT.


here is 4 power supply :

here is lnb supply


Terryl

Specialist Contributor
Joined
Apr 14, 2011
Messages
3,246
Reaction score
1,932
Points
113
Age
82
My Satellite Setup
OpenBox X5 on a 1 meter motorized dish.
And now a 10 foot "C" band dish.

Custom built PC
My Location
Deep in the Boonies in the central Sierra Nevada mountains of California.
Of course, but I can point them back to this thread to know it wasn't dismantled for a reason other than identifying if the fault was something elementary.

So, what components on a satellite receiver front end oscillate at 7.5 - 8 kHz when faulty ?
The main DC power input to the receiver is from an external +12 DC wall wart right??

So somewhere there is a voltage multiplier circuit or switching circuit to get the +18 volts DC needed to switch to a different transponder on the LNB, this voltage multiplier or switching circuit could have a damaged component in it, (thus the burnt plastic smell) and maybe causing the ringing noise, cant go too much further with out a schematic of the unit.

One way to look for a bad IC or other component would be a thermal scan of the PCB, this would give you an idea on a bad part by it's thermal image.

Top
