A few years ago I painted my pole and polar mount in black Hammerite paint, it's now almost impossible to finely adjust azimuth as the painted surfaces stick together, so I have to rotate the pole. I'm not saying it will be a problem for you but it's something to be aware of :)
I hope that will not happen and i really hope to not have to move the polar mount at this height before a very long time ! :)
Anyway i know this probleme .
i already found a solution, this is to use spray paint for the upper par.
The rest of the pole with a roll.


zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
I advanced on the foundation part with the templats and threaded rods and bolts .

I imagined it like that but I'm waiting for your advice.

IMG_7120 (Copier).JPG

the hole and the concrete are normally for this weekend :)


ozumo

Contributor
Staff member
Joined
May 26, 2020
Messages
3,190
Reaction score
1,144
Points
113
My Satellite Setup
Raven mk2 zone 2 x4, Channel Master: 90cm x3, 1.2m x2, 1.8m PF. CM polar mount x2, Az/El x3.
My Location
South Durham
Is this to get the pole plumb or just to mount it to the concrete? If for adjustment use nyloc nuts, or additional plain nuts to help stop the nut from moving. I use extra nuts with a dab of thread lock on my pole.


zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
Is this to get the pole plumb or just to mount it to the concrete? If for adjustment use nyloc nuts, or additional plain nuts to help stop the nut from moving. I use extra nuts with a dab of thread lock on my pole.

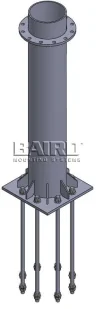

The two wooden templates exactly copy the base of the king post and match all the holes exactly.
The feet are too heavy to use it directly as the template.
the threaded rods are therefore at the same time the reinforcing bars of the foundations and the fasteners.
I will definitely add some real concrete irons.
but I am not inventing anything here, it is exactly the system used for large antennas.



RimaNTSS

Super Moderator
Staff member
Joined
Jan 7, 2009
Messages
5,195
Reaction score
5,542
Points
113
Age
55
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga
it is exactly the system used for large antennas.
That how it looks like, what I made for my antenna. Did not dig deep though but wide.


Attachments

  • IMG_20160607_150244.jpg
    249.8 KB · Views: 28

zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france

RimaNTSS

Super Moderator
Staff member
Joined
Jan 7, 2009
Messages
5,195
Reaction score
5,542
Points
113
Age
55
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga

zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
Forgot to mention, that was for my 4.6m Andrew antenna.
What size are nuts and threaded rods?
Do you have a photo of that in the concrete?


RimaNTSS

Super Moderator
Staff member
Joined
Jan 7, 2009
Messages
5,195
Reaction score
5,542
Points
113
Age
55
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga
What size are nuts and threaded rods?
Do you have a photo of that in the concrete?
Sure. I have posted some photos HERE more than 5 years ago.


zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france

zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
hole finished and ready for tomorrow.

IMG_7123 (Copier).JPG
IMG_7125 (Copier).JPG

Concrete iron reinforcement for the threaded rod structure

IMG_7128 (Copier).JPG


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
32,575
Reaction score
7,388
Points
113
Age
57
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
You can drop a lot of loose hardcore into that hole once the studding is inserted , to save a large amount of concrete pouring.


zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
it's not great but it's my best ...
I'm running out of concrete as you can see.
at the end, this makes 180kg of concrete.



Satfaca

Member
Joined
Aug 2, 2008
Messages
151
Reaction score
120
Points
43
Location
Melmac (46N, 14.5E)
My Satellite Setup
Prodelin PFA 340 cm + H2H motor + Seavey ESR-124H Corotor
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
DM920 + Octagon SF8008 + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
No compromise with my foundation.
120 kilos of steel & 7 cubic meters of concrete poured from a truck. I can sleep tight at least. :)



edbe

Regular Member
Joined
Nov 23, 2008
Messages
83
Reaction score
2
Points
8
Age
49
My Satellite Setup
.
My Location
Eygelshoven NL
nice project


zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
New step today.
This weekend maybe the kingpost will be on it :)



zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
Clean and ready


zorrin

Member
Joined
Nov 12, 2008
Messages
170
Reaction score
158
Points
43
Age
48
Location
France
Website
www.facebook.com
My Satellite Setup
Channel Master 1m20 Fixe+Twin LNB
NEOVIA flat antenna Twin for 28,2°E
NEOVIA flat antenna Twin for 19°E
80cm+Twin FOR 5°W
2X DiSEqC 4to1
Samsung TV 40ES7000 (DVB S2 tuner)+FRANSAT CAM
SONY 65" (DVB S2 tuner)+FRANSAT CAM
PC with TBS6981 DVB S2
Next... 2x motorized channel Master 1m20, one Ku, one C/Ku
My Location
france
with this sunny day I was able to install the base and the antenna and cables.
The template system worked really well.


IMG_7145 (Copier).JPG
IMG_7144 (Copier).JPG

My setting is 89.95 ° North / South and 90 ° East / West, not too bad

I finished the kingpost part with this insert.

IMG_7148 (Copier).JPG
IMG_7149 (Copier).JPG

Now the antenna

IMG_7150 (Copier).JPG
IMG_7158 (Copier).JPG

IMG_7153 (Copier).JPG

and now after 10 years without doing it and no more markings on the antenna, it is now necessary to align it ...
First thing the motor is too old and stuck, I will put a new one.
But not today ! :)
