Hi all,
I see something strange here. My TBS cards (6983 and 6522) are registering some kind of interference. either it is something wrong with my antenna or it is something wrong with intelsat1002. Can someone verify that?

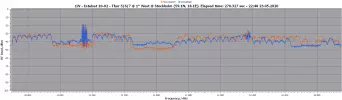

first screenshot: with 6983 from 28/04/2020
second one from today with 6983
third one from today with 6522

is there a new transponder? it looks like a transponder with 6522 and 6983 is going crazy there..


S

s-band

Contributor
Messages
858
My Satellite Setup
1.5m IRTE PF, Octagon OSLO external Ref., TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El
My Location
SE UK
Initially it looked like IF interference since it is on both polarisations. However, the frequencies, with fur, are slightly different at 1425 low band and 1585MHz high (assuming standard LNB . To check for local interference, try connecting an antenna directly to the card input (even a bit of wire). Is the interference always in the same place? Is there an intermittency in the LNB feed.

You would see more if you set the vertical axis to fill the screen and more detail if set to 1MHz steps, especially the narrow band and GS signals around 11100V. I've added a spectrum of those. One or 2 are burst mode.
I don't trust the scan from the chip set used in the 6522.

0.8W_11100+-100V_24-5-20.PNG0.8W_11100V.PNG0.8W_10.7-11.7_24-5-20.PNG0.8W_11.7-12.75_24-5-20.PNG

F

FC GD

Member
Messages
69
My Satellite Setup
TBS6983 Professional DVB-S2 Dual Tuner PCI-e Card, TBS6522 Multi-standard Dual Tuner PCI-e Card, EyeTV Netstream 4Sat, EyeTV Netstream 4Sat (refresh) and Netstream Sat, EyeTV Sat CI, Hybrid (2008, International), EyeTV Sat Free
SDR: RSP1, Adalm-Pluto
Antenna: SelfSat H50D2
Mac:EyeTV 3, SAT>IP Viewer, Dvblogic, eyetvCamd
PC:DVB Viewer, EBS Pro, Crazyscan, IQ monitor, TS reader
Pay Tv: Mtel, Telia
My Location
Stockholm
Something is interfering
Initially it looked like IF interference since it is on both polarisations. However, the frequencies, with fur, are slightly different at 1425 low band and 1585MHz high (assuming standard LNB . To check for local interference, try connecting an antenna directly to the card input (even a bit of wire). Is the interference always in the same place? Is there an intermittency in the LNB feed.

You would see more if you set the vertical axis to fill the screen and more detail if set to 1MHz steps, especially the narrow band signals around 11100V. I've added a spectrum of those. One or 2 are burst mode.
I don't trust the scan from the chip set used in the 6522.

View attachment 130727View attachment 130728View attachment 130729View attachment 130730

Today it is only on vertical and moved to 12200-12400
this interference is something really new, it came suddenly yesterday from nowhere.


Last edited:
pontiend

pontiend

Contibruter
Messages
2,823
Location
South Yorkshire
My Satellite Setup
See Signature
My Location
south yorkshire
A scan I took here in South Yorkshire that I took at about 10am.
TBS6983 105 cm Dish.
cs 1 w.jpg

F

FC GD

Member
Messages
69
My Satellite Setup
TBS6983 Professional DVB-S2 Dual Tuner PCI-e Card, TBS6522 Multi-standard Dual Tuner PCI-e Card, EyeTV Netstream 4Sat, EyeTV Netstream 4Sat (refresh) and Netstream Sat, EyeTV Sat CI, Hybrid (2008, International), EyeTV Sat Free
SDR: RSP1, Adalm-Pluto
Antenna: SelfSat H50D2
Mac:EyeTV 3, SAT>IP Viewer, Dvblogic, eyetvCamd
PC:DVB Viewer, EBS Pro, Crazyscan, IQ monitor, TS reader
Pay Tv: Mtel, Telia
My Location
Stockholm
Initially it looked like IF interference since it is on both polarisations. However, the frequencies, with fur, are slightly different at 1425 low band and 1585MHz high (assuming standard LNB . To check for local interference, try connecting an antenna directly to the card input (even a bit of wire). Is the interference always in the same place? Is there an intermittency in the LNB feed.

You would see more if you set the vertical axis to fill the screen and more detail if set to 1MHz steps, especially the narrow band and GS signals around 11100V. I've added a spectrum of those. One or 2 are burst mode.
I don't trust the scan from the chip set used in the 6522.

View attachment 130727View attachment 130728View attachment 130729View attachment 130730
A scan I took here in South Yorkshire that I took at about 10am.
TBS6983 105 cm Dish.
View attachment 130734

Thank you very much to both of you..
