launch KazSat-3

solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,400
Reaction score
3,648
Points
113
Age
53
My Location
Tel Aviv, Israel
photo of launch


Attachments

  • 1.jpg
    118.7 KB · Views: 37
  • 2.jpg
    143.5 KB · Views: 35
  • 3.jpg
    58.4 KB · Views: 38

adonis1

Specialist Contributor
Joined
Mar 2, 2008
Messages
1,570
Reaction score
1,523
Points
113
Age
67
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3 & M4
My Location
Syros island - Central Aegean sea - Greece
KazSat 3 (58.5°Ε) & Luch-5V.jpg

just bigger resolution (with another bird!!.) .


adonis1

Specialist Contributor
Joined
Mar 2, 2008
Messages
1,570
Reaction score
1,523
Points
113
Age
67
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3 & M4
My Location
Syros island - Central Aegean sea - Greece

Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
That's a nice launch


tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
Last 3 days KazSat-3 is moving by circle around 81.5e, will be stabilized soon: http://www.n2yo.com/?s=39728
Seems this postion will be used for in-orbit-testing, then he go to working position 58.5°e.


hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
That didn't appear to be an in-orbit testing location, after all.
KazSat-3 should arrive directly to its destination at 58.5° East tomorrow.


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Any footprints for it?


hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
That footprint has a very tentative shape! :rolleyes:


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Yes.... Either way... Not a hope in hell of getting this in UK


tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
KazSat-3 has arrived its destination position 58.5°E. No signs of testing yet.


mar-val

Regular Member
Joined
Oct 11, 2012
Messages
205
Reaction score
372
Points
63
My Satellite Setup
DR.HD F15,TBS 6983,dishes 70-220
My Location
Slovakia,Zilina
Maybe the first test carrier? 10940V.


tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia

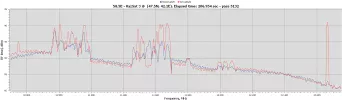

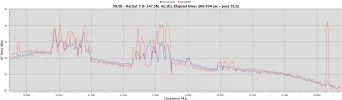

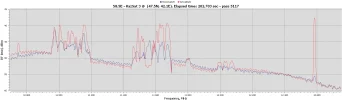

Test carrier appeared on 12584 V ten minutes ago.

P.S. Next test carrier on 12665 V.


Attachments

  • 58.5E-RFScan_5117.png
    113.1 KB · Views: 38

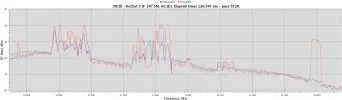

  • 58.5E-RFScan_5128.png
    111.9 KB · Views: 34
  • 58.5E-RFScan_5132.png
    112.2 KB · Views: 34
Last edited:

mar-val

Regular Member
Joined
Oct 11, 2012
Messages
205
Reaction score
372
Points
63
My Satellite Setup
DR.HD F15,TBS 6983,dishes 70-220
My Location
Slovakia,Zilina
I can see a peak on 10962H,hope it is Kazsat.
My previous post(10940)was mistake.


mar-val

Regular Member
Joined
Oct 11, 2012
Messages
205
Reaction score
372
Points
63
My Satellite Setup
DR.HD F15,TBS 6983,dishes 70-220
My Location
Slovakia,Zilina

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,894
Reaction score
2,650
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Provisional Frequency Plan for Kazsat 3:


Attachments

  • KazSat 3.jpg
    KazSat 3.jpg
    86 KB · Views: 37

hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
It looks like that frequency plan (make by our member Marcus_21) is correct!

The rcsc.kz link I mentioned above, now shows more info. Google translation in English:
http://translate.google.com/translate?&sl=ru&tl=en&u=http://www.rcsc.kz/index.php?option=com_content&view=category&layout=blog&id=65&Itemid=324&lang=en&sandbox=1

The bands 10950...11200 V, 11450...11700 V, and 12500...12750 H are the narrow Steerable beam on Kazakhstan.
The band 10700...10950 H/V is the wider Fixed beam.

Good to see the narrow beam reaches Eastern Europe already!


tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia

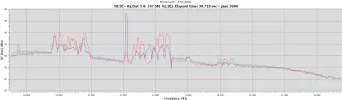

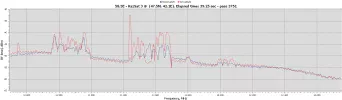

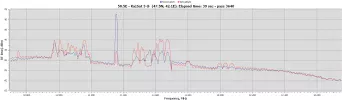

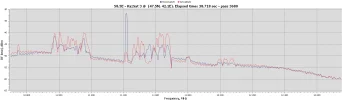

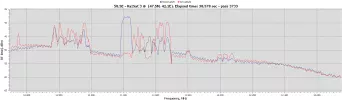

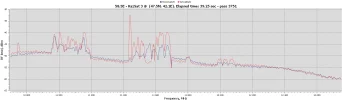

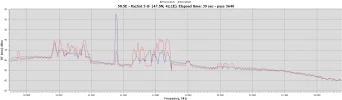

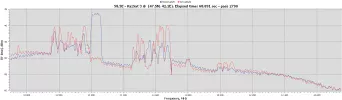

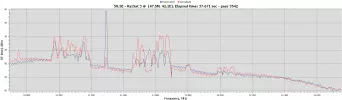

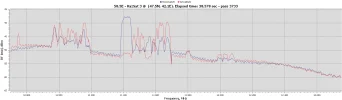

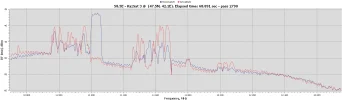

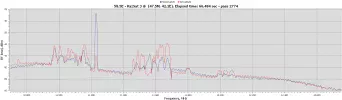

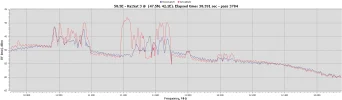

Sorry guys, but Provisional Frequency Plan is partially correct only. I have watched to my spectrums from 18 June up today, and this is real tested frequensies list:

10720H (approximately by spectrum picture)
10760H
(approximately)
10802H
(approximately)
10844H
10886H
10928H

10720V
(approximately)

10952V
(approximately)
11035V
(approximately)
11110V
(approximately)
11190V
(approximately)

11228H
(approximately)
11288H
(approximately)
11355H
(approximately)
11416H
(approximately)

11205V
(approximately)
11270V
(approximately)
11380V
(approximately)
11440V
(approximately)

12544V
(approximately)
12584V
12665V
12705V


Thus KazSat-3 has 11200-11450 MHz subband instead of 11450-11700 MHz.
Also 23 of 28 TPs are already tested, they have to test last 5 TPs of vertical polarization in 10700-10950 MHz subband.

I've posted all my spectrums on Russian-spoken forum http://www.sat-digest.com/forum/viewtopic.php?t=39272 . Will post all spectrum here too, for all interested people.


Attachments

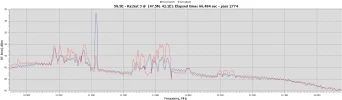

  • 58.5E-RFScan_2774.png
    95.5 KB · Views: 30
  • 58.5E-RFScan_2790.png
    111.8 KB · Views: 34

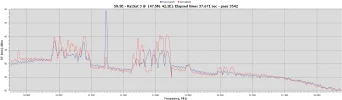

  • 58.5E-RFScan_3542.png
    102.6 KB · Views: 26

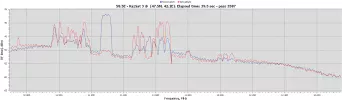

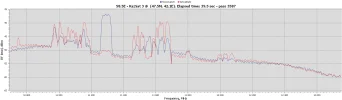

  • 58.5E-RFScan_3587.png
    100.5 KB · Views: 26
  • 58.5E-RFScan_3640.png
    88.7 KB · Views: 30

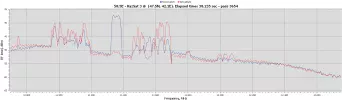

  • 58.5E-RFScan_3654.png
    100.5 KB · Views: 27
  • 58.5E-RFScan_3680.png
    92.7 KB · Views: 26
  • 58.5E-RFScan_3733.png
    100.2 KB · Views: 29
  • 58.5E-RFScan_3751.png
    92.9 KB · Views: 26

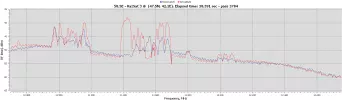

  • 58.5E-RFScan_3784.png
    99.9 KB · Views: 25
