Unknown satellite switch box?

C

cardiff

Regular Member
Messages
61
Location
Brittany
My Satellite Setup
Laminas As 1800, multifocus 14 LNB
My Location
France
Hello,

Sorry if my post is in wrong place

I came across a switch box (probably in 12 V)
I don't remember how it was used, I know I used it probably over 15 years or more!

this is an Anttron brand switch ref: A930815S
ANTTRON 1.jpg
ANTTRON 2.jpg

in french LNB input / Demodulator output

ANTTRON 3.jpg

Connection from left to right LNB - RECV - ON / OFF

If someone recognizes or remembers this type of switch box I am looking for what it could have been used for?

Thank's

Cardiff

PaulR

PaulR

Dazed and Confused Admin
Staff member
Messages
16,787
My Satellite Setup
-----------See sig-----------
My Location
Wirral, NW UK and Vaucluse, France.
Looks like it might be an amplifier to me. Although more like one for a terrestrial aerial rather than a satellite LNB.

ozumo

ozumo

Member
Messages
318
My Satellite Setup
4x zone 2, 3x channel master 90cm, 1x channel master 1.2m
My Location
South Durham
Could be a frequency up/down converter like an ADX Plus type device that was used to receive Astra 1D in the analogue days.

C

cardiff

Regular Member
Messages
61
Location
Brittany
My Satellite Setup
Laminas As 1800, multifocus 14 LNB
My Location
France
It's not for terrestrial aerial, I'm sure, I thought it was connected to an Echostar SR 8700 or sr 5500/6500

jeallen01

jeallen01

Specialist Contributor
Messages
4,694
My Satellite Setup
See Signature
My Location
Somewhere in England (possibly?)!
It's not for terrestrial aerial, I'm sure, I thought it was connected to an Echostar SR 8700 or sr 5500/6500
The fact that it has screw terminals for the RF cables strongly suggests to me that it IS a 2-way switch (maybe with an amp as well?) for terrestrial antenna cables - Sat cable connections have used F-connectors for as long as I have been using Sat receivers and dishes (since 1991 IIRC :-rofl2 ), and that included the ADX PLUS and similar devices!

C

cardiff

Regular Member
Messages
61
Location
Brittany
My Satellite Setup
Laminas As 1800, multifocus 14 LNB
My Location
France
close-up connection
1_optimized.jpg 2_optimized.jpg 3_optimized.jpg back.jpg RMS-11X.jpg

Last edited:
Llew

Llew

cerca trova...
Staff member
Messages
15,093
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
The fact that it has screw terminals for the RF cables strongly suggests to me that it IS a 2-way switch (maybe with an amp as well?) for terrestrial antenna cables - Sat cable connections have used F-connectors for as long as I have been using Sat receivers and dishes (since 1991 IIRC :-rofl2 ), and that included the ADX PLUS and similar devices!

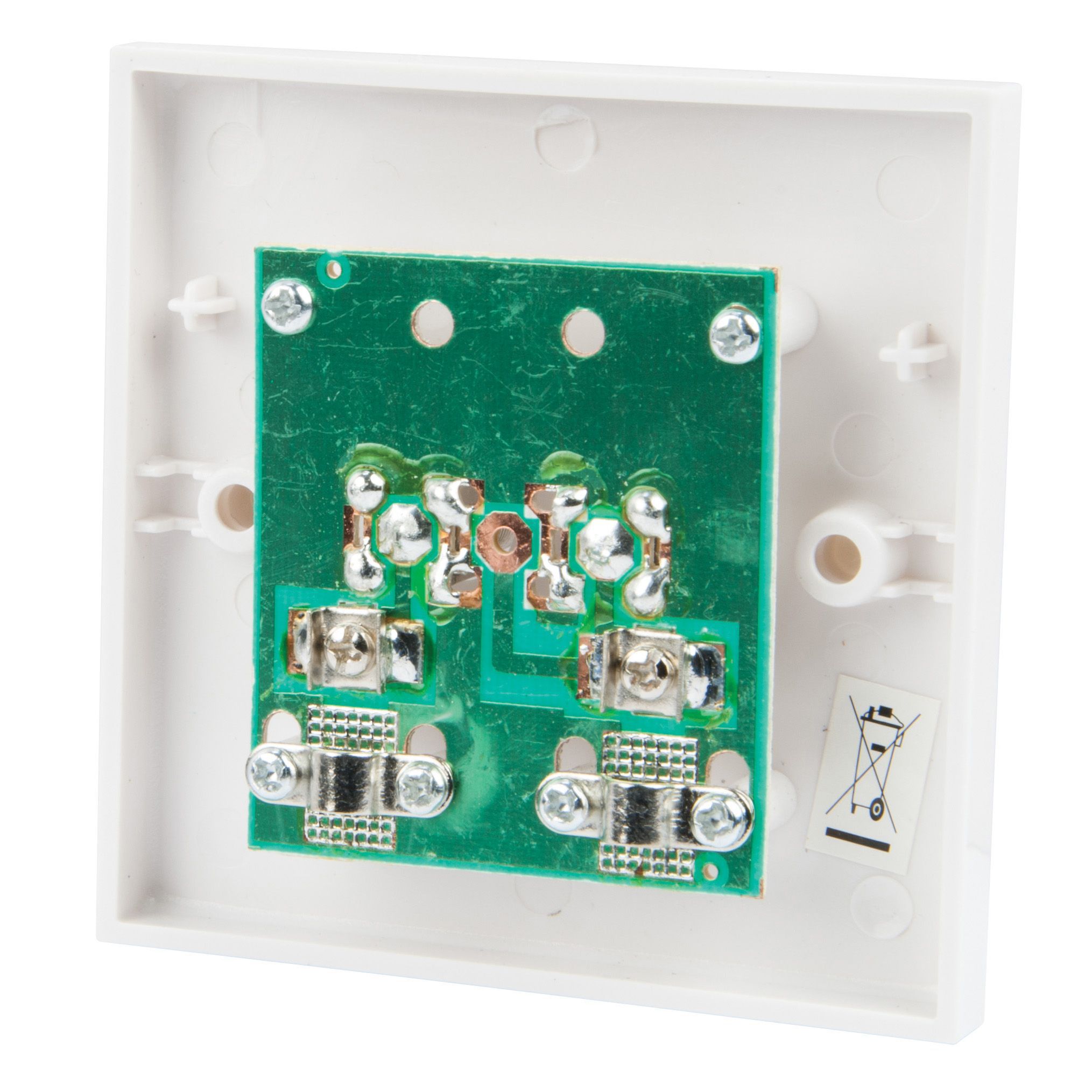

B&Q sell screw-type F-connector face plates. No idea if they do the biz efficiently enough. I don't suppose a professional would use it, maybe OK for a Saturday morning quick fix for a neighbour, though using one with F-connector sockets would obviously be easier.


rolfw

rolfw

Believe it when I see it Admin.
Staff member
Messages
37,955
My Satellite Setup
Technomate 5402 HD M2 Ci, DM7000s, Transparent 80cm Dish, Moteck SG2100 DiseqC motor, lots of legacy gear. Meters: Satlook Digital NIT, Promax HD Ranger+ spectrum analyser.
My Location
Berkshire
Most new builds and apartment blocks will have modules with saddle and clamp for satellite, but they are not normally open like that, they'll be screened.

From Cardiff's enlargement's, it appears to be a smart priority switch, with default receiver and secondary option.

jeallen01

jeallen01

Specialist Contributor
Messages
4,694
My Satellite Setup
See Signature
My Location
Somewhere in England (possibly?)!
dreambox1959

dreambox1959

Member
Messages
68
Location
FRANCE
My Satellite Setup
humax2000 / technomate 7100
My Location
france

so, it looks like a frequency converter, possibly upconverting VHF to UHF

it s an up or down converter : its a device that existed in 80s for moving a part of spectrum band like with telecom1b (12500-12750)
or for receiver imported from USA witch had 950-1450mhz range, to reach 1450-1950mhz 500mhz lower .


Dave5118

Dave5118

Member
Messages
261
My Satellite Setup
1.5m Gibertini with IBU Twin
TBS 6903/6922 with EBSPro
Gigablue Quad 4K(S2X)
Edision OS Nino Pro
Starsat 2000HD Hyper
Sky Q Silver
Sky minidish with Sky Q Hybrid LNB
My Location
Nr Manchester UK
From google, wikselaar sat trading used to be a 'partner' for Canal Digitaal, wonder if this was used when the first astra sat( forget which one) was launched which extended the KU band down to 10.70 from 10.95. There weren't too many receivers/LNBs that could receive the 'new' frequencies at the time without something like this. Possibly Canal Digitaal moved to these frequencies at that time.
