5G interference, new LNB?

anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
at the moment I have solved the 5 g problem with the 5G maximun filter lnb
I bought them on Ali....
they filter down to 3.7 and that's fine with me for now
I was completely blind to all of the C-band before


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
there are 3 models 1 out 2 out 4 outs I don't like the 4 out because it has 2 O.L in my opinion 1 O.L for polarity and consequently difficult to manage with a decoder or pciE card I got the 1 out model


Attachments

  • 2023-01-15 20_51_26-Banda LNB C con filtro 5G per Antenna parabolica satellitare a banda C._ _...png
    2023-01-15 20_51_26-Banda LNB C con filtro 5G per Antenna parabolica satellitare a banda C._ _...png
    328.3 KB · Views: 43

Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
770
Reaction score
1,175
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Orbitron SX-10 310 cm + H2H motor + ADL RP2-CPOR feed
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
Octagon SF8008 (Twin & Combo) + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
I just thought to share this interesting and straight-forward explanation of the problem.


SimonE

Regular Member
Joined
Feb 26, 2015
Messages
353
Reaction score
349
Points
63
Age
79
My Satellite Setup
1.2m CM dish with elevation jack, Supermount 1224 H-H rotator, Octagon SX88+, DR.HD D15, GT Media Combo, Ku PLL LNB, C Band: Titanium C1W-PLL, Ka Band: XMW R9216AF with FD9000 feedhorn, Inverto Saorsat LNB and Inverto Ka/Ku LNB . Zone 2 dish pointing at 28E with Octagon SF8008.
My Location
Gloucestershire, UK
Here in the West of England, all signals below 3.715Ghz are covered in 5G interference wherever I point the dish.


John

Enthusiast.
Joined
Jan 1, 2000
Messages
3,933
Reaction score
6,021
Points
113
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
Here in the West of England, all signals below 3.715Ghz are covered in 5G interference wherever I point the dish.

Sounds like your surrounded with the things Simon - i'm pretty sure looking at web data that i just have the one 5G tower about a 1/4 mile away but the thing is more or less in direct line of sight when the Cband dish is pointed from about 40.5°W to 71°W. At the moment anything from 40.5°W going Eastwards is escaping the problem but no doubt it will change . I'm trialing double 5G filtering at the moment using an AliEx External 5G filter coupled onto cheap Chinese 5G lnb's but i'm still struggling with a 5G signal at 3.685GHz even through 2 x filters which i think one of the reasons is that the stop band of the filters is just not quite in the right place for want of a better description and it's letting a chunk of 3.685GHz through the net. I could use a filter that does cover the unwanted frequency but at the cost of limiting the receive fx band to 3.8GHz upwards. Myself and moonbase were saying recently that the present channel structure frequencies will be shunted further up band if possible and possibly also into the 4.5-4.8GHz part of the band if uplink / downlink equipment and the rest will allow it.


garyX

New Member
Joined
May 16, 2021
Messages
5
Reaction score
6
Points
3
Age
61
Location
Hanau,Germany
My Satellite Setup
PFA 1,5m 85°Ost- 58°West ,Octagon SF 8008 2xS2X ,TX55-GZW1004, PR1200 , 2 Kaonsat C-band 13K LNBs- schielend +- 7°, circ. mit DiY -PWplatte , MTI- AP8-TFT Ku , Superjack36V Motor mit NTC-Softanlauf 24 Zoll
My Location
Hanau near Frankfurt, Germany
Sounds like your surrounded with the things Simon - i'm pretty sure looking at web data that i just have the one 5G tower about a 1/4 mile away but the thing is more or less in direct line of sight when the Cband dish is pointed from about 40.5°W to 71°W. At the moment anything from 40.5°W going Eastwards is escaping the problem but no doubt it will change . I'm trialing double 5G filtering at the moment using an AliEx External 5G filter coupled onto cheap Chinese 5G lnb's but i'm still struggling with a 5G signal at 3.685GHz even through 2 x filters which i think one of the reasons is that the stop band of the filters is just not quite in the right place for want of a better description and it's letting a chunk of 3.685GHz through the net. I could use a filter that does cover the unwanted frequency but at the cost of limiting the receive fx band to 3.8GHz upwards. Myself and moonbase were saying recently that the present channel structure frequencies will be shunted further up band if possible and possibly also into the 4.5-4.8GHz part of the band if uplink / downlink equipment and the rest will allow it.

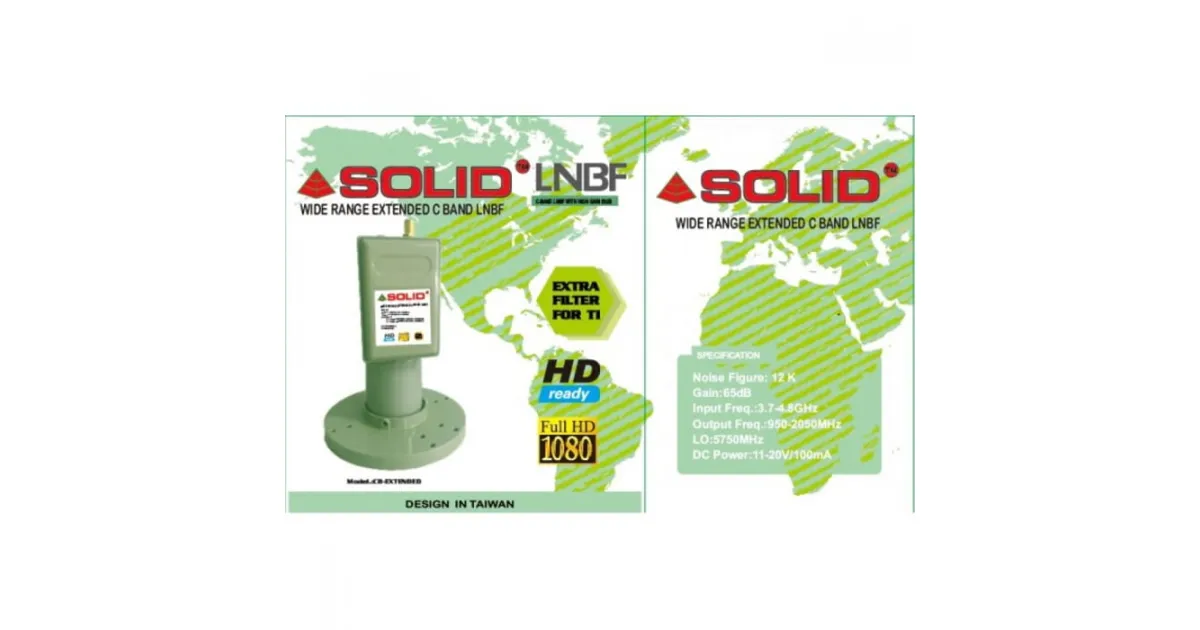

This LNB might be interesting. It has the extended frequency range with an additional 4.5 - 4.8 Ghz and a 'TI' filter not '5G' ... Unfortunately only available in India



anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
This LNB might be interesting. It has the extended frequency range with an additional 4.5 - 4.8 Ghz and a 'TI' filter not '5G' ... Unfortunately only available in India

forget these lnbs
I have 3 and all three suffer from the 5G signal
I replaced them because I couldn't see any channels
the tbs stored them the tp but they were not visible
I memorized the tp at 40 west above 4.5 ghz
with strong signal but no picture

I have 3 for sale if anyone is interested
and maybe even 4
get it from india


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,051
Reaction score
8,741
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
forget these lnbs
I have 3 and all three suffer from the 5G signal
I replaced them because I couldn't see any channels
the tbs stored them the tp but they were not visible
I memorized the tp at 40 west above 4.5 ghz
with strong signal but no picture

I have 3 for sale if anyone is interested
and maybe even 4
get it from india
That earlier link from satfaca (Tracksat) appears to be peddling similar items under the 'SOLID' rebrand.


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
what has been linked does indeed allow 5G to pass
that of Satfaca is another model with a 5 G filter


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,051
Reaction score
8,741
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
what has been linked does indeed allow 5G to pass
that of Satfaca is another model with a 5 G filter
More than one product, pure promotion.

Prices are no higher than 25Euros




with this charming caveat

Warranty: There is no warranty on LNB, Switches, and Satellite dB meters.


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
attention DO NOT BUY this type of LNB which is bad the 5G signals on the 3600 pass and destroy the signal above the 3700

tested today BAD product



Attachments

  • 2023-02-24 21_51_53-Screenshot 2023 02 05 at 19 58 32 18 57€ Lnb ricevitore satellitare univer...png
    2023-02-24 21_51_53-Screenshot 2023 02 05 at 19 58 32 18 57€ Lnb ricevitore satellitare univer...png
    598.1 KB · Views: 26
Last edited:

anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
surely i will send bad report to this bad quality product
this way they will stop selling products that can't keep their promises
and if you do it too, no one will buy this product anymore
I am very angry


ViaHussun

Member
Joined
Apr 11, 2010
Messages
157
Reaction score
159
Points
43
Age
90
My Satellite Setup
150 cm offset Gibertini antenna
Inverto Premium Twin LNB
TBS 5520SE TV Card
My Location
Bursa , TURKEY
there are 3 models 1 out 2 out 4 outs I don't like the 4 out because it has 2 O.L in my opinion 1 O.L for polarity and consequently difficult to manage with a decoder or pciE card I got the 1 out model
How is this lnb? Have you tested it?
What is the frequency range it operates in?
How is the signal reception?
Do you suggest we buy it?
Can you share the product link?


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,051
Reaction score
8,741
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Do you suggest we buy it?
If you pay by credit card, purchase three/four plus shipping, and it comes to over 100 Euros, you could get a refund through their complaints procedure.


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
How is this lnb? Have you tested it?
What is the frequency range it operates in?
How is the signal reception?
Do you suggest we buy it?
Can you share the product link?
one output maximun is better than Bwey (red)
5 G signals are filtered better, even if some noise is seen


John

Enthusiast.
Joined
Jan 1, 2000
Messages
3,933
Reaction score
6,021
Points
113
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
More than one product, pure promotion.

Prices are no higher than 25Euros




with this charming caveat

Warranty: There is no warranty on LNB, Switches, and Satellite dB meters.

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

I'm at this level of the game at the moment :p

Cheap 5G filtering.. Extra High..jpg


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,051
Reaction score
8,741
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

I'm at this level of the game at the moment :p

View attachment 147786
You need a fence.


Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
770
Reaction score
1,175
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Orbitron SX-10 310 cm + H2H motor + ADL RP2-CPOR feed
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
Octagon SF8008 (Twin & Combo) + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Can you provide further details as to what difference the filter really makes? Do you have any visual documentation of the spectrum?
I would really like to be certain of the benefit before I get into such investment. I am afraid that with proximity of the 5G transmitters & the interference I get there is no magic device that could help.


John

Enthusiast.
Joined
Jan 1, 2000
Messages
3,933
Reaction score
6,021
Points
113
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
You need a fence.

Iv'e got a metal railing one across the road 10mtrs away but it's got big holes in it :D .....BUT, the theory is right. If i look at 70°West on the 2.2PF with the narrow beamwidth and with the low inclination i get some degree of 5G showing on the Promax - I think my beamwidth/boresight is just skimming over the 5G emitted radiation from the tower a 1/4 mile away - IF i lower the dish a fraction, loosing signal from the satellite, it effectively brings my dish beamwidth down to point more directly at the tower instead of just over the top of it and the 5G interference shown on the promax display almost doubles in strength. Hmmmmmm


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
putting the nb with 5 G filter and then also inserting the separate 5 G filter you get a doubling of the filter value
however I must also say that if 5G ends at 3800 these products are useless because they filter at 3700
