Es’hail 2 25.5e

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,017
Reaction score
8,724
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
are the GT Media software site offerings problematic ?


Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,125
Reaction score
11,571
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
Yup - thats the one I tried. I also tried renaming the flash the same as the existing one but nada


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,017
Reaction score
8,724
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Send me the bin files and I'll try them tomorrow.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
two radio amateurs talking to each other
each with its own frequency


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
as often on Sundays, there is a lot of action today among amateur radio stations.
10494 500.jpg10498 333.jpg10499 333.jpg


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria

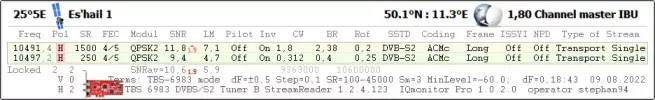

Not easy to get a picture with sr 250 , today i succeeded
25°5E_2208091843.jpg25°5E_10497_H_4323.jpg25°5E_2208091843_10490-10508 H .jpg


EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
826
Reaction score
772
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
826
Reaction score
772
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
PS: Interesting plugin, it's a shame that it doesn't read data from the internal tuner, but only from the BATC websocket


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
It is now possible to watch amateur radio transmissions on Es'hail 2 with several receivers.
Edision Mio4K with the latest version of treiber and TNAP5 (up to sr500), V9prime also up to sr 333.
With a suitable Uclan Ustym pro 4k converter, it can also receive them (up to sr 250).
However, not everything is visible with these receivers. Some transmissions are transmitted in chroma 4.4.4.
In this case, only a computer equipped with the appropriate programmes and codecs can view these transmissions.444-vert.jpg


jsda30

Member
Joined
Aug 9, 2022
Messages
90
Reaction score
20
Points
8
Age
59
My Satellite Setup
edision os mio 4k
My Location
spain
It is now possible to watch amateur radio transmissions on Es'hail 2 with several receivers.
Edision Mio4K with the latest version of treiber and TNAP5 (up to sr500), V9prime also up to sr 333.
With a suitable Uclan Ustym pro 4k converter, it can also receive them (up to sr 250).
However, not everything is visible with these receivers. Some transmissions are transmitted in chroma 4.4.4.
In this case, only a computer equipped with the appropriate programmes and codecs can view these transmissions.View attachment 153891
hi stephan!
finally i bought a special lnb
with tnpa-5 not work edision os mio
ill check when arrived here with edision and also with sf8008


ozumo

te wo tsuite
Staff member
Joined
May 26, 2020
Messages
5,297
Reaction score
2,686
Points
113
My Satellite Setup
Raven mk2 zone 2 x4, Channel Master: 90cm x3, 1.2m x2, 1.8m PF. CM polar mount x2, Az/El x3.
My Location
South Durham
However, not everything is visible with these receivers. Some transmissions are transmitted in chroma 4.4.4.
In this case, only a computer equipped with the appropriate programmes and codecs can view these transmissions.
The same for transmissions with VVC video.

Which of your receivers performs best when QO100 is busy or when transmissions are close together/adjacent to the beacon? I have a V9 Prime but find reception with an SDR to be much more reliable.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
Which of your receivers performs best when QO100 is busy or when transmissions are close together/adjacent to the beacon? I have a V9 Prime but find reception with an SDR to be much more reliable.
I also have a V9 Prime but the Uclan Ustym 4k Pro is much faster at locking signals, including sr 250 (I work with OpenPli).
but there's always a problem when the signals are too close together.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
And a bit of action with the radio amateurs at midday.
10497 H 249 DG4DUL
10497 H 332 DL3VPZ
10498 H 332 DL4DI
10499 H 332 DLBAR


jsda30

Member
Joined
Aug 9, 2022
Messages
90
Reaction score
20
Points
8
Age
59
My Satellite Setup
edision os mio 4k
My Location
spain
I also have a V9 Prime but the Uclan Ustym 4k Pro is much faster at locking signals, including sr 250 (I work with OpenPli).
but there's always a problem when the signals are too close together.
hi stephan... hope thats fine
i have octagon sf8008, with which image of openpli you used? last version?


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
Last edited:

stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
913
Reaction score
1,455
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
i installed openpli 9 last version on my octagon sf8008 and no get those channels
don't forget that these channels always have a very short transmission time.
here's what worked at 18:34 GMT
