Eutelsat 10B

[Andreasgrdx]

These are the footprints of new satellite Eutelsat 10B (10.0° East) which have publishèd in website Satbeams [Global , S001 - S137 (!) , Wide] .

Eutelsat 10B (10.0° East)
Satbeams

Satbeams - World Of Satellites at your fingertips

Satbeams - Satellite footprints, news and charts

www.satbeams.com

Satbeams - World Of Satellites at your fingertips

Satbeams - Satellite footprints, news and charts

www.satbeams.com

Global

Satbeams - World Of Satellites at your fingertips

Satbeams - Satellite footprints, news and charts

www.satbeams.com

S001

Satbeams - World Of Satellites at your fingertips

Satbeams - Satellite footprints, news and charts

www.satbeams.com

S137

Satbeams - World Of Satellites at your fingertips

Satbeams - Satellite footprints, news and charts

www.satbeams.com

Wide

Satbeams - World Of Satellites at your fingertips

Satbeams - Satellite footprints, news and charts

www.satbeams.com

Eutelsat 10B (10.0° East) has 116 Spot beams !



[hvdh]

Thanks @Andreasgrdx, at satbeams the spot beams are all listed as Ka-band, and shows only one for Ku-band (wide beam).
Something seems not quite correct or complete yet.
Edit 2: actually Eutelsat 10B has no Ka-band at all! Assuming all are Ku-band, S104 fits the ZAP Viva reports best.



[italy2006]

it means spot beams will used for feeds?



[MCelliotG]

So, this is it!!! Of course spot beams can be used for any purpose.



[ocean04]

12735V 4000 ok here 11.8db, 3m + os mio



[ttalex]

The band mistake is corrected now. E10B is of course Ku-band HTS bird.
@hvdh thanks for heads up on this!



[hvdh]

The band mistake is corrected now. E10B is of course Ku-band HTS bird.
@hvdh thanks for heads up on this!

Oh you're here too! Did you also get my email, or is the address outdated (I replied on years old chat)?



[dreamsat]

10821 H 26760 DVBS2/QPSK 1/4 i think it is DVBS2X



[dreamsat]

two new feeds

11303 V 7200 DVBS2/8PSK 3/4
11312 V 7200 DVBS2/8PSK 3/4



[zinonino]

two new feeds

11303 V 7200 DVBS2/8PSK 3/4
11312 V 7200 DVBS2/8PSK 3/4

@dreamsat is this is with 3.7m dish ?



[Analoguesat]

11303V & 11312V both received in Scottish Borders with reasonable signal strengths. 11303V is fta the other one is encrypted



92% / 10.5dB


EDIT - West Ham getting hammered 4-0 at Bayer Leverkusen.



[dreamsat]

@dreamsat is this is with 3.7m dish ?

yes, with 3,70m



[zinonino]

yes, with 3,70m

Interesting with 3.70.
Here in south-east europe 11220, 11262, 11330 signal more stong with 1.8m dish, but 10723 here is low.



[EnoSat]

small presentation



[satesco]

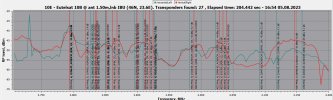

I explored the C-band signal and muxes on Eutelsat 10B with a 1.50m antenna. Compared to Ku-band, it seems better than Eut A, maybe because it uses the part with less interference (3800-4200 RL).
4147 R,68500,1/2,S2- Data, new



[italy2006]

where is the location of reception?



[satesco]

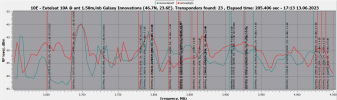

In north-western Romania. Here is what I could receive in C-band from Eutelsat 10A in June this year.
I don't know if it matters what signal I had before, but comparing the signal with a 1.50m antenna between the two satellites 10A and 10B, beyond the massive interferences I have in my area, I say that it increased by at least 1dB on some muxes by 2 dB.
If you don't have interference, the chances of locking more signal/muxes on Eutelsat 10B increase enormously, even with a small antenna like mine.



[dreamsat]

New is 10733 H 33000 DVBS2/16APSK 2/3



[satesco]

This mux is activated now to be a test for Eumetsat(?)



[EnoSat]

In 2022, they planned to use 10780 H

they changed in July 2023
