Advice Needed Receivers with the lowest Symbol Rate?

[frankviana]

SF 8008 tune and lock SR 480








osmini4k, no signal:



I think limit for osmini4k is until SR 500



[MCelliotG]

Anyhow this is better than before. How about the radio IP feeds on 30W?



[moonbase]

Is there a possibility of integrating these driver modifications into a downloadable image for the Edision OS MIO?



[ocean04]

Today traveled to my "summer cottage" where I have Vu+ Zero 4K. Quite a lot of snow here in Finland btw.

Took me only about 5 minutes to patch the driver binary for 10492H and it's working. Interesting because Vu+ Zero4k has Silabs tuner.

But I guess it's the same as Vu+ Uno4K, this device has problem with low symbolrate.



[MCelliotG]

And a silabs tuner where they deactivated the SNR in db. Their psychotic mentality....



[suedschwede]

@ocean04

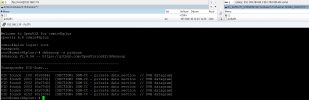

e2_changes_20231223.diff getestet im OpenATV7.4 with SF8008, Signal just above zero is displayed



[stephan94]

The Ocean 04 improvements work perfectly with the TNAP-5 image from El bandido
with a universal LNB 10492 is received,
non-locked signals are indicated
SRs below 1000 are now received (I don't yet know where the lower limit is, maybe 500)



[moonbase]

The Ocean 04 improvements work perfectly with the TNAP-5 image from El bandido
with a universal LNB 10492 is received,
non-locked signals are indicated
SRs below 1000 are now received (I don't yet know where the lower limit is, maybe 500)
View attachment 153645

@stephan94

Is that the default skin from the TNAP image that you are using in the 10492 H screen capture?
Or is it another skin?

Thank you.



[jsda30]

@ocean04
e2_changes_20231223.diff getestet im OpenATV7.4 with SF8008, Signal just above zero is displayed

View attachment 153644

really great
where its the patch file for sf8008?
it get tp 10494?



[suedschwede]

Patches at #274, 10494 i haf no test with SF8008 make.



[stephan94]

@stephan94

Is that the default skin from the TNAP image that you are using in the 10492 H screen capture?
Or is it another skin?

Thank you.

No, it is CinoGriPLi modified a bit



[jsda30]

Patches at #274, 10494 i haf no test with SF8008 make.

but i need ok file for sf8008
its only a txt



[EnoSat]

Anyhow this is better than before. How about the radio IP feeds on 30W?

Test in EDISION OSmio+ 4K:

Original KO from TNAP ( SR-718 ok , SR-512 no)

Original KO from OpenViX (SR-718 no , SR-512 no)

Patch from 24.12 (SR-718 ok , SR-512 no)

Patch from 26.12 (show lock, but it is the previous transponder)

Patch from 27.12 (show lock, but it is the previous transponder)

Patch from 27.12 (SR-718 ok , SR-512 no)



[stephan94]

a record; a frequency with an sr of 500 has been locked (amateur radio)



[ocean04]

e2_changes_20231223.diff getestet im OpenATV7.4 with SF8008, Signal just above zero is displayed

Does that really work in SF8008 and OpenATV? Have you tested other transponders? In OpenVix SF8008 I'm getting nothing



[Channel Hopper]

but i need ok file for sf8008
its only a txt

Your profile suggests you have another receiver.

You could compile one.



[MCelliotG]

Damn, I only have my Mutant HD51 with me at my hometown... I really wanna see these differences.
Did Stephan mentioned that 10492 is now received with a regular LNB? Did I read correctly?



[ocean04]

10492 is now received with a regular LNB?

Yes, possible with Edision + avl6261. What are the models using this tuner?
10492H also works with Vu+uno4k and Vu+zero4k using patched driver binary. I assume it's possible to patch all Vu+ 4K models.
So far unable to get it working in sf4008, sf8008, gbtrio, (these are all models I currently have)



[humaxboy1]

@ocean04 - is it possible to do "patching" for non-locked signals indication for sf4008 ?
Patches at #274 post are propably just for sf8008 ? Do I understand that you have to change only a few lines in 2 files or you have to build the whole image in linux env from the scratch?



[jsda30]

Your profile suggests you have another receiver.

You could compile one.

i have edision os mio and sf8008
