TürkmenÄlem/MonacoSat @ 52°E transponder update

New tp. 10926V 27500 (DVB-S2/8PSK)

Acc.to flysat "East Beam" with some FTA Uzbek channels. However no reception in Istanbul. Probably due to heavy interference from 53E. I wonder about reception reports from illumination area of East Beam for this tp. in Europe and Balkan.

The frequency is 10926 H. Indeed you may have interference from a transponder at the edge of 53E Fixed-1 beam, that I can not receive here in NL.
I can receive 10926 H easily on the 1.2 m dish, but not on a small 45 cm dish that gets all other nearby transponders.
It's 1.5 dB weaker than 10887 H.

No problem at all with the new Uzbek channels on 10926H in the Scottish Borders - its very strong.

2 channels showing fta sport yesterday too. (the same Prem game - ManUtd v Newcastle)

hvdh said:
The frequency is 10926 H. Indeed you may have interference from a transponder at the edge of 53E Fixed-1 beam, that I can not receive here in NL.
I can receive 10926 H easily on the 1.2 m dish, but not on a small 45 cm dish that gets all other nearby transponders.
It's 1.5 dB weaker than 10887 H.
View attachment 157477
Click to expand...
Yes indeed, I've meant 10926H. Sorry for my mistyping. I'm strongly suspecting 53E Fixed-1 edge frequencies (data) are the main cause of the problem here at my location as you guess. Lighting up this tp. at 52E is not a good choice as far as I can see, limiting reception at certain locations.

Analoguesat said:
No problem at all with the new Uzbek channels on 10926H in the Scottish Borders - its very strong.

2 channels showing fta sport yesterday too. (the same Prem game - ManUtd v Newcastle)
Click to expand...
The Scottish Borders are far away from interference zone. You are lucky. Enjoy fta sport dear friend.:D

Its a bit ironic that I can get clear reception & I really dont care for live sport much - and many members who would love access to these channels cant get them!

10.926H signal strength on my old TM5402 is about 11.5dB

12264V is bobbling around 13.2dB


The interesting one here is the new 11344H 27500 which is only 3.8dB.... and drops in & out of lock. Its supposedly on the east beam, but I doubt that (or its got something interfering with it from an adjacent satellite.)

EDIT - possibly the Belarus transponder on 51.5E - 11350H 45000

Last edited:
52 east test transponders
11291 H 45,000 id= TEST D1 & TEST D2
provider Belintersat shows as $ = encrypted

Someone might be interested in the signal at 52.0E in my area.


Attachments

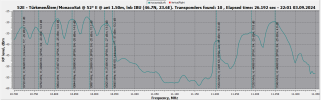

  • 10700-11450 H_2024-09-03_22-02-18.png
    10700-11450 H_2024-09-03_22-02-18.png
    88.1 KB · Views: 18
  • 10700-11450 V_2024-09-03_22-04-17.png
    10700-11450 V_2024-09-03_22-04-17.png
    91.7 KB · Views: 16

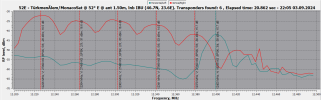

  • 12200-12500 HV_2024-09-03_22-06-15.png
    12200-12500 HV_2024-09-03_22-06-15.png
    86.7 KB · Views: 17
  • 11289 H,45000,34,8psk-tests_2024-09-04_20-54-08.png
    11289 H,45000,34,8psk-tests_2024-09-04_20-54-08.png
    88.1 KB · Views: 22
Is the Belarus test definitely coming from 52E? Its a fair bit lower in power than the other 52E frequencies (apart from the one suffering the co satellite interference) About 9dB here. About what I would have received from the stronger Belintersat 51.5E transmissions in the past.

Here are the frequencies you can find on Belintersat 51.5E; they are from Belarus.
You're right, the test is at 51.5E.
With a small antenna, it's hard to delimit one position from another when only 0.5° separates two neighboring satellites.


Attachments

  • 11200-11450 H_2024-09-05_00-13-28.png
    11200-11450 H_2024-09-05_00-13-28.png
    61.4 KB · Views: 22
  • 11349 H,45000,8psk_2024-09-05_00-16-50.png
    11349 H,45000,8psk_2024-09-05_00-16-50.png
    454.8 KB · Views: 18
  • 11289 H,45000,34,8psk_2024-09-05_00-31-54.png
    11289 H,45000,34,8psk_2024-09-05_00-31-54.png
    139.2 KB · Views: 15
Received the following message:

Exclusive news: The TV channel Tom & Jerry will be available in a few hours on the following transponder:
Tom & Jerry HD is coming
10.762 V 2/3 27.500 DVB-S/QPSK

The following channels will also be launched soon:

• Persian Travel: An English-speaking network that focuses on Iran's tourist attractions and introduces them to the world.

• Persian Emirates: Especially for Iranians living in the UAE, with content tailored to their needs and interests.

• Persiana Plus One: A selection of the best content from Persian channels

Tell your friends.

The next series on the rotating channel (currently Shaun The Sheep) is a 24-hour broadcast of SpongeBob SquarePants.

11762 V 27500, DVB-S/MPEG-4/HD, FTA

What puzzles me:

Another mux, 247Box 11220V, is listed on kingofsat.net, lyngsat.com, 247box as also being on 52E,
but this mux peaks at 50.9E on my laminas1.2 dish (which could be off by a degree or so, but still
tracking the arc).

On the other hand, 11420 V peaks at 51.9E. So either these two muxes are not on the same satellite
or there must be some interference so that for one of them it is better to slightly point to the side of
its satellite.

Ideas?

Notification:

Transponder 11420, which was temporarily activated in Turkmenistan, is currently turned off.

Other tests (possibly 11380 or similar frequencies) may also be conducted in the coming days, but will be announced later.

Currently, the following channels are available on the new transponder of the TurkmenAlem satellite:

TurkmenAlem 52.0E
11420 V 27500,

Persiana Sport 1 HD,
Persiana Sport 3 HD,
Persiana Sport 4 HD,
Persiana SetMix HD,
Ravi HD,
Iran One News HD,
Euronews Persian,

along with various channels that broadcast the WNS logo. A number of other channels will gradually replace these in the near future.

Received the following message:

Send this post to all your friends and acquaintances!!!

There is news, news is coming!
If you have a satellite receiver at home... be ready for good and exciting news!!!

Breaking news:

1) The channel Manoto has started broadcasting in HD quality on the TurkmenAlem satellite after signing the contract!

Manoto HD
TurkmenAlem 52E
10762 H 30000

It will probably also start broadcasting on other frequencies.

2) «Persiana Podcast»; Transfer of Persian podcasts from YouTube to television

Following recent changes in YouTube's policy and the removal or restriction of revenue related to Persian content, the Persiana Media Group has announced that a new channel called Persiana Podcast will be launched within the next two weeks; a channel designed to create a new revenue stream for YouTubers and producers of Persian-language content.

Persiana Podcast will focus on podcasts, talk shows, interviews, and analytical content, providing a platform for digital creators to transfer their content from the solely platform-based YouTube to a television format with a broader audience.

According to the Persiana Media Group, this channel will enable visibility on a scale that surpasses the limitations of platform algorithms and create a new path for revenue based on television broadcasting, advertising, and media partnerships by connecting the podcast ecosystem and online producers with satellite broadcasting and broadcast television.

The management of Persiana has emphasized that the launch of this channel is part of the group's new strategy to respond to global media trends and changing viewing habits; a strategy aimed at redefining the position of podcasts and talk-based programs on Persian-language television and creating an effective connection between independent producers and mainstream media.

Persiana Podcast, as one of the key new projects of this group, will play an active role in shaping the future of conversation-based Persian content and the modern media sector.

3) Change in the network portfolio of Persiana Media Group

As part of periodic reviews of content policy and with the aim of optimizing the channel portfolio, Persiana Media Group has announced that the channel Persiana Vibe, focused on rap music, will cease operations starting Monday.

Based on this decision, the channel Persiana K-pop will be launched as a replacement; a channel that, focusing on K-pop music and culture, aims to cater to the interests of a broader audience, especially the younger generation.

This change falls within the new policy of Persiana Group to focus more on channels with a large audience and international genres.

The management of Persiana Media Group has stated that continuous evaluation of channel performance, audience reach, and global media trends are among the main criteria in recent decisions. The discontinuation of some channels with a small audience and their replacement with new formats is part of this approach.

Persiana Group has emphasized that the goal is to improve content quality, program diversity, and better alignment with the preferences of Persian-speaking viewers both inside and outside the country, and in the future, similar revisions in the structure of the channels will continue.
