53E Express-AM6

pride21

pride21

Specialist Contributor
Messages
611
My Satellite Setup
150cm gibertini dish,echostar 8700 analogue receiver to move dish,motor jaeger 1224,also black ultra ku lnb and esx241 c-band lnbf and technomate 5402hd ci+ super also added a Dr HD f15 receiver
My Location
Sandown Isle of Wight
hi all tried this sat transponder 3675R 33483 got four channels two scrambled the other two clear,quality is 9.3-9.4dbP4230049.jpg P4230050.jpg

Lasseparabol

Lasseparabol

Member
Messages
86
My Satellite Setup
3 m Prodelin
C band 25K Chaparall Sidekick
Ku band SMW X-line lnb
Chapparal Corrotor 2 Wide band
Echostar AD-3000IP
Dr.HD F15
My Location
Sweden south part
Great find.
I got 16.7dB in South Sweden

Kveys

Kveys

Regular Member
Messages
868
My Satellite Setup
125 Gibertini, Stab-120 (30W-86.5E), TM-F3/5/TM-5302HD+230Pf (C-band 40.5W-87.5E)
My Location
Southern Finland
Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,930
My Satellite Setup
See signature
My Location
France
3708 L 4280 7/8 GEM TV




Kveys

Kveys

Regular Member
Messages
868
My Satellite Setup
125 Gibertini, Stab-120 (30W-86.5E), TM-F3/5/TM-5302HD+230Pf (C-band 40.5W-87.5E)
My Location
Southern Finland
3708L GEM Tv and RSCC test channel 9.6 dB here.

pride21

pride21

Specialist Contributor
Messages
611
My Satellite Setup
150cm gibertini dish,echostar 8700 analogue receiver to move dish,motor jaeger 1224,also black ultra ku lnb and esx241 c-band lnbf and technomate 5402hd ci+ super also added a Dr HD f15 receiver
My Location
Sandown Isle of Wight
hi kveys I get gem tv at 7.5db on a 1.5 dish

adonis1

adonis1

Specialist Contributor
Messages
1,427
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3.
My Location
Syros island - Central Aegean sea - Greece
GEM TV.jpg


7.6 db with TM-5402 HD M3

adonis1

adonis1

Specialist Contributor
Messages
1,427
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3.
My Location
Syros island - Central Aegean sea - Greece

and the video trailer of RSCC.

lovelyperson

lovelyperson

Dreamer
Messages
893
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
1.0m dish fixed 19.2ºE(Movistar-Spain etc)
TBS 5925 USB
TM5502, TM5402 mk3,
Octagon SX88,
Edision Primo IP S2
60.0ºE - 63.0ºW
My Location
Alicante, España
Just an update.

3675 R 33483 Zone 1 footprint (now no good for me here at least)

3708 L 4280 now only has the RSCC promo video.

Guess the data frequencies are from Yahsat-1A at 52.5ºE.... Lyngsat do not list C-Band!

Today 05.50hrs
01-10-2015 05.50hrs.JPG
4072 and 4175 01-10-2015 05.05hrs.JPG

later

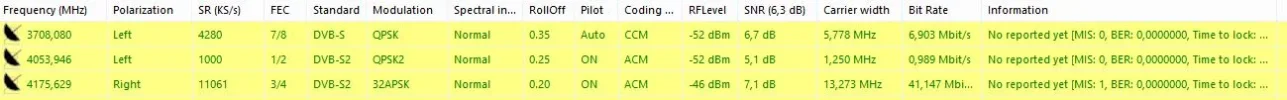

3708 01-10-2015b.JPG

3708 L 4280

hvdh

hvdh

Specialist Contributor
Messages
2,056
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
3500...Yahsat...3600...AM6...3950...Yahsat...4200

B

blademedia

Member
Messages
1,941
My Satellite Setup
Sky
My Location
UK
M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
Attached below are a few pictures from an initial scan of 53.0 East in C-Band. It looks like every C-Band frequency from this satellite is now T2-M1?

.





M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
I did not get any more done today re scanning this satellite. However, it looks like this evenings signal levels are reasonable as I managed to lock 8 frequencies in an EBSPro scan.

If I get time tomorrow I will switch the LNB over to the WiMax version and run a scan using a shorter length of WF100 cable and one less A/B switch in the line. Hopefully, I might manage to lock one or two more frequencies that are currently around 1dB under the level for a lock.

Tonight's EBS Pro blind scan is attached below (filter applied to exclude ACM).

.

Last edited:
M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
I switched over the LNB to the WiMax version and recorded the signal levels before and after the switch over. In addition, I used a 12 metre shorter cable run with one less A/B switch in line.

The signal levels improved marginally using the shorter cable run and one less A/B switch. However, when comparing the non WiMax LNB with the WiMax LNB some signals levels decreased and others increased. There seems to be a trend whereby most signal levels of 3739 MHz and below were stronger on the non Wimax LNB and most signals of 3758 MHz and above were stronger on the WiMax LNB. Some of the signal level gaps were normal fluctuation, others were slightly more noticable.

The WiMax LNB is specified for 3700 - 4200 MHz, the non WiMax LNB is specified for 3400 - 4200 MHz. I guess the results are probably as expected with the WiMax version having marginally poorer signal levels for frequencies below its specified range?

This mornings scan result table is attached below. The readings were taken from the signal level indicator of a Dr HD F15 receiver. There is not much more I can do with this satellite apart from tweak the feed/scalar pair distances. On to the next...

.

M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
As a last test on 53.0 East I checked the feed/scalar pair distances to see if I could improve overall signal reception from this satellite. However, I did not get anything of note from this test. I have attached the final 3 pictures from my testing on 53.0 East below.

The Edision Nino Pro managed to lock 8 T2-M1 frequencies and the Dr HD F15 showed 9 frequencies to be above a lock level. That is coherent with other comparisons between the Nino Pro and the F15, IMHO, the F15 has the better tuner.

.





M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
I'm back :cool:

Even though I said in my previous post above that I had finished testing this satellite I had a niggle that it had more to give. The final sets of signal levels were for a meridiem test to see if there was a favourable time of day for peak reception at my location. From recording signal levels at AM and PM it looks like AM is the best time. The PM signal levels were recorded Friday evening, the AM signal levels were recorded this morning.

I have attached the final scan result table below and a couple of screen grabs from the Edision Nino Pro blind scan. That is definitely it from me on this satellite, on to the next...

.
