Intelsat 35e 34.5 w

william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,260
Reaction score
12,328
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
2 new transponders @ 34.5 west either test carriers or new data streams maybe from Intel 35e ?

DSCN2021[1].JPG DSCN2022[1].JPG


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,260
Reaction score
12,328
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
11023 H 5000 2/3 DVB-S2 8PSK data stream
11468 H 14974 5/6 DVB-S data stream

Been active for 3 days now.


s-band

Member
Joined
Feb 7, 2016
Messages
1,252
Reaction score
2,003
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex

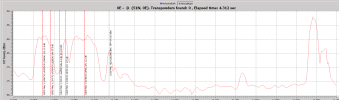

@satesco I see the same as your post on 36W but got totally confused as to which of the 34.5 sats is which. My scans:


The signal at 11136H is 16QAM

The pair at the top of H & V consist of one data and one that appears to be a wide band FM signal at 20Hz. The data on V will not lock.
The upper traces are max. held to show extent of the FM signal. I guess that the FM is a test signal.

11657H above, 11657V below

and this is what the modulation looks like when slope detected (i.e.FM)


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,147
Reaction score
3,074
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Hi @s-band,
Forgive me as I posted on the topic 36W and in a way I misled you.But I realized later that the signal found was from 34.5 W.Indeed your spectrometer correctly shows the signal from this position,including 11136 V,which is the same as my constellation of 16 qam.
Your device sees better modulated signal,but unfortunately not with ours crazyscan.Maybe my lnb skew need to be adjusted because I have a signal on both polarities at 11669 H/V.I see that on your analyzer because you have signal on both polarities at 11013 HV, just like me. And no wonder, if we compare the signal,which is pretty much the same,as level/quality,with all that we are in two different areas. Now I can not make adjustments to lnb to check if polarities are well separated.Luckily you have a device which highlight the better signal on both polarities.We'll see later when it will be activate the other transponders on this satellite.
Here's the signal that I'm picking up from this position.
Regards


Attachments

  • 34.5W-10950-11700 V&11136 V const__2017-08-21_18-52-13.png
    34.5W-10950-11700 V&11136 V const__2017-08-21_18-52-13.png
    192.3 KB · Views: 17
  • 34.5W-10950-11700 H__2017-08-21_18-52-13.png
    34.5W-10950-11700 H__2017-08-21_18-52-13.png
    128.2 KB · Views: 16
  • 34.5W-10950-11700 H-V__2017-08-21_18-52-13.png
    34.5W-10950-11700 H-V__2017-08-21_18-52-13.png
    191.4 KB · Views: 15

s-band

Member
Joined
Feb 7, 2016
Messages
1,252
Reaction score
2,003
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex
Hi @satesco , I have looked again and I now don't think it is FM. It is hard to tell as it is too wide for the analyser but it seems more like amplitude modulation of the data, maybe from the other polarisation? The amplitude variations are quite close to a sine wave at 20Hz. The total bandwidths of the 20Hz signals are similar to those of the data sigs on the opposite polarisation. It' almost like something is weird with the satellite unless it is a test mode. Looking at your Crazyscan plots, the 20Hz signals show up as spikes and I see that here.

I get about 20-22dB cross polar rejection and your system looks similar from the levels at 11075 on you CS scan. The signal centred on 11670H is about 11dB higher than the 20Hz signal in 11670V so that suggests it is not related to x polar problems on receive.

I wonder if @Feedsat_DXer has any ideas?

Last edited:
A

Anonymous_1

Guest
I am not able to check this at the moment.
I ll be Back to you asap if "necessary"


s-band

Member
Joined
Feb 7, 2016
Messages
1,252
Reaction score
2,003
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex
Thanks @Feedsat_DXer . You are seeing the 20Hz things as spikes as well. I still can not work out what is going on around 11665MHz. Do you have any thoughts or know someone who might?

A

Anonymous_1

Guest
Just checked

In my opinion, just a slot of transponder #68 which is open but empty.

but I m not an expert...



Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,257
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
Yes, in real time, random amplitude bursts. Maybe they can extract information from it if that's its purpose :confused


Last edited:

Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,257
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia

s-band

Member
Joined
Feb 7, 2016
Messages
1,252
Reaction score
2,003
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex
Yes, random amplitude bursts. Maybe they can extract information from it if that's its purpose :confused
If you change the sweep speed, you should see the modulation more clearly and if you can set your analyser to zero span with a wide bandwidth, triggered on video, you'll see the 20Hz. It looks random as the sweep is not locked to the modulation. The amplitude mod is a reasonable 20Hz sine wave. This plot shows it triggered on AM demodulated video https://www.satellites.co.uk/forums/attachments/34-5w_11665_slope-demod_h-gif.109789/
To me, it looks like the signal from the opposite polarisation is modulated by 20Hz AM. That applies to both pairs.

Just checked

In my opinion, just a slot of transponder #68 which is open but empty.

but I m not an expert...

View attachment 109829
This looks the same thing but a slower sweep speed. The waterfall shows that the AM is not locked to the sweep.

I wonder if there is something going on that is allowing signals from one polarisation to get to the opposite but modulated? Perhaps a problem with the switching matrix? or some diagnostics, as you suggest, Llew?


Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,257
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
If you change the sweep speed, you should see the modulation more clearly and if you can set your analyser to zero span with a wide bandwidth, triggered on video, you'll see the 20Hz. It looks random as the sweep is not locked to the modulation. The amplitude mod is a reasonable 20Hz sine wave. This plot shows it triggered on AM demodulated video https://www.satellites.co.uk/forums/attachments/34-5w_11665_slope-demod_h-gif.109789/
To me, it looks like the signal from the opposite polarisation is modulated by 20Hz AM. That applies to both pairs.
Thanks s-band. If I change the sweep speed (1o MHz limit with the Promax) I have the trio of amplitude bursts. Your traces much clearer than anything I can view with the setup I have.
A stronger signal from 34.5W would be welcome.

Capture bursts.JPG


Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,120
Reaction score
11,568
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
Ive split the reception reports from the launch thread into a more suitable home.


pontiend

Contibruter
Joined
Dec 12, 2007
Messages
3,112
Reaction score
3,596
Points
113
Age
81
Location
South Yorkshire
My Satellite Setup
See Signature
My Location
south yorkshire
I receive four transponders from this satellite. Scan range 11000-11700H .
I have set it at 34.6 for scanning purposes.
TBS6983 100cm Dish.


hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,379
Reaction score
3,376
Points
113
Age
60
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
Note that Intelsat 903 left 34.5°W on 17 Sep 2017. So now it's only Intelsat 35e from this position.

Intelsat 903 should arrive at 31.5°W end of September.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,147
Reaction score
3,074
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11160 H,45000,3/4,Dvb-S2/32APSK,ACM,Multi254-new GS,
11560 H,21544,3/4,Dvb-S2/32APSK,ACM,Single-new GS,


Attachments

  • 11160 H,45000,34,32apsk,multi254-gs_2017-11-27_18-37-44.jpg
    11160 H,45000,34,32apsk,multi254-gs_2017-11-27_18-37-44.jpg
    383 KB · Views: 9
  • 11560 H,21544,34,32apsk-gs_2017-11-27_18-40-53.jpg
    11560 H,21544,34,32apsk-gs_2017-11-27_18-40-53.jpg
    359.5 KB · Views: 6
  • 2017-11-27_18-35-48.jpg
    290.2 KB · Views: 7

william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,260
Reaction score
12,328
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
Top
