Wanted chaparral skew motor

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
Any one know if any dealer in Europe sells a Chaparral Skew Motors or maybe you have a spare you might want to sell me off a old corotor .

Many thanks


Attachments

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
30,350
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
They rarely go wrong, usually with corotors the centre shaft ends up seizing through the alloy corroding.

Can you get the motor off the main unit without breaking the four screws ?

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
Thanks CH I have got a replacement corotor coming but I will have a play with the old one as it does have a fair amount of corrosion one thing I did notice was the feed is pointing about 1 foot above the centre of the dish so it must have moved over the years . While I am changing over the arms I will realign the feed point with the centre of the dish . Light you say might just require a bit of WD40 but the centre does move by hand yes I have had the motor off before , I might remove the motor then give it a skew control and see if it moves or not .


Attachments

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
30,350
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Thanks CH I have got a replacement corotor coming but I will have a play with the old one as it does have a fair amount of corrosion one thing I did notice was the feed is pointing about 1 foot above the centre of the dish so it must have moved over the years . While I am changing over the arms I will realign the feed point with the centre of the dish . Light you say might just require a bit of WD40 but the centre does move by hand yes I have had the motor off before , I might remove the motor then give it a skew control and see if it moves or not .
If you have bought the 135 degree inox brackets with the new arms you should be OK

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
The new arms were made up by Rimants and clamp round the neck of the corotor and not the scalar ring but I have worked out the plan to get to the old top support rod just move the dish over to about 70 east then get the step ladder in I can reach the top of the rim and the support rod . I will try a good spray of WD40 and leave it over night if all fails I will attack the nut with the dremel .


Attachments

Terryl

Terryl

Specialist Contributor
Messages
2,704
My Satellite Setup
OpenBox X5 on a 1 meter motorized dish.
And now a 10 foot "C" band dish.

Custom built PC
My Location
Deep in the Boonies in the central Sierra Nevada mountains of California.
Can you get a nut splitter over the rusted nut?

I use one of these....https://www.amazon.com/OEMTOOLS-25738-Inch-Splitting-Tool/dp/B003VWEL3Q/ref=sr_1_59?dchild=1&keywords=Nut+splitter&qid=1588192959&sr=8-59

Handy thing to have in the tool box.

John

John

Enthusiast.
Messages
2,505
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
The new arms were made up by Rimants and clamp round the neck of the corotor and not the scalar ring but I have worked out the plan to get to the old top support rod just move the dish over to about 70 east then get the step ladder in I can reach the top of the rim and the support rod . I will try a good spray of WD40 and leave it over night if all fails I will attack the nut with the dremel .


Rimants work is excellent - this new feed bracket now gives you two points of feed adjustment for optimum illumination via adjustable scalar positioning as well as optimum feed throat position

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
30,350
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Picture 2 shows the brackets I mentioned

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
Ok CH bracket yes it goes round the neck and not the scalar ring . As far as the skew motor goes I can turn it my hand and cant hear any buzz from the skew motor so I can only assume its died but I will remove the motor and see if the motor moves with no load the only problem there is the screws might have corroded into the aluminium body of the corotor but any way a replacement corotor is on its way as for replacement Ku LNB still looking for a Type R or E SMW but we shall see what turns up .

Thanks John Yes the replacement arms are very well made and should look much better than the old ones , Terryl As for the removing the nuts yes good idea the problem is finding a nut splitter with all the shops closed if not its a hack saw or dremel with some very fine cutting wheels . The only thing thats outstanding at the moment is a replacement Ku band LNB . I dont mine paying good money for a good one but the stuff on ebay is silly money for its age . Any thoughts on a C band LNB at the moment its a 30 Year old 40 Kelvin Gardiner .

John

John

Enthusiast.
Messages
2,505
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
C-band reception with your 3.7 mtr Precision - the world is your oyster. The only thing that will get in the way is how much of the arc you can see from it's mounting position on your property. Because there is nothing of interest for me in the 3.4 to 3.6 GHz region i opted for an Extended C-band lnb from Norsat that will bolt onto your Chapparal and which gives me the extended band 4.5 to 4.8 GHz as well as the range 3.62 to 4.2 GHz . It's the Norsat 8000RI 3.62 to 4.8 GHz and uses a LO of 5750. Iv'e been using mine for quite a few years now on my 2.2 Elite PF and for the price it performs good. The chap i got mine off is in the link

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex

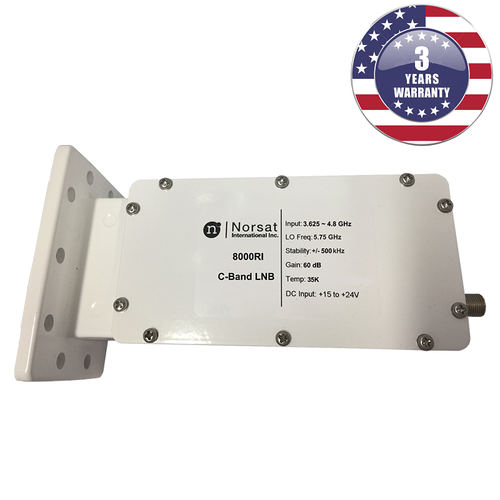

Thanks John for the info on the Norsat C Band LNB Yes seen a few of those on Ebay my old Gardiner is still working but I might just well go the full hog and replace the C band LNB as you can see with the corotor the corrosion is very bad . One thing I will do this time round is remove both of the elbows on the corotor and bolt both LNBs straight onto the corotor as we all know bends on waveguide means loss I did this before with the C Band but this time I will to it to the Ku side as well I seem to remember the Ku elbow is held by 4 x Torx screws so it should be straight forward to remove .

As for the hunt for a SMW Ku-Band Quad there are a few S/H type R that I have found but the seller wants almost the same price as new , Does any one know what is the spec of this LNB is its model NII 1000XA Ku-Band LNB Ive been told its Quad but can find nothing to confirm this .

As for Arc well 30 years ago I could go as low as just past 60 east and west was about 60 west then my neighbour put a 6 foot fence up .My problem was that 10 months of the year I was away so did not find this out until I return , So I bought the guy a 5 foot fence panel and I put the polarmount on a 2 foot concrete block so the 1 foot of the dish rim has the fence panel in the way but I can still see stuff even with the fence covering the bottom in those days I used this scope Luly but these days I use the sat look . I also need to give my jack a good rub down and a respray so got lots to do while we still have the lock

I wonder what you receive John with your Extended C-band lnb I wont be able to use that with the corotor as it only covers the standard C band 3.7 -4.2 maybe I could mount a offset lnb and feed to the new mount .

Thanks again to all the info as got a lot to learn all over again .


Attachments

RimaNTSS

RimaNTSS

Super Moderator
Staff member
Messages
5,039
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga
I will try a good spray of WD40 and leave it over night if all fails I will attack the nut with the dremel .
Dremel, WD40l!! Common , Brian, just take angle-grinder with curt-off disc and split all rusted nuts@bolts.
And, before you spend lots of money, I would advise to test your antenna with something simple . I mean single LNB, C-band or Ku-band.

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
Hi Rimants yes I fully understand your feelings why play with when you could gas axe it off but its a 30 year old dish and I dont want to damage it but its straight forward cut the nut then pull out the old support rods and fit your new ones .

The system is still working and at the moment its set up on Astra 4 signals are about 80% without any playing around and looking at the old arms feed arms seem to have bent so the feed is looking about 1 foot above the centre of the dish .

As soon as the replacement corotor arrives I will start removing the old arms who knows they might just unscrew .

RimaNTSS

RimaNTSS

Super Moderator
Staff member
Messages
5,039
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga
I will start removing the old arms who knows they might just unscrew .
That is what I am saying, you will not use those rusty parts anymore, so why should you be gentle to them?! Angle-grinding will not do any harm to the dish if you use it in the right way. Anyway, good luck. :rolleyes:

John

John

Enthusiast.
Messages
2,505
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
Thanks John for the info on the Norsat C Band LNB Yes seen a few of those on Ebay my old Gardiner is still working but I might just well go the full hog and replace the C band LNB as you can see with the corotor the corrosion is very bad . One thing I will do this time round is remove both of the elbows on the corotor and bolt both LNBs straight onto the corotor as we all know bends on waveguide means loss I did this before with the C Band but this time I will to it to the Ku side as well I seem to remember the Ku elbow is held by 4 x Torx screws so it should be straight forward to remove .

As for the hunt for a SMW Ku-Band Quad there are a few S/H type R that I have found but the seller wants almost the same price as new , Does any one know what is the spec of this LNB is its model NII 1000XA Ku-Band LNB Ive been told its Quad but can find nothing to confirm this .

As for Arc well 30 years ago I could go as low as just past 60 east and west was about 60 west then my neighbour put a 6 foot fence up .My problem was that 10 months of the year I was away so did not find this out until I return , So I bought the guy a 5 foot fence panel and I put the polarmount on a 2 foot concrete block so the 1 foot of the dish rim has the fence panel in the way but I can still see stuff even with the fence covering the bottom in those days I used this scope Luly but these days I use the sat look . I also need to give my jack a good rub down and a respray so got lots to do while we still have the lock

I wonder what you receive John with your Extended C-band lnb I wont be able to use that with the corotor as it only covers the standard C band 3.7 -4.2 maybe I could mount a offset lnb and feed to the new mount .

Thanks again to all the info as got a lot to learn all over again .


My two main signal sources for broadcast extended 4.5 -4.8 GHz sigs are from 40.5° West and 65° West but they could pop up in new locations at any time. They are usually pretty low in signal strength so a 3.7 mtr reflector is ideal. You are well catered for to gather plenty of signal strength from virtually anything C-band but the next fly in the ointment to 'pittle on your strawberries' will be some of the modern modulation / encryption formats

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
30,350
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
I wonder what you receive John with your Extended C-band lnb I wont be able to use that with the corotor as it only covers the standard 3.7 -4.2 maybe I could mount a offset lnb and feed to the new mount .
The C band flange is good for 3.35 to 4.85 GHz with cutoffs slightly beyond those.

Your corotor is OK for any LNB you can bolt onto it, if a little deaf on a smaller dish.

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
Yes I fully understand what your saying Rimants but I dont own a full size Angle-grinder but I have some small steel cutting wheels for the dremel that I had to use on the tower to cut some shackles off with so can that should do the job in a few minutes .

All understood John 4.5 -4.8 GHz sigs on 40.5° West and 65° West yes I should be ok for those as I used to watch Panam sat on 45 West and Premier channel on intelsat 27 west all this is well before sky fired up .
Yes good old encrypted yes I have fun and games when listening in on the scanner many years ago I used to plug my scanner into the feed using a DC blocker and you could hear listen to some interesting stuff but I dare say its all encrypted these days because my scanner could cover the IF freq of the LNB .

Thanks CH I did not think the corotor would cover 3.35 - 4.85 Ghz but its just out of band . Do you think I would get any better gain if I removed the first elbow on the corotor and bolted the Ku LNB straight onto the corotor in the same way I installed the C Band LNB I bolted it straight onto the corotor flange and not the elbow as we all know bends cause loss .


Attachments

frankviana

frankviana

Member
Messages
93
My Satellite Setup
Satellites/tv
My Location
Brazil
I need too to test a lot of C band. Here in Brazil we don't found this kind of skew motor.

This is mine, but damaged.

IMG_20200501_091229 (Personalizado).jpgIMG_20200501_091238 (Personalizado).jpgIMG_20200501_091242 (Personalizado).jpgIMG_20200501_091251 (Personalizado).jpgIMG_20200501_091257 (Personalizado).jpgIMG_20200501_091302 (Personalizado).jpgIMG_20200501_091311 (Personalizado).jpgIMG_20200501_091321 (Personalizado).jpgIMG_20200501_091325 (Personalizado).jpgIMG_20200501_091333 (Personalizado).jpg

frankviana

frankviana

Member
Messages
93
My Satellite Setup
Satellites/tv
My Location
Brazil
I did this tests today, lol

subman

subman

Member
Messages
280
My Satellite Setup
echostar 3600
My Location
essex
Hi FS I think my problem could be corrosion I can turn the small element by hand but nothing happens if I use the control from the receiver but I will unscrew the motor from the corotor and see if it works or not but I have got a replacement corotor coming .The motors are available on Ebay but I seem to remember you have very high import duty when you buy outside Brazil . But the motors are about 20$-30$ on ebay from the states .

Ok on your LNBs yes I have been trying to buy a SMW Quad Multiband LNB but its very hard to find , Where abouts in Brazil are you ?


Attachments
