47,7° East Eutelsat Quantum

s-band

Specialist Contributor
Joined
Feb 7, 2016
Messages
1,212
Reaction score
1,900
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with SMW Q-PLL LNBs or various C & X bits
My Location
Essex
I checked it with the big antenna. The 12523 H and 12702 H clearly come from this position. The 12702 H could be telemetry or the beacon. I don't know what the other signal is. Interestingly, I discovered two new signals on 12215 and 12226 H. But I can't unlock it at the moment.
I think that the X is probably BPSK as the CS display flips phase randomly where it should show just 2 positions. Usually, if you just run it for a short time you'll only see the 2 positions of BPSK. It may be a TT&C beacon but I can't look at the moment.

Last edited:

hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,365
Reaction score
3,351
Points
113
Age
60
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
Last edited:

dreamsat

Specialist Contributor
Joined
Mar 23, 2018
Messages
1,259
Reaction score
1,867
Points
113
My Satellite Setup
2,20m Kathrein, 3,7m Andrew, KU,KA,C,C-Ext. LNBs
My Location
germany
The first picture is from this morning and by noon the two transponders can be received again like yesterday.


Attachments

  • 47,7° Ost 24.JPG
    47,7° Ost 24.JPG
    109.3 KB · Views: 28
  • 47,7° Ost 25.JPG
    47,7° Ost 25.JPG
    114.5 KB · Views: 26

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,024
Reaction score
2,832
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
In this recent (2022) pdf, the high flexibility of Quantum is described in more detail.
All sorts of up/downlink combinations are possible, including frequency reuse.
So indeed, the entire 10.7...12.75 GHz band may be used.
...
10872 V,62000,1/4,S2- Data, new. RollOff of 0.05 also indicates the presence of the S2X extension.
11363 V,4200,3/4,32AOSK-GS, new. Maybe someone will confirm this mux; I am not sure about it.
Searching in the lower band, I discover an active mux with appearances like those that have been active for longer. So a full Ku-band search is recommended.
After doing the first time (#503) tests on 47.7E with neumoDVB with inconclusive results, I returned to muxes with a symbol rate of 133000. This time the spectrum looks a bit better, but without correctly finding and locking the two muxes-11790 H and 12020 V, the two muxes with a symbol rate of 62000.
It is amazing how fast it scans 6903x at 47.7E on Linux, about 7 min; unlike Crazyscan under Windows, it seems to take an "eternity."
Interesting that neumoDVB finds a lot of beacons but without a correct identification of muxes with a high symbol rate (133000).


Attachments

  • 10872 V,62000,14,s2,0.05-Data_2023-08-01_17-53-53.png
    10872 V,62000,14,s2,0.05-Data_2023-08-01_17-53-53.png
    112.9 KB · Views: 14
  • 11365 V,4200,34,32apsk-gs_2023-08-01_16-48-37.png
    11365 V,4200,34,32apsk-gs_2023-08-01_16-48-37.png
    69.4 KB · Views: 11
  • 47.7E__10700-11700__2023-08-01_18-16-32.png
    87.3 KB · Views: 13
  • 47.7E-11700-12500 H_2023-07-28_10-18.png
    47.7E-11700-12500 H_2023-07-28_10-18.png
    106 KB · Views: 12

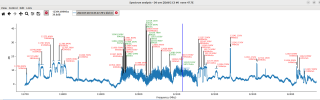

  • 47.7E_11700-12500 V__2023-07-28_10-47.png
    47.7E_11700-12500 V__2023-07-28_10-47.png
    147.2 KB · Views: 22
Last edited:

dreamsat

Specialist Contributor
Joined
Mar 23, 2018
Messages
1,259
Reaction score
1,867
Points
113
My Satellite Setup
2,20m Kathrein, 3,7m Andrew, KU,KA,C,C-Ext. LNBs
My Location
germany
I can confirm the 10872 H. I can't receive anything on vertical.


Attachments

  • 47,7° Ost 26.JPG
    47,7° Ost 26.JPG
    107.1 KB · Views: 20
  • 47,7° Ost 27.JPG
    47,7° Ost 27.JPG
    110.1 KB · Views: 32

adonis1

Specialist Contributor
Joined
Mar 2, 2008
Messages
1,577
Reaction score
1,536
Points
113
Age
68
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3 & M4
My Location
Syros island - Central Aegean sea - Greece
Also I'm getting 10872 H 61900, for first time


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,024
Reaction score
2,832
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
47.7E_12240 H,65336,1/4,S2(/S2X),0.15-GS, new.
And some spikes in the upper band.


Attachments

  • 12500-12750 HV_2024-05-16_15-05-04.png
    12500-12750 HV_2024-05-16_15-05-04.png
    91.5 KB · Views: 16
  • 12546 H-spike_2024-05-16_15-00-08.png
    12546 H-spike_2024-05-16_15-00-08.png
    77.9 KB · Views: 17
  • 12615 H_2024-05-16_15-01-22.png
    12615 H_2024-05-16_15-01-22.png
    79.5 KB · Views: 18
  • 47.7E_2024-05-15_22-24-26.png
    81 KB · Views: 21
  • 12240 H,65336,14,s2x,0.15-GS_2024-05-15_20-40-05.png
    12240 H,65336,14,s2x,0.15-GS_2024-05-15_20-40-05.png
    167.1 KB · Views: 22

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,024
Reaction score
2,832
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
I'm not saying anything new, but this Eutelsat Q is the most difficult to receive. This is because of the problematic parameters, especially with high symbol rates, and because the signal fluctuates, I don't know where the source/area is coming from.
Passing with the antenna at this position is often like passing through a station/arc without an identifying sign.

Perhaps because of this, finding and locking a transponder is (slight exaggeration) a performance, even if it is no longer a novelty.
Of course, that finding doesn't make it appetizing to the program consumer. He is a "target" for those seeking rare "trophies," i.e., enthusiasts.

The novelties are 11373 H, 62000, 1/4, S2 and 12140 H, 125578, 1/4, S2. The trp on 11892 H has moved to 11902, 62000, 1/4.
Probably 11790 is still active (maybe not), but the signal is too weak with my antenna to detect/lock it.

To those who have reservations for tbs6903x/6909x cards, I advise them to reconsider this option because, for now, only with these cards can you lock symbol rate over 100000 Msps or access to DAB+s NRK at 1.0W.
With all the limitations users observe, these cards will be valid for a long time. For now, there is no other alternative for enthusiasts.
Of course, this is just an opinion.


Attachments

  • 11373 H,62000,14,s2-gs_2024-06-27_20-12-17.png
    11373 H,62000,14,s2-gs_2024-06-27_20-12-17.png
    138.5 KB · Views: 10
  • 12141 H,125577-data_2024-06-27_10-52-08.png
    12141 H,125577-data_2024-06-27_10-52-08.png
    109.2 KB · Views: 12
  • 11200-11500 HV_2024-06-27_20-10-23.png
    11200-11500 HV_2024-06-27_20-10-23.png
    68.3 KB · Views: 14
  • 47.7E_11700-12300 HV__2024-06-27_17-57-18.png
    47.7E_11700-12300 HV__2024-06-27_17-57-18.png
    112.7 KB · Views: 17

dreamsat

Specialist Contributor
Joined
Mar 23, 2018
Messages
1,259
Reaction score
1,867
Points
113
My Satellite Setup
2,20m Kathrein, 3,7m Andrew, KU,KA,C,C-Ext. LNBs
My Location
germany
11270 H 133000 DVBS2X

thanks satesco:Y


Attachments

  • 47,7° Ost 20.JPG
    47,7° Ost 20.JPG
    179.1 KB · Views: 19
  • 47,7° Ost 19.JPG
    47,7° Ost 19.JPG
    187.4 KB · Views: 18

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,024
Reaction score
2,832
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Great, @dreamsat. I was expecting you to find a new mux.
With the stronger signal, it may stand out if there is a chance of a mux being found.
You might find a symbol rate at 11790 H, or, who knows, you might find new ones, for example, in the upper band.


Attachments

  • 12500-12750 V_2024-06-27_19-58-52.png
    12500-12750 V_2024-06-27_19-58-52.png
    49.4 KB · Views: 21

dreamsat

Specialist Contributor
Joined
Mar 23, 2018
Messages
1,259
Reaction score
1,867
Points
113
My Satellite Setup
2,20m Kathrein, 3,7m Andrew, KU,KA,C,C-Ext. LNBs
My Location
germany
this is now 11801 H 133000 with a Video Content

12021 V 133000
11171 V 133000


Attachments

  • 47,7° Ost 21.JPG
    47,7° Ost 21.JPG
    196.6 KB · Views: 18
  • 47,7° Ost 22.JPG
    47,7° Ost 22.JPG
    203.3 KB · Views: 15
  • 47,7° Ost 22.JPG
    47,7° Ost 22.JPG
    203.3 KB · Views: 11
Last edited:
