astra 1p 19.2e

[solly]

I have an analog receiver (TechniSat ST 3002 S) and a Philips CRT TV on my setup and you can see black screens on the strong carriers which have these ring shaped IQ constellations.

I observed different testing modes for the transponders on 1P being tested:
1. full bandwidth mode - lower power -> no "ring", no "black screen"
2. full bandwidth mode with narrow high power carrier at the transponder's centre frequency ->ring and black screen
3. full bandwidth mode with narrow high power carrier at the lower margin of the transponder (around -12 Mhz from centre frequency with a "tusk"-shaped spectrum on Crazyscan) ->ring and black screen
4. the same as 2. but without full bandwidth "basement" carrier

It is interesting to note that in some tests there are lower power peaks at the opposite polarization which seem to be switched on and off. I have a mechanical polarization skew motor on my setup which is optimized at 9.5 deg West.

ses astra testing signal freuqncy like astra 1n



[max11]

analog signal not use dvb2x

Analog signal conditions is different , its easy to get unlike DVB-S2 , so it's early to tell



[wellikan]

11393 H
11767 V



[solly]

11393 H
11767 V

it use astra 1kr and astra 1m frequency



[wellikan]

Without any constellations



[wellikan]

12496 V



[max11]

12496 V

Your pic not showing???



[stephan94]

thank you Welikan

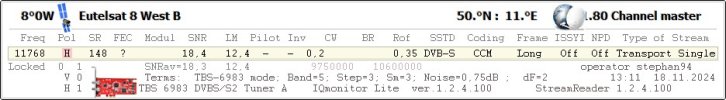

this is what IQMonitor can define



[solly]

12496 V

it look signal very near 12480v like astra 1m



[wellikan]

12416 V



[solly]

12416 V

it look come signal astra 1n 12402 france transponder



[wellikan]

12130 V



[solly]

12130 V

it look come signal astra 1n 12128v france transponder



[wellikan]

11259 V
11766 V
12542 H



[solly]

11259 V
11766 V
12542 H

11259 V astra 1kr
11766 V astra 1m 11778v
12542 H astra 1l



[max11]

New map of astra 1p



[wellikan]

11805 V

12207 V



[solly]

11805 V

12207 V

signal from 11817v astra 1m



[wellikan]

12305 H



[solly]

12305 H

astra 1n 12305 cerier of sky germany on astra 1n
