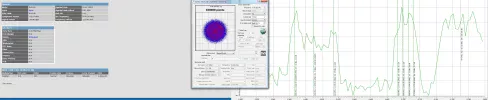

40.5W Finally 4770 L is lockable, thanks to new FEC 2/3 !

This is a enc GS stream (need a deeper check...)


John

John

Enthusiast.
Messages
2,468
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.

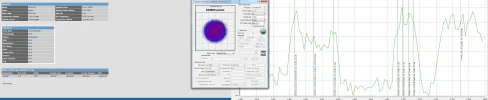

40.5W Finally 4770 L is lockable, thanks to new FEC 2/3 !

This is a enc GS stream (need a deeper check...)

View attachment 125782



Good stuff, i'm out of service with C-band at the moment on the 2.2 PF due to having a Ku scalar feed and small pll Ku lnb residing in the throat to look at some low level Ku signals :Y .
............................................................................................................................................................................................................................................................................................................

Cband- Ku feed.... 2.2 PF .. reduced....jpg

M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
40.5W 4581 L 30MSPS 2/3 New mux


View attachment 125781


The old mux at 4581 L was with FEC of 5/6 requiring around 9.4dB for a lock. From your screen grab the new mux has FEC of 2/3 requiring 6.6db for a lock. The new mux might now be in the scope of the small dish men subject to LNB availability?

M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
Here we go, a picture from one of the new channels on frequency 4581 L on 40.5W

40.5 West, SES 6
Frequency 4581 L, SR30000, FEC 2/3, DVB-S2, 8PSK, signal level required for a lock = 6.6 dB
ID = Rede Mosaico
biss encrypted



.

M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
Yesterday's tests on the 40.5W extended C-Band frequency of 4581L, SR30000 were with a DVB card and DVB Dream. Today I tested the frequency with an E2 receiver (Edision Nino Pro) using some user defined LNB settings in a ViX image.

Thanks go to forum member "Huevos" for updating the ViX blind scan plugin some time ago so that it would operate correctly with an inverted C-Band LNB.

Attached below are some pictures that present the ViX settings used and also a few pictures from some of the 8 channels in the 4581L mux. I hope the pictures are of interest or that they have some amusement value.

.


Attachments

Last edited:
M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
Of the 8 channels on the 4581 L frequency of 40.5 West, I uploaded screen grabs from 5 of them in my above post. I have attached below screen grabs from another two of them (Hello and Clubhino). The only one missing a screen grab is the "Entreter" channel.


.


Attachments

Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,930
My Satellite Setup
See signature
My Location
France
any help ?
65W 4648 V ?

John

John

Enthusiast.
Messages
2,468
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
any help ?
65W 4648 V ?
View attachment 126520


No sorry - - have kept an eye on it for the last four days or so but has not produced anything as yet. The last time i saw activity on this frequency was for 'Speedcast' tests ID. It does drop carrier every so often but then returns.

Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,930
My Satellite Setup
See signature
My Location
France
one more @65W on 4590 V


Lexzie

Lexzie

Member
Messages
185
My Satellite Setup
Xtrend ET10000 DVB-C, S2, T and IPTV, VU+ Zero 4k, Xtrend ET9500
80 cm fixed dish (28.2E/23.5E/19.2E/13E)
120cm Channel Master offset dish with polarmount (42E-34.5W)
My Location
The Netherlands
Of the 8 channels on the 4581 L frequency of 40.5 West, I uploaded screen grabs from 5 of them in my above post. I have attached below screen grabs from another two of them (Hello and Clubhino). The only one missing a screen grab is the "Entreter" channel.


.
This is totally different than what is listed on Lyngsat and Flysat. Apparently no-one of the contributers is able to update that.
Could you send me your lamedb?

John

John

Enthusiast.
Messages
2,468
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
65° West

... Not seen this one before but could have missed it
....................................................................................................................................................................................................................................................................................................
65 West. - 4551 V..JPG

Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,930
My Satellite Setup
See signature
My Location
France
65° West

... Not seen this one before but could have missed it
....................................................................................................................................................................................................................................................................................................
View attachment 127009
Actuve since 2 months (more or less) but new fec 3/5 since november (instead of 5/6)

John

John

Enthusiast.
Messages
2,468
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
65° West Ext Cband Ver signals.
Just not got quite enough signal with the 2.2 mtr PF perhaps - anybody able to have a look at these three signals

.............................................................................................................................................................................................................................................................................................................

65° West - Ext Cband V. - reduced..jpg

M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
65° West Ext Cband Ver signals.
Just not got quite enough signal with the 2.2 mtr PF perhaps - anybody able to have a look at these three signals

.............................................................................................................................................................................................................................................................................................................

View attachment 129417

We need "subman" to get sorted out, that 3.7m of his will rip these easy enough if he has line of sight. I think he said he might have 70.0E to 60.0W arc?

John

John

Enthusiast.
Messages
2,468
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
We need "subman" to get sorted out, that 3.7m of his will rip these easy enough if he has line of sight. I think he said he might have 70.0E to 60.0W arc?


... Yah , it needs somebody with a big 'un ..... unless it's a modulation type problem

subman

subman

Member
Messages
177
My Satellite Setup
echostar 3600
My Location
essex
The only import I can give you heading west is I used to watch stuff on Panam sat at 45 west but I could also see what ever was on 60 west before my neighbours fence gets in the way . But all this is over 25 - 30 years ago to put it in a time line I was watching Premiere tv on 27 Intelsat VA F11 (27.5 degrees West) Sorry cant give you any info until every thing is up and running again . But every thing has been ordered just waiting to hear back if this
Ku-Band Quad Multiband LNB from SCOPUS will work with my receiver using the simple 22Khz switch will do the job of switching between low and High band . Then I might be able to help you out its a pity the guy who installed my system had a 6m on a 2 jack system with a view of the whole belt but there must be others who have large dishes .

M

moonbase

Small Dish Man
Messages
2,545
My Satellite Setup
2.0m Precision
My Location
UK
... But every thing has been ordered just waiting to hear back if this
Ku-Band Quad Multiband LNB from SCOPUS will work with my receiver using the simple 22Khz switch will do the job of switching between low and High band . Then I might be able to help you out its a pity the guy who installed my system had a 6m on a 2 jack system with a view of the whole belt but there must be others who have large dishes .

Unless you have a C-Band Extended LNB that covers the frequency range of 4500 - 4800 MHz you will not be able to receive any of the C-Band signals in the extended range that are the subject of this topic. General C-Band LNB's do not cover this frequency range, you need a model that covers the range.
