Eutelsat Hot Bird 13F & 13G

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,150
Reaction score
3,085
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Since there is some discussion about whether and how much the signal has increased or decreased with the transfer of transponders to Hotbird 13F and 13G, I think it is more eloquent for those who have DVB cards to post the signal on the two satellites in their reception areas.
As far as I can tell from the frequency and number of people following this thread, I would guess that there are many users from all parts of Europe interested in these Hotbirds. A comparison between the spectra in these areas would tell us much more about what improvements or shortcomings the new satellites have than if one or another user on the thread is telling us the signal has increased or dropped on who knows what transponder. That saying, a picture says more than 1000 words.
Now that @Marcus_21 :Ytells us that Hotbird B and E are empty, and so the muxes have been transferred to 13F and 13G, I thought it would be good to post the signal level they have in my area obtained with the 1.50m antenna. I found 90 muxes.




Marcus_21

Specialist Contributor
Joined
Jan 21, 2010
Messages
467
Reaction score
1,813
Points
93
Location
Naples, Italy
Website
www.frequencyplansatellites.altervista.org
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB Inverto Pro Quad PLL + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + LNB Inverto Pro Quad PLL + actuator 18" + V-Box II.
My Location
40.7N - 14.5E
Dish: Gibertini 150)
LNB: Space Digital SDLNB4
Location: Province of Naples (Italy)
PC card: TBS6983

Horizontal

Vertical


Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,125
Reaction score
11,571
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
Is it still possible that Hotbird will be strengthened?? Because after transferring the frequencies to 13G, we lost many txps in Asia middle east.
Unlikely. The power levels generally are much higher in Europe than before which is nice for us. The complaints Ive seen in the ME are the loss of the pay tv services - Polsat & Sky Italia. To be blunt you arent in the primary target area for these channels so you cant complain if you have lost them.


mianabid

Member
Joined
Sep 5, 2021
Messages
112
Reaction score
63
Points
28
Age
32
My Satellite Setup
13 16 09 07 38 42 108
My Location
lahore
Unlikely. The power levels generally are much higher in Europe than before which is nice for us. The complaints Ive seen in the ME are the loss of the pay tv services - Polsat & Sky Italia. To be blunt you arent in the primary target area for these channels so you cant complain if you have lost them.
I have seen many Italian and polish forum's where customers are complaining that signal level is low compared to previous old satellite's with loss of 2 to 3 dB

It's not case with middle East only


To be honest I have read an article on polish site's that

13g and f have some issues during manufacturing or faults occur during launch and both satellite's working with compromised performance


solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,640
Reaction score
3,852
Points
113
Age
54
My Location
Tel Aviv, Israel
i ask for forum to bild map of signal hotbird13f and 13g all europe and mideast like astra 2 on 28.2e


Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,125
Reaction score
11,571
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
I have seen many Italian and polish forum's where customers are complaining that signal level is low compared to previous old satellite's with loss of 2 to 3 dB

It's not case with middle East only


To be honest I have read an article on polish site's that

13g and f have some issues during manufacturing or faults occur during launch and both satellite's working with compromised performance
Guesswork - nothing more. If the satellite(s) do have compromised performance (which I think is unlikely) then insurance claims will be filed & it will confirm something isnt right

However seeing as both satellites have been extensively tested prior to slotting at 13East any problems would have shown up during testing. Eutelsat would not have acepted either satellite into service if there was anything seriously wrong with them (they didnt accept W2M into service a few years ago due to problems with it.) There is certainly plenty of power over the northern UK - Im seeing massively improved signals from 13G on my system here.


Nalleman

Member
Joined
Mar 28, 2008
Messages
332
Reaction score
268
Points
63
Location
Motala Sweden
My Satellite Setup
1,8 Channel Master, Black Pro LNB with CM feedhorn for 28 E which is my main interest when watching TV. VU+ DUO 4K SE, VU+ DUO 2, Octagon SF8008 and Vantage 8000 S and TS receivers. Fixed dishes at: 42 E (0,75 m), 28,2/28,5 E (1,8 m), 19,2 E (1,5 m), 13 E (1,1 m), 9 E (0,7 m), 5 E (1,2 m) and 1 W (0,7 m).
My Location
Sweden
I have seen many Italian and polish forum's where customers are complaining that signal level is low compared to previous old satellite's with loss of 2 to 3 dB

It's not case with middle East only


To be honest I have read an article on polish site's that

13g and f have some issues during manufacturing or faults occur during launch and both satellite's working with compromised performance
I'm pretty close to Poland (southern part of Sweden) and here the signal from 13 F/G is a great deal stronger on pretty much all transponders compared to 13 B/C/E. None is weaker.


iandoh

Regular Member
Joined
Jan 7, 2008
Messages
328
Reaction score
99
Points
28
Age
34
Location
Pärnu. Estonia/Burgas, Bulgaria
My Satellite Setup
1m Mutlibracket (19e, 13e, 10e, 9e, 4.8e) & 1.2m @ 28e
My Location
Pärnu. Estonia/Burgas, Bulgaria
In Bulgaria the signals have not really changed much, .2dB here or there on some transponders but otherwise regular business. This would appear to show that there is a drop further to the east from western europe that you go but I can't really confirm anything definitive. If anyone knows how to provide a bandscan on Linux then I'd be happy to help but my TV Headend server is monitorless.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,150
Reaction score
3,085
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
... If anyone knows how to provide a bandscan on Linux then I'd be happy to help but my TV Headend server is monitorless.
If you want to do (blind) scanning on Linux, you can install neumoDVB. The application has multiple functions. But better read with used on this thread, and you will see it is worth installing.

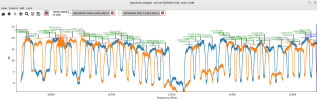

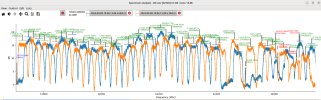

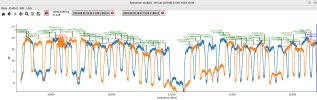

Here is a scan on Hotbird with neumoDVB. It looks like it was after transferring muxes on 13F and 13G.
I scanned with the tbs6903x card, which scanned faster than Crazyscan under Windows.


Attachments

  • 13.0E_10700-11700 HV_2023-09-09_19-05.png
    13.0E_10700-11700 HV_2023-09-09_19-05.png
    212.8 KB · Views: 20
  • 13.0E_11700-12750 HV_2023-09-09_19-27.png
    13.0E_11700-12750 HV_2023-09-09_19-27.png
    241.5 KB · Views: 19
  • 13.0E_Muxes_2023-09-09_19-28.png
    316.4 KB · Views: 16
  • 13.0E_Al Jazeera Eng HD_2023-09-09_19-35.png
    13.0E_Al Jazeera Eng HD_2023-09-09_19-35.png
    692.3 KB · Views: 16

Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,125
Reaction score
11,571
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
11623v nicosia 11db
Signal reports between receivers is pretty much meaningless. You can put 2 different receiver on the same dish & cable & get different signal strength readings.

Most receivers wont give a reading for 11623V anyway as its a DVB-S2X data stream so that one is a poor one to choose.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
766
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Since there is some discussion about whether and how much the signal has increased or decreased with the transfer of transponders to Hotbird 13F and 13G, I think it is more eloquent for those who have DVB cards to post the signal on the two satellites in their reception areas.
As far as I can tell from the frequency and number of people following this thread, I would guess that there are many users from all parts of Europe interested in these Hotbirds. A comparison between the spectra in these areas would tell us much more about what improvements or shortcomings the new satellites have than if one or another user on the thread is telling us the signal has increased or dropped on who knows what transponder. That saying, a picture says more than 1000 words.
Now that @Marcus_21 :Ytells us that Hotbird B and E are empty, and so the muxes have been transferred to 13F and 13G, I thought it would be good to post the signal level they have in my area obtained with the 1.50m antenna. I found 90 muxes.



For those of you using neumoDVB for a long time, and if you have not cleared your database, then you can use the signal history feature to compare hiow SNR, strength etc. changed over time. Unfortunately I have not experimented a lot on hot bird, so I have not many data points
myself.

Here is one example showing data on 10917V between August and now (no change)


And here is what happens when a tree (fir) is growing to large and on top of that starts to lean over, blocking signals from 52E.
I have lost 6dB, but I plan to get it back. The tree has been warned and has until tomorrow to respond to my ultimatum.

The graph is perhaps a little confusing because at some point I was debugging diseqc problems.
which lead to zero SNR readings.

Different symbols are used for different lnb/card combinations, which can be useful if you have multiple dishes.
When symbols are connected by lines, it means the lnb was used over longer periods of time.
,


mianabid

Member
Joined
Sep 5, 2021
Messages
112
Reaction score
63
Points
28
Age
32
My Satellite Setup
13 16 09 07 38 42 108
My Location
lahore
Guesswork - nothing more. If the satellite(s) do have compromised performance (which I think is unlikely) then insurance claims will be filed & it will confirm something isnt right

However seeing as both satellites have been extensively tested prior to slotting at 13East any problems would have shown up during testing. Eutelsat would not have acepted either satellite into service if there was anything seriously wrong with them (they didnt accept W2M into service a few years ago due to problems with it.) There is certainly plenty of power over the northern UK - Im seeing massively improved signals from 13G on my system here.


is it allowed to share external forums links so i share polish and Italian's forum links where lot of people complaining about signal loss.

There is also an article on satkor website about both satellite issues.


ozumo

te wo tsuite
Staff member
Joined
May 26, 2020
Messages
5,297
Reaction score
2,686
Points
113
My Satellite Setup
Raven mk2 zone 2 x4, Channel Master: 90cm x3, 1.2m x2, 1.8m PF. CM polar mount x2, Az/El x3.
My Location
South Durham
is it allowed to share external forums links so i share polish and Italian's forum links where lot of people complaining about signal loss.

There is also an article on satkor website about both satellite issues.
Should be okay as long as those sites don't share keys or promote card sharing etc.


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,261
Reaction score
12,330
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
isnt that an Intelsat position?
True but Intelsat may lease a satellite for this vacant spot just a thought.

Eutelsat 5 West B @ 5°west is down to 50% power due to the solar array failure so this could be another possibility.


satelliclub

Member
Joined
Jun 18, 2022
Messages
107
Reaction score
155
Points
43
Age
50
My Satellite Setup
Eutelsat 5 West B + Eutelsat 9B
My Location
Tunisia
Hello Marcus
Please verify HOTBIRD 13E really start or no start move because the satellite is start moving according n2yo

Joined
Mar 7, 2015
Messages
24
Reaction score
26
Points
13
Age
39
My Satellite Setup
Dreambox DM800PVR
Gibertini OP150
Superjack 1224AZEL
My Location
Serbia, Belgrade
Does anyone wonder if it is not the source of the reduced power of the spot beam, for example.
