Hi,
I try to install neumodvb on Fedora_39
but I can't do that because I have errors.
When I have installed on Fedora_39 linux media drivers, I have skept 4 packages.
I coudn't ffind wxGTK3 , wxBase3 , wxGTK3-devel and wxBase3-devel.
Display adapter is GeForce® GTX 1050 Ti KalmX and dvb adapter TBS6903X.


root@fedora:~/neumodvb/build# cmake ..
-- The C compiler identification is Clang 17.0.6
-- The CXX compiler identification is Clang 17.0.6
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/lib64/ccache/clang - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/lib64/ccache/clang++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
CMake Error at CMakeLists.txt:33 (string):
string sub-command STRIP requires two arguments.


-- xxx=//
-- Modern OS detected - using clang 20
CMake Error at /usr/share/cmake/Modules/FindPackageHandleStandardArgs.cmake:230 (message):
Could NOT find Boost (missing: Boost_INCLUDE_DIR regex context
program_options) (Required is at least version "1.69")
Call Stack (most recent call first):
/usr/share/cmake/Modules/FindPackageHandleStandardArgs.cmake:600 (_FPHSA_FAILURE_MESSAGE)
/usr/share/cmake/Modules/FindBoost.cmake:2392 (find_package_handle_standard_args)
CMakeLists.txt:55 (find_package)
-- Configuring incomplete, errors occurred!

What would be the problems?
thanks,
You seem to have missed installing some packagers from Fedora 38. as asked for in deeptho's install notes here -


Relevant to those you missed are boost, wxGTK3 and wxBase3, wxBase-devel and wxGTK-devel.

Install with sudo dnf install -y


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
You seem to have missed installing some packagers from Fedora 38. as asked for in deeptho's install notes here -


Relevant to those you missed are boost, wxGTK3 and wxBase3, wxBase-devel and wxGTK-devel.

Install with sudo dnf install -y
For fedora39 (and perhaps recent ubuntu)... some package names have changed.
wxGTK3 is now wxGTK for example, WxBase3 became wxBase.

If someone makes a note of what is needed to install, I will add that to the installation instructions


Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
wxGTK3 is now wxGTK for example, WxBase3 became wxBase.
Yes, I should have left '3' off in the first two packages I gave in the post.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Here is a screenshot of the new "dish list", which allows you to specify rotor speeds and to easily see what position your
dishes are pointing to. You do have more than one dish, don't you? You are allowed as many as your wife has in the kitchen.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
And here is screenhot of the new GUI which allows you to define a scan command, which can then be run periodically,
to automate spectrum scan, blind scan, epg....

And here is a list of some commands:
It shows an example of a command which scans specific muxes and an other command which scans a few satellites.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
And to prevent questions: the release of this version is planned for this weekend


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
The first test was with the tbs6909x card with neumoDVB.
What a difference in blindscan search speed between Windows and Linux!

I scanned with this card Astra at 19.2E. It took Crazyscan 32.7 minutes to finish the whole band, whereas, with neumoDVB, it ended in only 3.2 minutes.

It is true that on blindscan all over some muxes, the application passed without finding some service.

The card found an unusual mux at 19.2E in Windows and Ubuntu, with more DATA parameters.
A manual search didn't get any conclusive information certifying its existence.


Attachments

  • tbs6909x_19.2E_10700-12750 HV_32.70 min_2024-01-26_11-38-57.png
    tbs6909x_19.2E_10700-12750 HV_32.70 min_2024-01-26_11-38-57.png
    810.2 KB · Views: 15
  • tbs6909x_19.2E_10700-12750 HV_3.2sec_2024-01-26_20-19.png
    tbs6909x_19.2E_10700-12750 HV_3.2sec_2024-01-26_20-19.png
    178.6 KB · Views: 13
  • 19.2E_32,apsk-data_2024-01-26_19-57.png
    181.7 KB · Views: 15

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
neumodvb-1.5 has just been released.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
The first test was with the tbs6909x card with neumoDVB.
What a difference in blindscan search speed between Windows and Linux!

I scanned with this card Astra at 19.2E. It took Crazyscan 32.7 minutes to finish the whole band, whereas, with neumoDVB, it ended in only 3.2 minutes.

It is true that on blindscan all over some muxes, the application passed without finding some service.

The card found an unusual mux at 19.2E in Windows and Ubuntu, with more DATA parameters.
A manual search didn't get any conclusive information certifying its existence.
Which mux was scanned that did not produce services? And was that an error or not?


EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
843
Reaction score
795
Points
93
Age
54
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
Which mux was scanned that did not produce services? And was that an error or not?
This mux comes from Eutelsat 21B (10712H)


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Which mux was scanned that did not produce services? And was that an error or not?
Sorry, I misspoke, it's muxes unlock, not services.

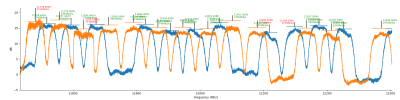

On 19.2E, the muxes(in red) that neumoDVB did not lock when searching "Blindscan all" with the 6909x card.
Some of these unlock muxes I could lock manually.
I have attached a neumo log. If necessary, I can also provide you with a kern log.


Attachments

  • neumo.log.zip
    411 KB · Views: 0
  • tbs6909x_19.2E__trps-nolock_.png.png
    156.2 KB · Views: 10
  • tbs6909x_19.2E_trps-nolock_.png
    155.2 KB · Views: 11

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
After updating neumoDVB to v1.5, I have "Blindcan all" with 6909x at 19.2E.
neumoDVB scanned fast but with the same muxes unlock errors

This time, I attached a Kern log.


Attachments

  • nDVB 1.5_6909x_muxes nolock.png
    nDVB 1.5_6909x_muxes nolock.png
    143.7 KB · Views: 11
  • nDVB 1.5_6909x_nolock_2024-01-27_12-00.png
    nDVB 1.5_6909x_nolock_2024-01-27_12-00.png
    160.8 KB · Views: 17
  • kern.zip
    2.4 MB · Views: 2

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
After updating neumoDVB to v1.5, I have "Blindcan all" with 6909x at 19.2E.
neumoDVB scanned fast but with the same muxes unlock errors

This time, I attached a Kern log.
They lock for me, but you are in a different part of the world. Are you sure they are locking in other programs?
Locking in neumodvb means that the data can actually be read from the mux


Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
In version 1.5, a blindscan all of 19.2E with a TBS6903X took ~11 minutes to scan112, locking 97.

Slow compared to satesco's but still faster than in Crazyscan.



deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
First bug fix is available. The bug can cause problems like described by satesco, but probably only when using
DiSeqC (and not always).

tbs6903x could have been faster, but because the card is wired differently than tbs6909x it is not possible
to get data out of more than 2 tuners simultaneously. Otherwise it could be double as fast.


Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
tbs6903x could have been faster, but because the card is wired differently than tbs6909x it is not possible
to get data out of more than 2 tuners simultaneously. Otherwise it could be double as fast.
Yes of course, I believe you have mentioned it before. Thanks for the reminder.


ptergrand

Member
Joined
Jul 14, 2023
Messages
120
Reaction score
20
Points
18
Age
44
My Satellite Setup
bu siteyi çok seviyorum
My Location
bu siteyi çok seviyorum
There is a problem with cmake

Code:
star@star-Vostro-3670:~$ cd ~/
star@star-Vostro-3670:~$ git clone --recursive https://github.com/deeptho/neumodvb
Cloning into 'neumodvb'...
remote: Enumerating objects: 15216, done.
remote: Counting objects: 100% (5337/5337), done.
remote: Compressing objects: 100% (1305/1305), done.
remote: Total 15216 (delta 4413), reused 4879 (delta 4029), pack-reused 9879
Receiving objects: 100% (15216/15216), 15.71 MiB | 5.17 MiB/s, done.
Resolving deltas: 100% (11980/11980), done.
star@star-Vostro-3670:~$ cd ~/neumodvb
star@star-Vostro-3670:~/neumodvb$ mkdir build
star@star-Vostro-3670:~/neumodvb$ mkdir build_ext
star@star-Vostro-3670:~/neumodvb$ cd ~/neumodvb/build
star@star-Vostro-3670:~/neumodvb/build$ cmake ..
-- The C compiler identification is Clang 16.0.6
-- The CXX compiler identification is Clang 16.0.6
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/clang - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/clang++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- xxx=/mantic/
-- Modern OS detected - using clang 20
-- Found Boost: /usr/lib/x86_64-linux-gnu/cmake/Boost-1.74.0/BoostConfig.cmake (found suitable version "1.74.0", minimum required is "1.69") found components: regex co
ntext program_options
-- Found PkgConfig: /usr/bin/pkg-config (found version "1.8.1")
-- Found Python: /usr/bin/python3 (found version "3.11.6") found components: Interpreter Development Development.Module Development.Embed
-- Checking for module 'gtk+-3.0'
--   Package 'gtk+-3.0', required by 'virtual:world', not found
CMake Error at /usr/share/cmake-3.27/Modules/FindPkgConfig.cmake:607 (message):
A required package was not found
Call Stack (most recent call first):
/usr/share/cmake-3.27/Modules/FindPkgConfig.cmake:829 (_pkg_check_modules_internal)
CMakeLists.txt:63 (pkg_check_modules)


-- Configuring incomplete, errors occurred!
star@star-Vostro-3670:~/neumodvb/build$ [CODE]
[/CODE]


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
769
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Cmake seems to be working fine in thus case. It even explains what is wrong...


ptergrand

Member
Joined
Jul 14, 2023
Messages
120
Reaction score
20
Points
18
Age
44
My Satellite Setup
bu siteyi çok seviyorum
My Location
bu siteyi çok seviyorum

ptergrand

Member
Joined
Jul 14, 2023
Messages
120
Reaction score
20
Points
18
Age
44
My Satellite Setup
bu siteyi çok seviyorum
My Location
bu siteyi çok seviyorum
CMake Error at /usr/share/cmake-3.27/Modules/FindPkgConfig.cmake:607 (message):
message(FATAL_ERROR "A required package was not found")

/usr/share/cmake-3.27/Modules/FindPkgConfig.cmake:829 (_pkg_check_modules_internal)
CMakeLists.txt:63 (pkg_check_modules)
_pkg_check_modules_internal("${_pkg_is_required}" "${_pkg_is_silent}" ${_no_cmake_path} ${_no_cmake_environment_path} ${_imp_target} ${_imp_target_global} "${_prefix}" ${_pkg_modules})

Top
