Just Sharing This Nilesat 201 @ 7.0W - reception report

Satfaca

Member
Joined
Aug 2, 2008
Messages
123
Reaction score
81
Points
28
Location
Melmac (46N, 14.5E)
My Satellite Setup
Prodelin PFA 340 cm + H2H motor + Chaparral Tri-band Corotor
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
DM920 + Octagon SF8008 + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Just wanted to share this reception report, received in Ljubljana/SI with a 3.4m Prodelin antenna. I guess it cannot get any better than this. Here and there another one or two transponders get locable but ... this is pretty much it from this bird.

11747V.jpg11766H.jpg11785V.jpg11823V.jpg11843H.jpg11.863V.jpg11.900V.jpg11.977V.jpg12015V.jpg12.149H.jpg


MCelliotG

Specialist Contributor
Joined
May 10, 2015
Messages
869
Reaction score
1,039
Points
93
My Satellite Setup
TBS 5925, Mut@nt HD51, EDISION OSMINI, MABO 130X144, DRAGONSAT DS3000 LED MOTOR, INVERTO BLACK ULTRA TWIN LNB
My Location
Thessaloniki, Greece
And how about Eutelsat 7WA on 7.3E, the beams are totally different.


Satfaca

Member
Joined
Aug 2, 2008
Messages
123
Reaction score
81
Points
28
Location
Melmac (46N, 14.5E)
My Satellite Setup
Prodelin PFA 340 cm + H2H motor + Chaparral Tri-band Corotor
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
DM920 + Octagon SF8008 + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Sure, those are two different satellites, 0.3° apart.
7WA gets here with 1 meter antenna, NWA beam with 2.4m upwards.


Butacas

Member
Joined
May 4, 2019
Messages
10
Reaction score
5
Points
3
My Satellite Setup
90 cm motorised dish (1 m x 90 cm) + fixed [diseqc 3 x 1] {80 cm x 74 cm} Hot Bird 13°E, {65 cm} Astra 19,2°E & {60 cm} Hispasat 30°W.
Motorised dish currently: 34,5°West to 45°East
Vu+ Solo SE V2, Vu+ Zero 4K, TBS 5927.
My Location
Spain, Galicia (Ourense)
These are the frequencies that I capture in nilesat 201 {7.0º W}

Screenshots:

11746 V - 11765 H.png11785 V - 11823 V.png11843 H - 11862 V.png11900 V - 11938 V.png11958 H - 11977 V.png12016 V - 12034 H.png12054 V - 12092 V.png12149 H - 12207 V.png12226 H - 12303 H.png


Satfaca

Member
Joined
Aug 2, 2008
Messages
123
Reaction score
81
Points
28
Location
Melmac (46N, 14.5E)
My Satellite Setup
Prodelin PFA 340 cm + H2H motor + Chaparral Tri-band Corotor
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
DM920 + Octagon SF8008 + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Nice. But your location is some 2400 km away from me. :)


Butacas

Member
Joined
May 4, 2019
Messages
10
Reaction score
5
Points
3
My Satellite Setup
90 cm motorised dish (1 m x 90 cm) + fixed [diseqc 3 x 1] {80 cm x 74 cm} Hot Bird 13°E, {65 cm} Astra 19,2°E & {60 cm} Hispasat 30°W.
Motorised dish currently: 34,5°West to 45°East
Vu+ Solo SE V2, Vu+ Zero 4K, TBS 5927.
My Location
Spain, Galicia (Ourense)
I am missing some frequencies (Nilesat 201 7.0ºW) in which I have no signal. With a larger antenna it would possibly have a signal on all frequencies of Nilesat 201. :)

So the Nilesat 201 7.0ºW signal should not reach the north of Spain according to the coverage maps.


Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
49,080
Reaction score
9,813
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
I am missing some frequencies (Nilesat 201 7.0ºW) in which I have no signal. With a larger antenna it would possibly have a signal on all frequencies of Nilesat 201. :)

So the Nilesat 201 7.0ºW signal should not reach the north of Spain according to the coverage maps.
Extreme fringe reception is an odd thing - unexpected reception can happen. I used to get just one frequency off Eutelsat 25A in southern Scotland with decent signal strengths - no way I should have been able to get it.

You are getting the DVB-S transponders - the DVB-S2 stuff is missing. You would need much more signal to get them. Most other satellite providers have started moving over to DVB-S2 as it makes better use of the spectrum available, so if/when Nilesat start switching you will start losing frequencies.


MCelliotG

Specialist Contributor
Joined
May 10, 2015
Messages
869
Reaction score
1,039
Points
93
My Satellite Setup
TBS 5925, Mut@nt HD51, EDISION OSMINI, MABO 130X144, DRAGONSAT DS3000 LED MOTOR, INVERTO BLACK ULTRA TWIN LNB
My Location
Thessaloniki, Greece
Sure, those are two different satellites, 0.3° apart.
7WA gets here with 1 meter antenna, NWA beam with 2.4m upwards.
The exact opposite happens in Northern Greece. 201 is fairly easy with 1.20 (all frequencies come from 8 to 11db) but 7WA MENA is extremely hard, with some frequencies not possible even with 2.40!


Satfaca

Member
Joined
Aug 2, 2008
Messages
123
Reaction score
81
Points
28
Location
Melmac (46N, 14.5E)
My Satellite Setup
Prodelin PFA 340 cm + H2H motor + Chaparral Tri-band Corotor
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
DM920 + Octagon SF8008 + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Yep, that's why extreme fringe reception is such an "entertainment". Sometimes even 50 km distance means a huge difference.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
548
Reaction score
708
Points
93
Age
63
My Satellite Setup
1.20 Channel master ( Paris)and 1200 Laminas ( Bavaria) KU and C Band
Openbox SX6 and S3 Mini, Dr HD 15, Octagon SF 4008 and Octagon SX88and SX8 HD One, TBS 6983
My Location
Bavaria and Paris
This morning I went pretty well with this satellite
I was able to get some difficult transponders ( for my place of reception north Bayern and 1,20 Antenne ); also with pictures.
10834V 4,8dB
10892H 6,0dB
10922V 6,0dB
11277V 5,8dB
11449H 5,5dB
11603H 6,0dB


Attachments

  • 10834 V.jpg
    10834 V.jpg
    179.4 KB · Views: 10
  • 10892H.jpg
    211.2 KB · Views: 9
  • 10922V.jpg
    220.7 KB · Views: 10
  • 11277V.jpg
    193.7 KB · Views: 10
  • 11449H.jpg
    158.9 KB · Views: 8
  • 11603H.jpg
    175.4 KB · Views: 10

Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
15,517
Reaction score
3,775
Points
113
Age
78
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia

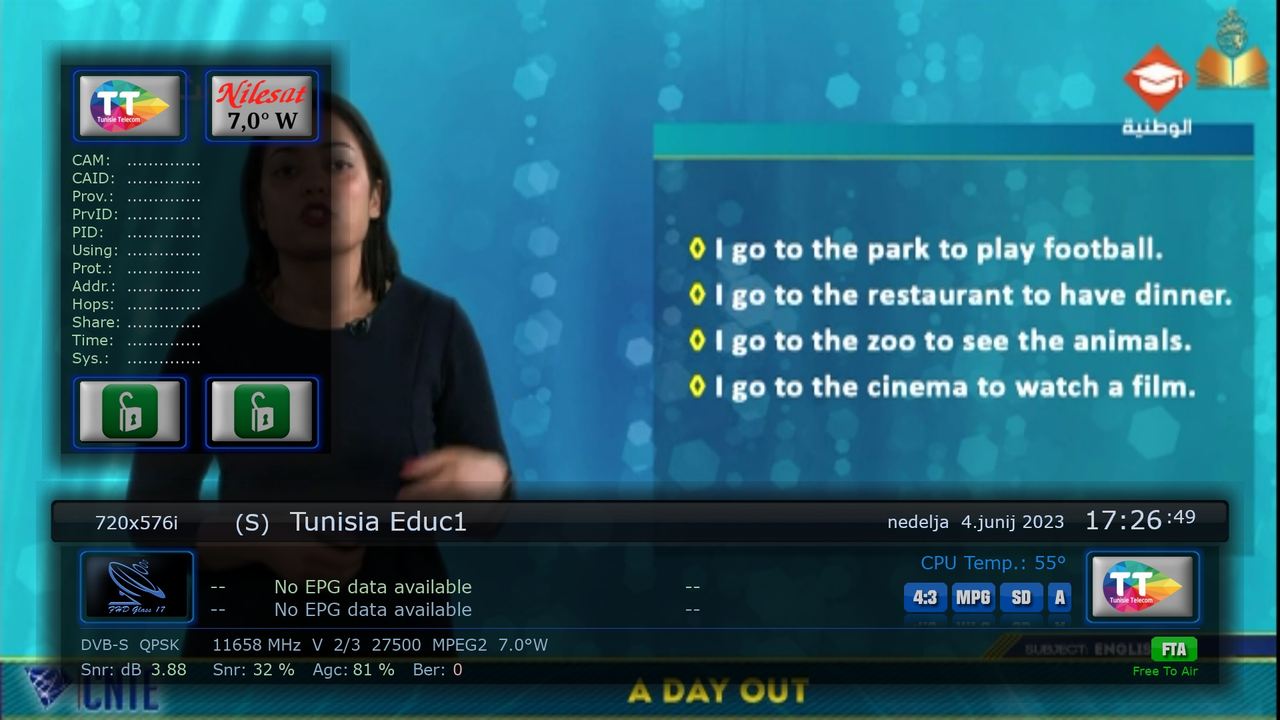

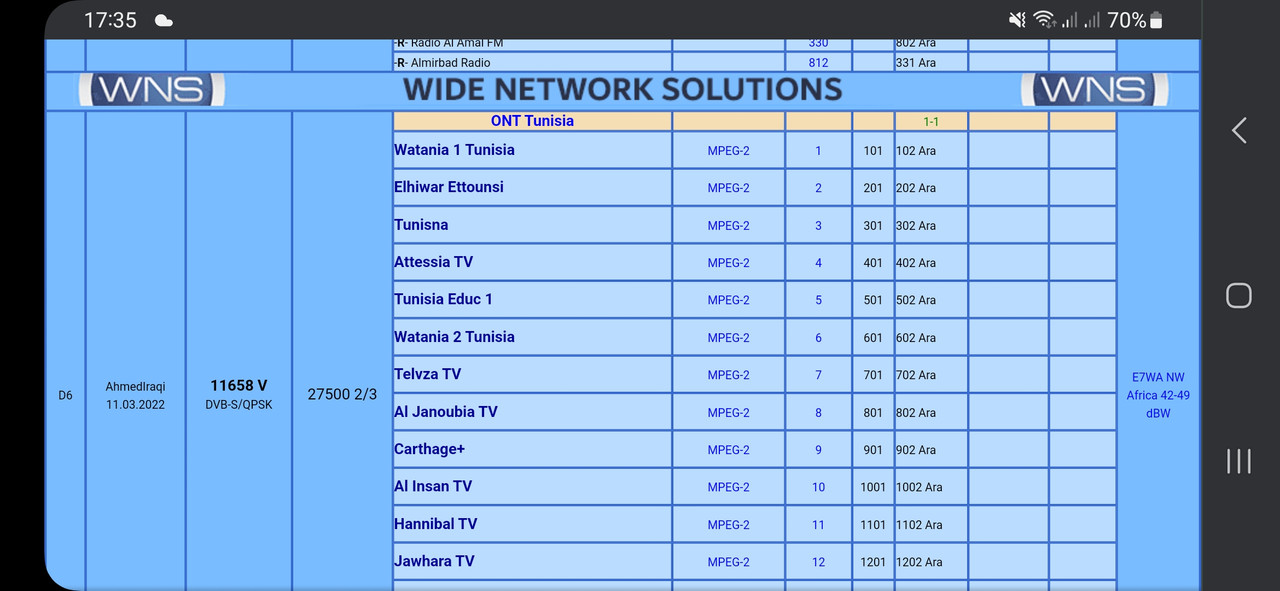

Some TPs locked tonight on E7WA with my Triax 88. For example, 11.315V -



Last edited:
