Receiving oscar 100 narrowband (es'hail2) with my channel master + sdrplay

RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales

stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria

RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,020
Reaction score
8,725
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Ohhhhh kaaaay, my head hurts ! So my 5925 is useless basically. I will soon get a 5927, in the meantime I will try the RTL SDR/ bias t way I guess. Thanks all anyway


I did say experiment with an older style LNB, the oscillator system employed is not the only reason.


sat-tv-fan

Specialist Contributor
Joined
Jul 6, 2009
Messages
775
Reaction score
151
Points
43
Location
East Sussex, South East UK
My Satellite Setup
1m motorised dish + Octagon 0.1db PLL LNB
(66 E) 42 E - 45.0 W
Azbox HD Premium
Azbox ME
Amiko A3 combo (android)
TBS 5925 and 5927 USB
TBS 6903 (for Eumetsat weather decoding on 10 East)
GT Media V8
Octogan SX88+
Octagon SF8008
Koqit K1 mini
Openbox SX6 HD
Mecool K3 pro (android)
X2 Premium HD
Skybox F3
Technomate 5302 HD
Technomate 5402 M3
iSmart X8
My Location
East Sussex, South East UK

stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
Can you see the SSB/Narrowband TV portion of the band?
Where should I look for this SBB / narrowband?
for narrow-band TVs, you have all the examples here:


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria

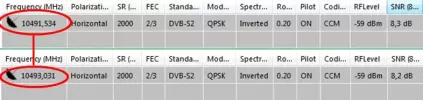

what we can see with a LNB that is not PLL; it isdb1-vert.jpg
the fluctuation of the frequencies measured from one day to another.


s-band

Member
Joined
Feb 7, 2016
Messages
1,263
Reaction score
2,021
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,020
Reaction score
8,725
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK

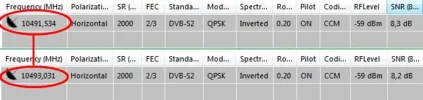

what we can see with a LNB that is not PLL; it isView attachment 123831
the fluctuation of the frequencies measured from one day to another.
Which receiver are you using to get those numbers ? It might not be just the LNB that is causing the frequency variation.

A PLL lnb is not always more stable than a good DRO design.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
@ s-band and Channel Hopper
That's my setting for IQmonitor
and it is with a TBS 6983
good luck
einstellung Ku bas.jpg


s-band

Member
Joined
Feb 7, 2016
Messages
1,263
Reaction score
2,021
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex
@stephan94 Many thanks. It worked when I set the LNB as you have it. Setting to "Custom" with extended range but still with 10.6G switch gave the problems. It works when set to Custom but with both LO1 & LO2 set to 9750.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
@ s-band
You are welcome :Y


RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
Just looking through my collection of LNB's here, I have a suspicious feeling the Inverto Black Premium Single (Not Ultra) Might be a PLL design.


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
36,020
Reaction score
8,725
Points
113
Age
60
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Pictures or it didn't happen.


RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales

RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
Pictures or it didn't happen.
Was testing LNB's today and can confirm the Inverto Black Premium Single is a PLL design and works outside it's designed frequencies, receiving Es'Hail2/QO-100 Narrowband SSB and DATV very well with it, surprisingly stable too. Part number is: IDLB-SINL41-PREMU-OPP
I tried a Single and Twin Black Ultra and they are definitely DRO and fall off like a cliff edge out of band.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
I work now with an LNB Edision QSL-4
the results are very satisfactory and I have not been able
to measure a noticeable difference with the IBU.
125158


RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
I work now with an LNB Edision QSL-4
the results are very satisfactory and I have not been able
to measure a noticeable difference with the IBU.
View attachment 125158
Does this receive Es'hail amateur frequencies and is it PLL? It is very cheap on Amazon here.


stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
919
Reaction score
1,484
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
Does this receive Es'hail amateur frequencies and is it PLL? It is very cheap on Amazon here.
As you can see, I have no problem to receive all frequencies up to sr 100.
But this only possible with my TBS6983 card and programs like IQMonitor or Crazyscan or EBSpro
with a modified StreamReader.ini.
here I made available a crazyscan that works with these frequencies (especially do not change anything)
This does not work with conventional receivers.
I do not know if this LNB is PLL


RustySpoons

Sleepy Hollow
Joined
Jan 31, 2018
Messages
2,345
Reaction score
1,278
Points
113
Age
43
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
Es'hail2/QO-100 Beacon, Minitiouner V2 (Custom PSU/22KHz Board)
Octagon Green Quad

125159

Top
