Top Tip T2-MI reception on E2 STB with SDG image - A complete step by step guide

[EnoSat]

it's only been on the 9E for a long time



[mike1]

Is zeonbud still on 9e FTA?
I've seen a master sat youtube video on this.
Wouldn't mind watching the music channel M1.



[EnoSat]

at the beginning of the war, they were all transferred to the FTA



[Adam792]

Is zeonbud still on 9e FTA?
I've seen a master sat youtube video on this.
Wouldn't mind watching the music channel M1.

Even if so, there's sadly little chance of picking them up in the UK even with a big dish. There are transponders using the same frequencies on the Italian beam, so most of the country would be in the mush zone.



[mola100]

If some one can upload a backup with RTRS 14w for octagon 4008/// Regards



[cirio70]

If some one can upload a backup with RTRS 14w for octagon 4008/// Regards

Done!



[mola100]

what about Abertis?



[EnoSat]

ABERTIS not T2-MI



[mola100]

Yes i know. A way to enjoy them?



[ozumo]

Yes i know. A way to enjoy them?

They are encrypted.



[EnoSat]

Yes i know. A way to enjoy them?

First you need to decode the BISS stream and then decapsulate the BDAV stream



[nirvana]

12073 H 27500 (4.8E)
Stream 15 - PLP: 0 - T2-MI

UA: Pershiy
RADA
1+1
ICTV UA
Telekanal STB
Inter
Unian TV



[cardiff]

On satellites.xml
4.8E Ku-band Astra 4A

<transponder frequency="12073000" symbol_rate="27500000" polarization="0" fec_inner="3" system="1" modulation="2" is_id="15" pls_mode="1" pls_code="0" t2mi_plp_id="0" t2mi_pid="4096" />



[Maxx@]

On satellites.xml
4.8E Ku-band Astra 4A

<transponder frequency="12073000" symbol_rate="27500000" polarization="0" fec_inner="3" system="1" modulation="2" is_id="15" pls_mode="1" pls_code="0" t2mi_plp_id="0" t2mi_pid="4096" />

The transponder is DVB-S, not DVB-S2



[MCelliotG]

T2MI and multistream on a DVB-S transponder? How is this possible?



[cirio70]

T2MI and multistream on a DVB-S transponder? How is this possible?

I'm skeptical too, but we have to trust what the analyzer says....



[EnoSat]



[Adam792]

Good find, I would say it’s just T2-MI though and not multistream/MIS. Perfectly possible to have T2-MI on a DVB-S transponder as it’s just data encapsulated within a standard DVB PID.

Not sure where the stream 15 comes from, from those screenshots it is indeed just a PID within the regular DVB-S TP alongside the other channels.

I would guess as these are an unencrypted version of Ukrainian DTT mux.1, they’re possibly intended for restoring Ukrainian TV to liberated areas quickly.



[Maxx@]

How do I have to configure astra-sm to be able to see these channels?



[Adam792]

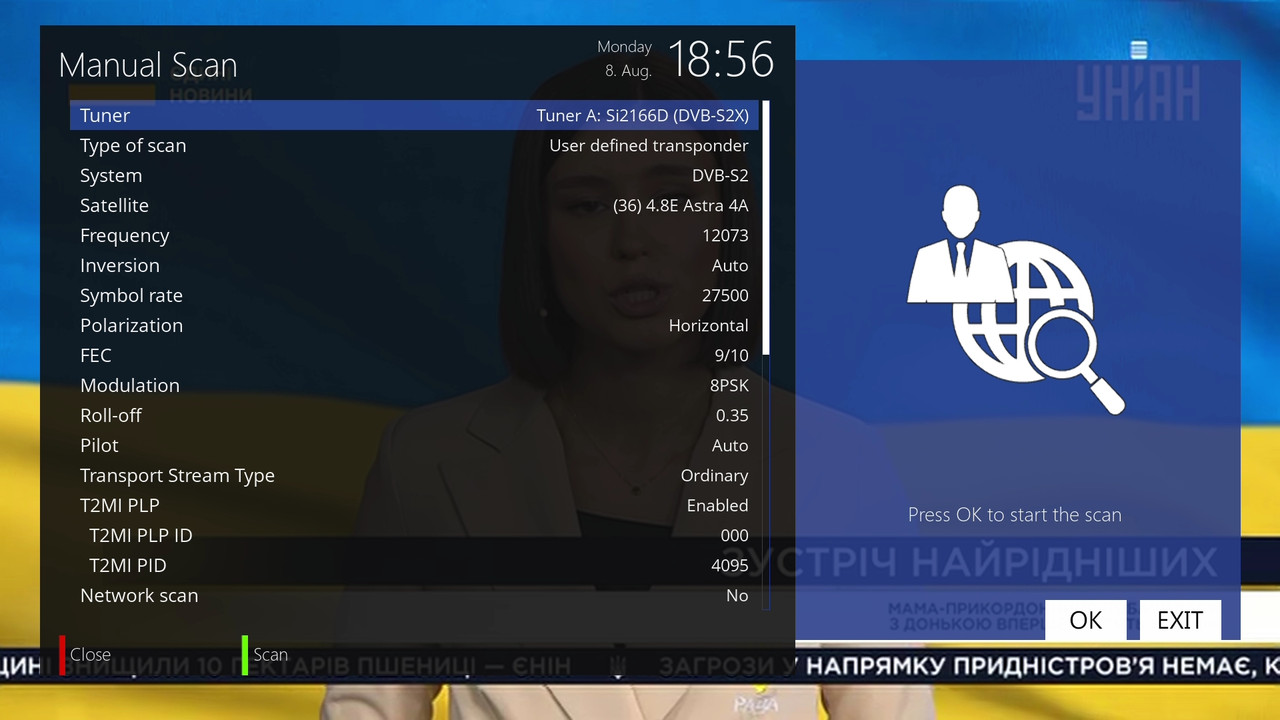

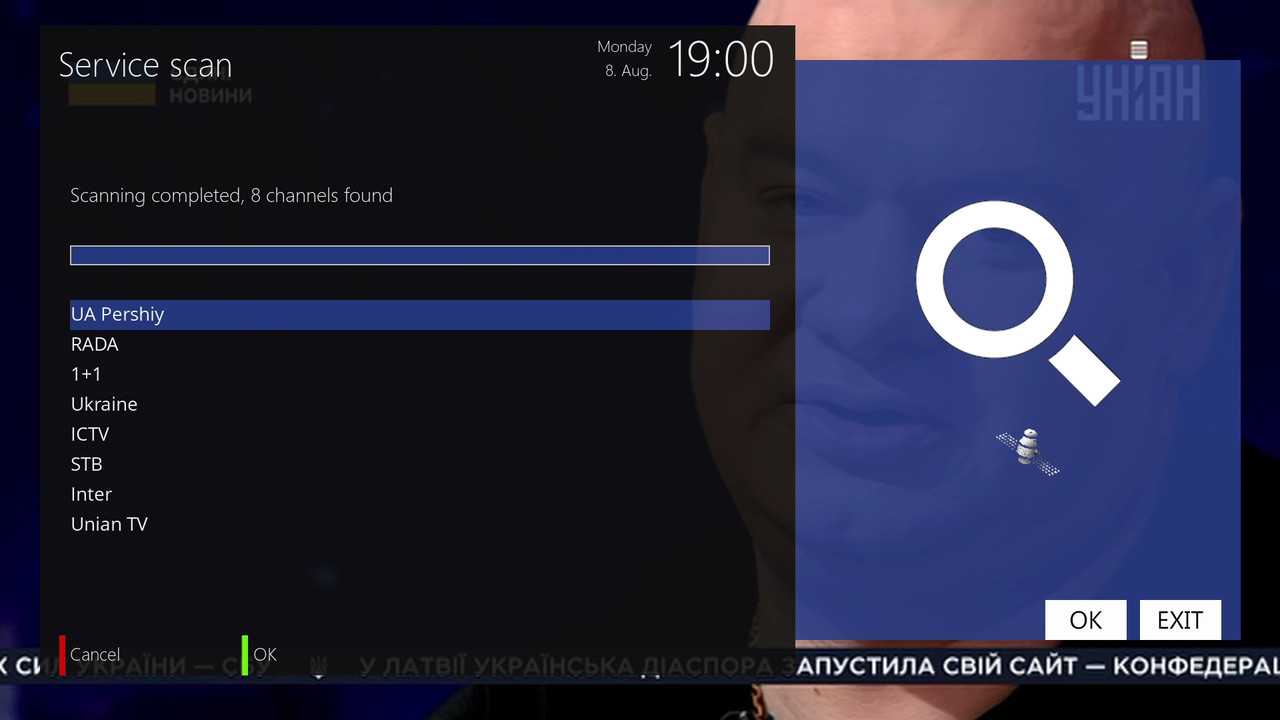

They scan in on my Octagon SF8008 mini which has HW T2-MI support (no need for Astra-SM) but I have to scan as DVB-S2 in Enigma2 rather than DVB-S for the T2MI menu options (PLP, PID) to appear as they are hidden for DVB-S. This works fine though and they then successfully scan.

Note that the PID is 4095 rather than the usual PID 4096. I can confirm that there is no MIS.
