Top Tip T2-MI reception on E2 STB with SDG image - A complete step by step guide

[stephan94]

Hello Enosat,
when the image allows it I prefer to enter the data with the transponders Editor plugin (for example with OpenPLI) I find it more practical, because I don't need the PC to modify the PID.
the MIO4K normally finds all the PID different from 4096 (example a blindscan on 40,5W PID 64)
in the case of 4,9 East it doesn't work (probably the stream data is not 100% compliant).



[suedschwede]

The 4096 is defined in the frontendparms.h, everything deviating must be entered manually or in the satellites.xml, as Enosat has already mentioned.

Die 4096 ist in der frontendparms.h so festgelegt, alles abweichende muß wie Enosat schon erwähnt hat manuell oder in der satellites.xml eigegeben werden.

    };
    enum {
        PLS_Default_Gold_Code, PLS_Default_Root_Code
    };
    enum {
        No_T2MI_PLP_Id = eDVBFrontendParametersSatellite::No_Stream_Id_Filter, T2MI_Default_Pid = 4096
    };



[EnoSat]

Hello Enosat,
when the image allows it I prefer to enter the data with the transponders Editor plugin (for example with OpenPLI) I find it more practical, because I don't need the PC to modify the PID.
the MIO4K normally finds all the PID different from 4096 (example a blindscan on 40,5W PID 64)
in the case of 4,9 East it doesn't work (probably the stream data is not 100% compliant).

How does blindscan work on transponders where there are more T2-MI pids? In my region, there is a minimum of T2-MI transponders per 100cm dish.



[stephan94]

How does blindscan work on transponders where there are more T2-MI pids? In my region, there is a minimum of T2-MI transponders per 100cm dish.

please give me a satellite where I can test.



[stephan94]

The example of a frequency with two mutistreams, the second one is a T2MI
the result of the blindscan and the programs found



[EnoSat]

yes, but still used only one T2-MI pid in stream



[solly]

what editor to change parameter c:150fff ,c:151001 ?



[EnoSat]

any that preserves the UNIX environment
my favorite:



[jsda30]

any that preserves the UNIX environment
my favorite:
View attachment 144789

name?



[stephan94]

How does blindscan work on transponders where there are more T2-MI pids? In my region, there is a minimum of T2-MI transponders per 100cm dish.

I have not found a satellite where on the same transponder there are T2Mi with different PIDs.



[EnoSat]

name?

PSpad



[mola100]

What about 53e?



[suedschwede]

I have not found a satellite where on the same transponder there are T2Mi with different PIDs.

22W 3749L 47000 3/4 S2 16APSK (4097+4099) (MIS+T2MI)
3E 4063L 33900 3/5 S2 QPSK (4096+4098+4100) (MIS+T2MI)
3E 4099L 33900 3/5 S2 QPSK (4097+4099) (MIS+T2MI)



[stephan94]

Thank you for these frequencies suedschwede
Unfortunately, with 1,80m I am too short.
No signal on 3°W and 9,3 dB on 22°W is not enough.



[MOHAMED_OS]

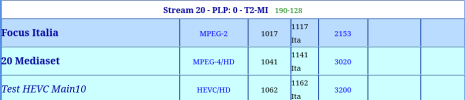

12585 H DVB-S2/8PSK PLS Gold 262140 ​

35500 2/3​



[EnoSat]

useless to insert a page when the most important thing is not there - the T2-MI pid value

<transponder frequency="12585000" symbol_rate="35500000" polarization="0" fec_inner="2" system="1" modulation="2" pls_mode="1" pls_code="262140" is_id="20" t2mi_plp_id="0" t2mi_pid="4646"/>

Edit: So I added it there so it wouldn't be so useless



[Captain Jack]

useless to insert a page when the most important thing is not there - the T2-MI pid value

Just as useless as this message



[maxi_power]

The orbital position of the satellite is also missing...



[MOHAMED_OS]

The orbital position of the satellite is also missing...

Eutelsat 5 West A / Eutelsat 5 West B @ 5° W



[MOHAMED_OS]

this config from ciefp but not work

0dde3129:0110:0000
    s 12585000:35500000:0:2:-50:2:0:1:2:0:2:20:262140:1
/

#DESCRIPTION --- Mediaset T2MI mis20 ---
#SERVICE 1:0:1:869:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/12585plp0:Focus (provvisorio)
#DESCRIPTION Focus (provvisorio)
#SERVICE 1:0:1:BCC:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/12585plp0:20Mediaset HD
#DESCRIPTION 20Mediaset HD
#SERVICE 1:0:1:C80:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/12585plp0:Test HEVC Main10
#DESCRIPTION Test HEVC Main10
#SERVICE 1:64:47F:0:0:0:0:0:0:0::-- SID MIS20 --
#DESCRIPTION -- SID MIS20 --
#SERVICE 1:0:1:320:110:0:DDE3129:0:0:0:

-- RL Piemonte 1  5.0W

f12585piem0 = make_t2mi_decap({
        name = "12585H T2-MI  PLP0",
        input = "http://127.0.0.1:8001/1:0:1:320:110:0:DDE3129:0:0:0", -- required
        plp = 0,
        pnr = 0,
        pid = 4096,
})

make_channel({
        name = "12585piem0 ", input = { "t2mi://f12585piem0", },
        output = { "http://0.0.0.0:9999/rtrs/12585plp0", },
})
