MOHAMED_OS said:
this config from ciefp but not work
Click to expand...
So go through it over & over again until you have figured out where the problem is - we provide general guidance only - if you dont want to do the hard work yourself & want to rely on others doing the work then you do without.

MOHAMED_OS

MOHAMED_OS

New Member
Joined
Feb 27, 2022
Messages
5
Reaction score
1
Points
3
Age
33
My Satellite Setup
enigma2 & motor 30w to 52E
My Location
el eulma
@Analoguesat
the error how to get full info for channel in ts file
in enigma2
in enigma2 not get full info for channel and not have much experience in editing and adding channels
:wacko:

Analoguesat

Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,120
Reaction score
11,568
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
MOHAMED_OS said:
@Analoguesat
the error how to get full info for channel in ts file
in enigma2
in enigma2 not get full info for channel and not have much experience in editing and adding channels
:wacko:
Click to expand...
So learn how it works - Enigma operating systems are bloody hard work to get your head around, but if you want to get the most out of a receiver you have to spend MONTHS working on it. There are no shortcuts here - only you can decide whether you want to put the effort in

I'll tell you truthfully how I got on with E2 receivers. Every time I used one it annoyed the hell out of me with the illogical menus & horrendous systems of doing things. It got to the point where I took my E2 receiver out of service & threw it VERY HARD in the local recycling bin at the local recycling centre! It was most satisfying to see the plastic front shatter as it hit the steel bin!!

MOHAMED_OS

MOHAMED_OS

New Member
Joined
Feb 27, 2022
Messages
5
Reaction score
1
Points
3
Age
33
My Satellite Setup
enigma2 & motor 30w to 52E
My Location
el eulma
EnoSat said:
View attachment 146058View attachment 146057View attachment 146056
Click to expand...
work wit this config
www.satellites.co.uk

Top Tip - T2-MI reception on E2 STB with SDG image - A complete step by step guide

Hello Enosat, when the image allows it I prefer to enter the data with the transponders Editor plugin (for example with OpenPLI) I find it more practical, because I don't need the PC to modify the PID. the MIO4K normally finds all the PID different from 4096 (example a blindscan on 40,5W PID 64)...
www.satellites.co.uk www.satellites.co.uk

ciefp

ciefp

New Member
Joined
May 13, 2018
Messages
7
Reaction score
19
Points
3
Age
51
My Satellite Setup
68E-30W
My Location
Kisac
MOHAMED_OS said:
this config from ciefp but not work

Code:
0dde3129:0110:0000
    s 12585000:35500000:0:2:-50:2:0:1:2:0:2:20:262140:1
/

Code:
#DESCRIPTION --- Mediaset T2MI mis20 ---
#SERVICE 1:0:1:869:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/12585plp0:Focus (provvisorio)
#DESCRIPTION Focus (provvisorio)
#SERVICE 1:0:1:BCC:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/12585plp0:20Mediaset HD
#DESCRIPTION 20Mediaset HD
#SERVICE 1:0:1:C80:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/12585plp0:Test HEVC Main10
#DESCRIPTION Test HEVC Main10
#SERVICE 1:64:47F:0:0:0:0:0:0:0::-- SID MIS20 --
#DESCRIPTION -- SID MIS20 --
#SERVICE 1:0:1:320:110:0:DDE3129:0:0:0:

Code:
-- RL Piemonte 1  5.0W

f12585piem0 = make_t2mi_decap({
        name = "12585H T2-MI  PLP0",
        input = "http://127.0.0.1:8001/1:0:1:320:110:0:DDE3129:0:0:0", -- required
        plp = 0,
        pnr = 0,
        pid = 4096,
})

make_channel({
        name = "12585piem0 ", input = { "t2mi://f12585piem0", },
        output = { "http://0.0.0.0:9999/rtrs/12585plp0", },
})
Click to expand...


The pid has changed, from 4096 to 4646.
c:151226

Code:
root@vuzero4k:~# astra --analyze "http://127.0.0.1:8001/1:0:1:1:400:0:DDE3129:0:0:0:"
Nov 23 20:33:39: INFO: Starting Astra SM 0.2
Nov 23 20:33:39: INFO: PAT: tsid: 1024
Nov 23 20:33:39: INFO: PAT: pid: 256 PMT pnr: 1
Nov 23 20:33:39: INFO: PAT: crc32: 0x375997EB
Nov 23 20:33:39: INFO: PMT: pnr: 1
Nov 23 20:33:39: INFO: PMT: pid: 4646 PCR
Nov 23 20:33:39: INFO: DATA: pid: 4646 type: Private PES, ISO/IEC 13818-1 (0x06)
Nov 23 20:33:39: INFO: DATA: descriptor: 0x7F0411000000
Nov 23 20:33:39: INFO: PMT: crc32: 0x29B6A93D
Nov 23 20:33:40: INFO: Bitrate: 26766 Kbit/s
Nov 23 20:33:41: INFO: Bitrate: 34742 Kbit/s
Nov 23 20:33:42: INFO: Bitrate: 33163 Kbit/s
Nov 23 20:33:43: INFO: Bitrate: 31583 Kbit/s
Nov 23 20:33:44: INFO: Bitrate: 33163 Kbit/s
Nov 23 20:33:45: INFO: Bitrate: 33163 Kbit/s
^CNov 23 20:33:45: INFO: [main] shutting down
root@vuzero4k:~# astra --analyze "t2mi://#t2mi_pid=4646&t2mi_input=http://127.0.0.1:8001/1:0:1:1:400:0:DDE3129:0
:0:0:"
Nov 23 20:43:35: INFO: Starting Astra SM 0.2
Nov 23 20:43:35: INFO: [t2mi/analyze] L1-current: PLP 0 (Data Type 1), group 1 (*)
Nov 23 20:43:35: INFO: [t2mi/analyze] selected data PLP 0 (auto)
Nov 23 20:43:35: INFO: PAT: tsid: 128
Nov 23 20:43:35: INFO: PAT: pid: 16 NIT
Nov 23 20:43:35: INFO: PAT: pid: 202 PMT pnr: 3020
Nov 23 20:43:35: INFO: PAT: pid: 200 PMT pnr: 3200
Nov 23 20:43:35: INFO: PAT: pid: 253 PMT pnr: 2153
Nov 23 20:43:35: INFO: PAT: crc32: 0x970F9651
Nov 23 20:43:35: INFO: PMT: pnr: 3020
Nov 23 20:43:35: INFO: PMT: pid: 1041 PCR
Nov 23 20:43:35: INFO: VIDEO: pid: 1041 type: MPEG-4 AVC/H.264, ISO/IEC 14496-10 (0x1B)
Nov 23 20:43:35: INFO: DATA: pid: 1141 type: Private PES, ISO/IEC 13818-1 (0x06)
Nov 23 20:43:35: INFO: DATA: Language: ita
Nov 23 20:43:35: INFO: DATA: descriptor: 0x7A0280C2
Nov 23 20:43:35: INFO: AUDIO: pid: 1241 type: LATM AAC, ISO/IEC 14496-3 (0x11)
Nov 23 20:43:35: INFO: AUDIO: descriptor: 0x1C0158
Nov 23 20:43:35: INFO: AUDIO: descriptor: 0x7C025800
Nov 23 20:43:35: INFO: AUDIO: Language: eng
Nov 23 20:43:35: INFO: PMT: crc32: 0xDE3722E7
Nov 23 20:43:35: INFO: PMT: pnr: 3200
Nov 23 20:43:35: INFO: PMT: pid: 1062 PCR
Nov 23 20:43:35: INFO: VIDEO: pid: 1062 type: HEVC/H.265, ISO/IEC 23008-2 (0x24)
Nov 23 20:43:35: INFO: VIDEO: descriptor: 0x380F0220000000B00000000000788F1F1F
Nov 23 20:43:35: INFO: VIDEO: Stream ID: 0
Nov 23 20:43:35: INFO: AUDIO: pid: 1162 type: LATM AAC, ISO/IEC 14496-3 (0x11)
Nov 23 20:43:35: INFO: AUDIO: descriptor: 0x7C025800
Nov 23 20:43:35: INFO: AUDIO: descriptor: 0x1C0158
Nov 23 20:43:35: INFO: AUDIO: Language: ita
Nov 23 20:43:35: INFO: PMT: crc32: 0x705695D5
Nov 23 20:43:35: INFO: PMT: pnr: 2153
Nov 23 20:43:35: INFO: PMT: pid: 1017 PCR
Nov 23 20:43:35: INFO: VIDEO: pid: 1017 type: MPEG-2 video, ISO/IEC 13818-2 (0x02)
Nov 23 20:43:35: INFO: AUDIO: pid: 1117 type: MPEG-2 audio, ISO/IEC 13818-3 (0x04)
Nov 23 20:43:35: INFO: AUDIO: Language: ita
Nov 23 20:43:35: INFO: PMT: crc32: 0x1C51544B
Nov 23 20:43:35: INFO: SDT: tsid: 128
Nov 23 20:43:35: INFO: SDT: sid: 2153
Nov 23 20:43:35: INFO: SDT:    Service: Focus (provvisorio)
Nov 23 20:43:35: INFO: SDT:    Provider: Mediaset
Nov 23 20:43:35: INFO: SDT: sid: 3020
Nov 23 20:43:35: INFO: SDT:    Service: 20Mediaset HD
Nov 23 20:43:35: INFO: SDT:    Provider: Mediaset
Nov 23 20:43:35: INFO: SDT: sid: 3200
Nov 23 20:43:35: INFO: SDT:    Service: Test HEVC Main10
Nov 23 20:43:35: INFO: SDT:    Provider: Mediaset
Nov 23 20:43:35: INFO: SDT:    descriptor: 0x50060901006E6F6C
Nov 23 20:43:35: INFO: SDT: crc32: 0xDFAC3301
Nov 23 20:43:36: INFO: Bitrate: 29056 Kbit/s
Nov 23 20:43:37: INFO: Bitrate: 33975 Kbit/s
Nov 23 20:43:38: INFO: Bitrate: 29318 Kbit/s
Nov 23 20:43:39: INFO: Bitrate: 32378 Kbit/s
^CNov 23 20:43:40: INFO: [main] shutting down
root@vuzero4k:~#

ciefp

ciefp

New Member
Joined
May 13, 2018
Messages
7
Reaction score
19
Points
3
Age
51
My Satellite Setup
68E-30W
My Location
Kisac
Code:
#SERVICE 1:64:47E:0:0:0:0:0:0:0::--- Mediaset T2MI mis20 ---
#DESCRIPTION --- Mediaset T2MI mis20 ---
#SERVICE 1:0:1:869:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/mediaset0/12585plp0:Focus (provvisorio)
#DESCRIPTION Focus (provvisorio)
#SERVICE 1:0:1:BCC:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/mediaset0/12585plp0:20Mediaset HD
#DESCRIPTION 20Mediaset HD
#SERVICE 1:0:1:C80:3129:14:0:0:0:0:http%3a//0.0.0.0%3a9999/mediaset0/12585plp0:Test HEVC Main10
#DESCRIPTION Test HEVC Main10
#SERVICE 1:64:47F:0:0:0:0:0:0:0::-- SID MIS20 --
#DESCRIPTION -- SID MIS20 --
#SERVICE 1:0:1:1:400:0:DDE3129:0:0:0:

Code:
-- Mediaset  5.0W

f12585mediaset0 = make_t2mi_decap({
        name = "12585H T2-MI  PLP0",
        input = "http://127.0.0.1:8001/1:0:1:1:400:0:DDE3129:0:0:0", -- required
        plp = 0,
        pnr = 0,
        pid = 4646,
})

make_channel({
        name = "12585mediaset0 ", input = { "t2mi://f12585mediaset0", },
        output = { "http://0.0.0.0:9999/mediaset0/12585plp0", },
})


Attachments

  • 20221123_20571852.jpg
    364 KB · Views: 14
  • 20221123_20573837.jpg
    467.4 KB · Views: 15
  • 20221123_20574856.jpg
    148.6 KB · Views: 35
Last edited:
EnoSat

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
822
Reaction score
768
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
ciefp said:
The pid has changed, from 4096 to 4646.
c:151226
Click to expand...
If the T2MI pid is entered (or scanned) in the transponder line and the image supports it, the T2MI pid from the service will be ignored
Code:
0dde3129:0400:0000
    s 12585000:35500000:0:2:-50:2:0:1:2:0:2:20:262140:1:0:4646
/

Last edited:
J

jerome04

New Member
Joined
Nov 30, 2022
Messages
7
Reaction score
2
Points
3
Age
40
My Satellite Setup
Motorized Dish 30W/52E
Vu+Duo4KSE
My Location
France

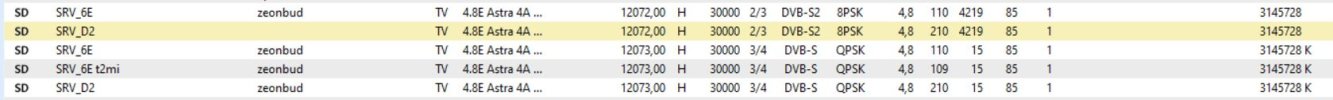

Hello everyone. I'm new here and I'm asking you for Astra4's T2MI channels. PID 4097 works! , but impossible for PID 4095, I tried everything and no image on the channels. Can you help me ?

I tried to modify the transponders in satellites.xml by adding the PIDs: the receiver only finds SRV D2 and SRV 6E and nothing else! I will post pictures it will be easier. Thank you in advance.


Attachments

  • 5.JPG
    137.8 KB · Views: 28
  • 4.JPG
    134.5 KB · Views: 25
  • 3.JPG
    44.6 KB · Views: 24
  • 2.JPG
    101.9 KB · Views: 25
  • 1.JPG
    64.8 KB · Views: 25
Analoguesat

Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
51,120
Reaction score
11,568
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
jerome04 said:
Hello everyone. I'm new here and I'm asking you for Astra4's T2MI channels. PID 4097 works! , but impossible for PID 4095, I tried everything and no image on the channels. Can you help me ?
Click to expand...
So start again - work through every possible issue & see if its definitely correct. We dont hold your hands & give you step by step answers on this forum - you have to do that hard work & most of the groundwork yourself. Its the only way to learn

J

jerome04

New Member
Joined
Nov 30, 2022
Messages
7
Reaction score
2
Points
3
Age
40
My Satellite Setup
Motorized Dish 30W/52E
Vu+Duo4KSE
My Location
France
Analoguesat said:
So start again - work through every possible issue & see if its definitely correct. We dont hold your hands & give you step by step answers on this forum - you have to do that hard work & most of the groundwork yourself. Its the only way to learn
Click to expand...
ok I'll go elsewhere!
please tell me the procedure to close my account I can not find.

Last edited:
J

jerome04

New Member
Joined
Nov 30, 2022
Messages
7
Reaction score
2
Points
3
Age
40
My Satellite Setup
Motorized Dish 30W/52E
Vu+Duo4KSE
My Location
France
it's good I got there! finally keep my account! thank you

J

j-f-k

Member
Joined
Jan 22, 2017
Messages
14
Reaction score
2
Points
3
Age
48
My Satellite Setup
1,6m prime focus aluminium dish + 0,3dB Invacom KU-Band LNB, 1,8m prime focus mesh dish + 25K C-Band LNB
My Location
Lithuania
duck77 said:
Another from 49E

4018 L



Code:
f4018rtrs1 = make_t2mi_decap({

        name = "T2_MI_+1_Ulyanovsk",

        input = "http://127.0.0.1:8001/1:0:1:320:1:1:1EB0FB2:0:0:0:",

        plp = 1,

        pnr = 0,

        pid = 4096,

})



make_channel({

        name = "4018rtrs1", input = { "t2mi://f4018rtrs1", },

        output = { "http://0.0.0.0:9999/rtrs/4018plp1", },

})




#SERVICE 1:0:1:3FC:FB2:1:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/4018plp1:GTRK Ulyanovsk
#DESCRIPTION GTRK Ulyanovsk
#SERVICE 1:0:1:42E:FB2:1:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/4018plp1:Rossiya 24 Ulyanovsk
#DESCRIPTION Rossiya 24 Ulyanovsk
#SERVICE 1:0:1:442:FB2:1:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/4018plp1:OTR Reportyor 73 (Obshestvennoe TV Rossii)
#DESCRIPTION OTR Reportyor 73 (Obshestvennoe TV Rossii)
#SERVICE 1:0:1:46A:FB2:1:0:0:0:0:http%3a//0.0.0.0%3a9999/rtrs/4018plp1:Radio Rossii (0h)
#DESCRIPTION Radio Rossii (0h)
Click to expand...
Seems that only 3654L works on 49E now. On other frequencies (L) signal exists, but no data.. Can you confirm that?

EnoSat

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
822
Reaction score
768
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
tune the frequencies and use the analysis command in astra-sm to check whether the data is also available

EnoSat

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
822
Reaction score
768
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
and you also edited lamedb when you enter stream type 1 in the analysis, after scan stream type 64

Last edited:
J

j-f-k

Member
Joined
Jan 22, 2017
Messages
14
Reaction score
2
Points
3
Age
48
My Satellite Setup
1,6m prime focus aluminium dish + 0,3dB Invacom KU-Band LNB, 1,8m prime focus mesh dish + 25K C-Band LNB
My Location
Lithuania
lamedb:

Code:
01eb0e2b:03a2:0000
    s 3627000:20580000:2:4:491:2:0:1:1:0:2:-1:0:1:0:4096
/

0320:01eb0e2b:03a2:0000:1:0:0
3627V SID 0x320
p:RTRS

EnoSat

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
822
Reaction score
768
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
yes, the command from post 417 applies to this modified one, but the DATApid is missing there and the colon is extra (:)
after scan , without update lamedb try this
Code:
root@mutant51:~# astra --analyze "http://127.0.0.1:8001/1:0:64:320:3A2:0:D84AD7E:0:0:0"
Dec 11 15:09:04: INFO: Starting Astra SM 0.2
Dec 11 15:09:05: INFO: PAT: tsid: 930
Dec 11 15:09:05: INFO: PAT: pid: 50 PMT pnr: 800
Dec 11 15:09:05: INFO: PAT: crc32: 0x24F85C1A
Dec 11 15:09:05: INFO: Bitrate: 30004 Kbit/s
Dec 11 15:09:06: INFO: Bitrate: 31583 Kbit/s
Dec 11 15:09:07: INFO: Bitrate: 31583 Kbit/s

Top
