7E (Eutelsat 7B/7C)

SimonE

Regular Member
Joined
Feb 26, 2015
Messages
348
Reaction score
344
Points
63
Age
79
My Satellite Setup
1.2m CM dish with elevation jack, Supermount 1224 H-H rotator, Octagon SX88+, DR.HD D15, GT Media Combo, Ku PLL LNB, C Band: Titanium C1W-PLL, Ka Band: XMW R9216AF with FD9000 feedhorn, Inverto Saorsat LNB and Inverto Ka/Ku LNB . Zone 2 dish pointing at 28E with Octagon SF8008.
My Location
Gloucestershire, UK
11595V Like John I am getting a similar signal strength here in the west of England. No lock with the HD Ranger.


tom55

Member
Joined
Sep 26, 2022
Messages
81
Reaction score
21
Points
8
My Satellite Setup
TD110
My Location
South
No signal at 11595V for me, 2.4m dish in North Italy.
Just noted a mux of BBC radio feeds at 10720V SR 27500 DVB-S. It was a transponder used by Digiturk prior to its move on Turksat satellite.
With 2.4m you should definitely be able to pick it up. Try to use analyzer and constellation monitor. Maybe it is s2x or NS3/4


7mdish

Regular Member
Joined
Aug 11, 2013
Messages
632
Reaction score
262
Points
63
My Satellite Setup
CM 2.4m motorised offset dish, Viking Ku-band 2-ports motorised feed, 2 SMW LNBs, RC2000A, Dreambox DM920.
My Location
Milan, Italy
Just tried with TBS, I must test again. Hoping to test with Novelsat soon, not today.


moonbase

Small Dish Man
Joined
Mar 29, 2004
Messages
4,508
Reaction score
4,633
Points
113
My Satellite Setup
.
My Location
UK
Just tried with TBS, I must test again. Hoping to test with Novelsat soon, not today.

The frequency of 11595V does not look like S2X or NS3/NS4.


tom55

Member
Joined
Sep 26, 2022
Messages
81
Reaction score
21
Points
8
My Satellite Setup
TD110
My Location
South
So the channel is available across europe with similar power in different locations. That would indicate it is not africa or other beam. And yesterday there was a feed overlapping with this channel.
What does it mean, there is another satellite at 7e?


SimonE

Regular Member
Joined
Feb 26, 2015
Messages
348
Reaction score
344
Points
63
Age
79
My Satellite Setup
1.2m CM dish with elevation jack, Supermount 1224 H-H rotator, Octagon SX88+, DR.HD D15, GT Media Combo, Ku PLL LNB, C Band: Titanium C1W-PLL, Ka Band: XMW R9216AF with FD9000 feedhorn, Inverto Saorsat LNB and Inverto Ka/Ku LNB . Zone 2 dish pointing at 28E with Octagon SF8008.
My Location
Gloucestershire, UK
At 7E there's Eutelsat 7B, 7C and Eutelsat Konnect nearby at 7.2E. It may just be the D8 transponder switched on without any traffic going through it?


dreamsat

Specialist Contributor
Joined
Mar 23, 2018
Messages
1,291
Reaction score
1,961
Points
113
My Satellite Setup
2,20m Kathrein, 3,7m Andrew, KU,KA,C,C-Ext. LNBs
My Location
germany
That's exactly how it will be. Yesterday two Brazilian football feeds were activated on 11582 V and 11603 V.

best regards


Captain Jack

Retired human
Joined
Oct 21, 2006
Messages
11,860
Reaction score
8,042
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Chaps - can someone check frequency 10721H 22000 3/4 on this satellite? I am supposed to be getting BBC Persian on this but I get literally nothing. The nearby frequency in V works fine and so do other H polarities.


ozumo

te wo tsuite
Staff member
Joined
May 26, 2020
Messages
5,273
Reaction score
2,661
Points
113
My Satellite Setup
Raven mk2 zone 2 x4, Channel Master: 90cm x3, 1.2m x2, 1.8m PF. CM polar mount x2, Az/El x3.
My Location
South Durham

SatSearcher

Regular Member
Joined
Feb 2, 2007
Messages
310
Reaction score
236
Points
43
Age
49
My Satellite Setup
105cm dish with 0.1 smart LNB. TBS 6903 & TBS 5925 Card & Octagon SF4008. 55E-65W.
My Location
West Yorkshire
I've always found this Europe B beam really odd! The UK is pretty close to the edge of the footprint, yet I've never seen the slightest hint of anything from it. I don't just mean I can't lock anything, but literally can't see any indication that there's anything there, complete flat line on scans. Most of the time you can see a bump on the scan to indicate something, I even get a couple of bumps when scanning the new Nilesat 301, but from this beam, absolutely nothing whatsoever!


Captain Jack

Retired human
Joined
Oct 21, 2006
Messages
11,860
Reaction score
8,042
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Ooohhhh... I didn't even bother checking for the footprint. I saw Europe in the footprint name and assumed it would boom in.

Yeah there's zilch in this frequency - looking on Dr HD F15, I see signal even before it locks but there's nothing at all. Like it's not there.


moonbase

Small Dish Man
Joined
Mar 29, 2004
Messages
4,508
Reaction score
4,633
Points
113
My Satellite Setup
.
My Location
UK
Chaps - can someone check frequency 10721H 22000 3/4 on this satellite? I am supposed to be getting BBC Persian on this but I get literally nothing. The nearby frequency in V works fine and so do other H polarities.


@Captain Jack

I am getting 5.4dB with pictures for BBC Persian from 7.0E on the frequency you mention.
Surrey location using a Precision 1.5m prime focus dish with Invacom Quad C120 LNB.

.


Attachments

  • 7.0E_20230304_BBCPersian.jpg
    244.2 KB · Views: 12
Last edited:

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
I don't think it helps to compare the signal in different areas of Europe, especially those on the island. But the only comparison that can be made is that the signal is also weak on 10720 H,22000,3/4, as in your area.
But even in such conditions, it can be locked. Luckily the mux does not have 8PSK mode.


Attachments

  • 7.0E_10720 H_Persioan pack_2023-03-04_20-48-32.jpg
    7.0E_10720 H_Persioan pack_2023-03-04_20-48-32.jpg
    485.9 KB · Views: 10
  • 7.0E_10700-11700 H_2023-03-04_21-13-34.jpg
    7.0E_10700-11700 H_2023-03-04_21-13-34.jpg
    207.5 KB · Views: 11

SatSearcher

Regular Member
Joined
Feb 2, 2007
Messages
310
Reaction score
236
Points
43
Age
49
My Satellite Setup
105cm dish with 0.1 smart LNB. TBS 6903 & TBS 5925 Card & Octagon SF4008. 55E-65W.
My Location
West Yorkshire
Think it's safe to say that Eutelsat don't want the UK seeing this beam for some reason!


lovelyperson

Dreamer
Joined
Sep 8, 2004
Messages
1,047
Reaction score
1,882
Points
113
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
TBS 5925 USB
Octagon SF8008 4k Twin + SF8008 SUPREME + Uclan Ustym 4K PRO Twin
GTMedia V8 UHD
GTMedia GTcombo x 2
Goldmaster SR525 HD
Geant-OTT 750 ALLURE EVO 4K + Sat-illimitè F300 hyper
62.0ºE - 63.0ºW
My Location
Alicante, España
Although supposedly outside the 'Europe B beam' not bad here, Alicante 1.2m.......clear skies:cool:



Captain Jack

Retired human
Joined
Oct 21, 2006
Messages
11,860
Reaction score
8,042
Points
113
My Satellite Setup
See signature
My Location
North Somerset
I am going to check some other frequencies Europe B beam to see what's going on. Maybe like @satesco says, this is just a particularly weak transponder.


moonbase

Small Dish Man
Joined
Mar 29, 2004
Messages
4,508
Reaction score
4,633
Points
113
My Satellite Setup
.
My Location
UK
I am going to check some other frequencies Europe B beam to see what's going on. Maybe like @satesco says, this is just a particularly weak transponder.


BBC Persian up to 6.0dB now. 'ere in leafy Surrey with a 1.5m dish


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
I am going to check some other frequencies Europe B beam to see what's going on. Maybe like @satesco says, this is just a particularly weak transponder.
I am just now finding out that in England, the reception of this beam was/is a big problem. But I must say that since I received Eutelsat 7B from the beginning, the signal on 10720 H has always been weak. Only in the morning, in good weather conditions, it increases by 2 or 3 dB.
It is true that, although my area is out of the spot, I am still closer to the beam. That helps me to catch it though
And I wonder why, knowing there is a problem with the signal reception in your area, you only ask the question now. Or were there times when the European B beam could catch it?

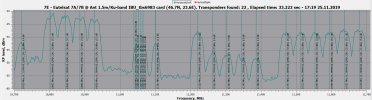

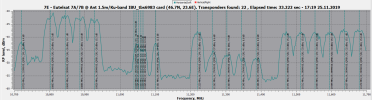

Here's what signal I had on this spot in 2019 at 10720 H and between 11200-11400 H, about the same signal level as today.


Attachments

  • 7.0E_10700-11700 H_2019-11-25_17-20-22.png
    7.0E_10700-11700 H_2019-11-25_17-20-22.png
    120.5 KB · Views: 8

lovelyperson

Dreamer
Joined
Sep 8, 2004
Messages
1,047
Reaction score
1,882
Points
113
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
TBS 5925 USB
Octagon SF8008 4k Twin + SF8008 SUPREME + Uclan Ustym 4K PRO Twin
GTMedia V8 UHD
GTMedia GTcombo x 2
Goldmaster SR525 HD
Geant-OTT 750 ALLURE EVO 4K + Sat-illimitè F300 hyper
62.0ºE - 63.0ºW
My Location
Alicante, España
Scan 23.00hrs seems to show a stable recption of the 'European B Beam' known transponders (as, Flysat) highlighted in yellow......... Alicante 1.2m............
