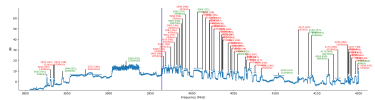

@deeptho, Thanks for fixing 22.0W for C-band :Y


Attachments

  • 22.0W__3800-4200 L.png
    22.0W__3800-4200 L.png
    134.5 KB · Views: 66

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
A first test service stream with neumoDVB(v.1.6)


Attachments

  • Serviece stream_2024-02-19_10-01.png
    Serviece stream_2024-02-19_10-01.png
    476.6 KB · Views: 28
  • neumoDVB_Service stream_2024-02-19_09-57.png
    neumoDVB_Service stream_2024-02-19_09-57.png
    714 KB · Views: 25

Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
@deeptho

Unable to start neumodvb with v.6.1

Syntax error due apparently to missing bracket in gui/neumodvb/util.py. Adding the bracket makes no difference.

Any idea what the problem might be?

Changes in util.py pre and post installing v.6.1 : -



TIA


Attachments

  • Syntax Error v1.6.png
    Syntax Error v1.6.png
    55 KB · Views: 16
  • uti.py pre_6.1.png
    uti.py pre_6.1.png
    102.9 KB · Views: 12
  • util.py v.6.1.png
    util.py v.6.1.png
    103 KB · Views: 25

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
@deeptho

Unable to start neumodvb with v.6.1

Syntax error due apparently to missing bracket in gui/neumodvb/util.py. Adding the bracket makes no difference.

Any idea what the problem might be?

Changes in util.py pre and post installing v.6.1 : -


TIA
Llew, it is version 1.6, not 6.1
This line was added yesterday. It works for me.
As you do not provide any information for debugging (log files) it is difficult to comment, but I am guessing you
use some other (older?) python version (perhaps raspberri pi?).

I have pushed a small change on github which could make a difference. So please try that.


Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
Llew, it is version 1.6, not 6.1
This line was added yesterday. It works for me.
As you do not provide any information for debugging (log files) it is difficult to comment, but I am guessing you
use some other (older?) python version (perhaps raspberri pi?).

I have pushed a small change on github which could make a difference. So please try that.
Oops, meant 1.6, sorry.

I have the same problem on my PC using Fedora F39 and Ubuntu 23.1.

I notice satesco had no problem upgrading to v1.6. I'll see if I can find some debug logs.


Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
Panic over. A new build from scratch sorted at least Fedora. Ubuntu to do.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
... The following examples assume that you first create and start a stream for 11013V-11 at 5.0W to port 9999, which contains a DAB substream. Then you can


  • Inspect the DAB channels: tsp -I ip 9999 | ts2na -p 1000 -s 0 | na2ni | ni2out --list
  • Listen to embedded DAB using dablin-gtk: tsp -I ip 9999 | ts2na -p 1000 -s 0 | na2ni | dablin_gtk ...
Test with neumoDVB v.1.6 on RAI Mux DAB streams at 5.0W, with the above command.
I used the tbs6909X card, activating the Italian mux, on 11013 V,35296,23,9PSK, ISI 11 at 5.0W.
Congratulations with thanks :-clap


Attachments

  • DAB Rai_2024-02-20_19-21.png
    DAB Rai_2024-02-20_19-21.png
    215.6 KB · Views: 35
  • 6909x_5.0W_11013 V,35296.23,8PSK,ISI 11_DAB Rai_2024-02-20_19-09.png
    6909x_5.0W_11013 V,35296.23,8PSK,ISI 11_DAB Rai_2024-02-20_19-09.png
    116.9 KB · Views: 23

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Trying to run and listen to the German DAB stream on 12567 V,17015,3/4 at 7.0E following the command line "tsp -I ip 9999 | ts2na -p 1000 -s 0 | na2ni | dablin_gtk" only partly succeeded.
But to succeed completely I changed from "na2ni" to fedi2eti adding Pid, IP, and stream port, as shown in the screenshot.
Of course, something's not going well since I failed with @deepthou's command. What is it?


Attachments

  • neumoDVB_12657 V_DAB stream_2024-02-22_17-38.png
    neumoDVB_12657 V_DAB stream_2024-02-22_17-38.png
    195 KB · Views: 33

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
I have just released neumodvb-1.6.1. This has a few small bug fixes.
You can upgrade in the usual way.

However, the main novelty is that for the first time, I have also provided
packages for Ubuntu23.10 and for fedora 39. I have added a new section
in the documentation explaining how to install them.

I have tested them that at least they start properly when installed in freshly installed distributions.

However, if you will not bother to read the installation instructions, installation can still
go wrong. Making this work was no easy task and took many hours.

The packages themselves can be downloaded here:
Release neumodvb-1.6.1 · deeptho/neumodvb

Do not forget to to install the drivers if needed (e.g., as a first time user). That is still
as complex as before. The good news is that it still seems to work on recent kernels.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
For those of you on other distributions than those supported by neumoDVB, there may be a way
to run neumoDVB as well. I tested this on ububtu22.04, but it should work on any version of any
linux distribution as long as you can installl podman and distrobox

You will need to install the DVB drivers on your exiting distribution first.
Then install podman (and perhaps also docker) and distrobox.
Code:
sudo apt install podman
wget -qO- https://raw.githubusercontent.com/89luca89/distrobox/main/install | sudo sh

Then you can use distrobox to install ubuntu-23.10, or even fedora in a container, without affecting your
existing installation (it will NOT upgrade your operating system).

Code:
distrobox-create --name ubuntu-23.10 --image ubuntu:23.10
distrobox-enter --name ubuntu-23.10
wget https://github.com/tsduck/tsduck/releases/download/v3.36-3528/tsduck_3.36-3528.ubuntu23_amd64.deb
sudo apt install ./tsduck_3.36-3528.ubuntu23_amd64.deb
sudo apt install ./neumodvb-1.6.1.deb
The first command creates the container
The second line will tak quite some time (several minutes), the first time you execute it: it will download ubuntu-23.10 into
the container.
Then we install tsduck and neumodvb. This too will take some time the first time (several minutes), because the installed ubuntu
is initially rather minimal.

Eventually you will see a prompt. Then just type neumodvb. neumodvb will start and will use
databases, recordings, and dvb devices from your current distribution. It will run without slowdowns.

It is also possible to create a command that hides the fact that neumodvb is running in a container. From
that point on, you will see no difference with what you would see if you really had upgraded.

The main downside is that this will require quite some diskspace. Otherwise, there are no differences.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Great, I didn't think it was possible to lock the mux 12647 V,285,7/8 with the 6909X card, where we find the Antenne Dusseldolf radio program.
Only with the 6983 card could this low symbol rate be locked.
Here @deeptho made us dream again when we/I thought that this card has certain limits (under Windows) to process and play difficult parameters. :-clap

The DAB WDR stream on 12644 V,2200,3/4 can be decoded with the command: "tps -I ip 999 | fedi2eti 3000 228.10.1.5 10010 | dablin_gtk" with the 6909x card and the recent neumoDVB version.


Attachments

  • tbs6909x_12646.96 V,285-locked_2024-02-26_14-28.png
    tbs6909x_12646.96 V,285-locked_2024-02-26_14-28.png
    100.1 KB · Views: 16
  • tbs6909x_12647 V_NRW locked_2024-02-26_14-34.png
    tbs6909x_12647 V_NRW locked_2024-02-26_14-34.png
    636.9 KB · Views: 14
  • neumoDVB_12645 V_DAB WDR_2024-02-26_16-31.png
    neumoDVB_12645 V_DAB WDR_2024-02-26_16-31.png
    230.4 KB · Views: 16

Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
770
Reaction score
1,175
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Orbitron SX-10 310 cm + H2H motor + ADL RP2-CPOR feed
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
Octagon SF8008 (Twin & Combo) + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Great, I didn't think it was possible to lock the mux 12647 V,285,7/8 with the 6909X card, where we find the Antenne Dusseldolf radio program.
Only with the 6983 card could this low symbol rate be locked.

No problem for 6925 and even Octagon SF8008 swallows it somehow.

12647V.png 12647Vb.jpg 12647Vc.jpg 12647Vd.jpg


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania

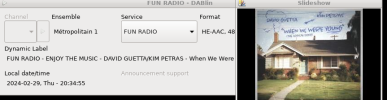

Using the 6909x card for the DAB Metropolitain stream on 11461 H,5780,3/4 at 5.0W with the neumoDVB stream, does not yield any result.

Something is wrong, and I would like to know because with tune-s2 and dvbstream the 6909x card works fine for this DAB.

When you have time for testing, I would ask you to try this card on this DAB French.

Instead, the 6983 card can stream DAB Metropolitain and works fine but with the command highlighted in the screenshot.


Attachments

  • 5.0W__tbs6983_DAB Metro 1_2024-02-29_11-14.png
    5.0W__tbs6983_DAB Metro 1_2024-02-29_11-14.png
    294.7 KB · Views: 12
  • tbs6909x_DAB Metro with dvbstream_2024-02-29_11-58.png
    tbs6909x_DAB Metro with dvbstream_2024-02-29_11-58.png
    336.8 KB · Views: 25

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Using the 6909x card for the DAB Metropolitain stream on 11461 H,5780,3/4 at 5.0W with the neumoDVB stream, does not yield any result.

Something is wrong, and I would like to know because with tune-s2 and dvbstream the 6909x card works fine for this DAB.

When you have time for testing, I would ask you to try this card on this DAB French.

Instead, the 6983 card can stream DAB Metropolitain and works fine but with the command highlighted in the screenshot.
This just works here for the non-dab streams. That means any error is due to the external software being used.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
And dablin_gtk also works
tsp -I ip 9999 | fedi2eti 301 239.0.1.11 5001 | dablin_gtk
You need to stream the full mux as the pid is not referenced in a service



satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Your last reply about the French DAB command line on 11461 H has reassured me that I was not wrong using it, for which I thank you
But I don't know if you succeeded stream DAB with the 6909x card, although indirectly you seem to have answered that you succeeded on this mux.
If so, then I will try again.
Kind regards.


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Your last reply about the French DAB command line on 11461 H has reassured me that I was not wrong using it, for which I thank you
But I don't know if you succeeded stream DAB with the 6909x card, although indirectly you seem to have answered that you succeeded on this mux.
If so, then I will try again.
Kind regards.
Yes. It simply works.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,181
Reaction score
3,160
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania

Attachments

  • tbs6909x_neumoDVB_Metropolitain 1_2024-03-02_09-55.png
    tbs6909x_neumoDVB_Metropolitain 1_2024-03-02_09-55.png
    258.2 KB · Views: 23

Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,259
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
@deeptho

DVB-T scan failing after version1.6. The bug was mentioned in v1.5, but no fix shown in v1.6 changes.

I don't think it's my problem, as w_scan finds all channels in all available muxes from my TX.

neumo log mentions a couple of errors, but goes on to scan and lock 474MHz if I'm reading it correctly.

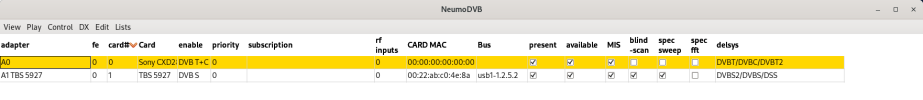

DVBT-T2 frontend.png

scan parameters for DVBT.png

DVBT scan - zilch.png


Attachments

  • neumo.zip
    6.9 KB · Views: 2

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
768
Reaction score
465
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
@deeptho

DVB-T scan failing after version1.6. The bug was mentioned in v1.5, but no fix shown in v1.6 changes.

Llew, what do you mean by "the bug was mentioned in v1.5"?

Can you try the latest master? It may be fixed but I cannot test dvb-t


Top
