With neumoDVB (and Crazyscan) on satellites

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
I have taken Deeptho's suggestion( #754) to post separately on another thread my experience with neumoDVB on the satellites I receive. Loading a topic with dozens or hundreds of interventions only discourages many users who want to install and work with neumoDVB, especially those who have not ventured to work on Linux and who, for this very reason, have problems installing the application (or drivers for dvb cards). It is also expected, given that the technical issues that some users have with neumoDVB can be more easily tracked by them.
I found myself and still have apprehension when I have to change something in neumoDVB
That's why I'm opening this topic in the hope that there will be users who will try to use the stid135(tbs6903x/6909x) chip cards, which I would say stimulated (maybe I'm wrong) Deeptho to develop this application on Linux. And I must admit that, in some ways, neumoDVB is a new experience for those who have used these cards under Windows.
To a certain extent, we are each a kind of beta-tester when using neumoDVB, the more so as each release brings something new or improves certain things. But beyond the experience one has with the app is whether and to what extent it can convince him that it is worth using it as an enthusiast.
I have a vague conviction that those who try to use neumoDVB hope they will receive more muxes, and the results will be better on Linux than on Windows. If there is such a delusion among some users, I should point out that neumoDVB does no more than Crazyscan. The app does nothing more than better manage hardware usage resources, using a different algorithm to exploit the stid135 chip.
But I'll stop here because I don't want to do more wrong than I have done(?).
As I said, I will go on this adventure on satellites with neumoDVB(Linux) and Crazyscan(Windows).
(Those who want to see what I got at 62.0E, look at #753.

Amos 4 @ 65° E

At 65.0E, we have an example where the result depends on the card used, as Deeptho warns, capable of detecting and displaying a signal without locking it. Crazyscan has been designed so that weak signals that cannot be locked are still displayed on the spectrum. This is only valid for STV091X-based cards (6983/6903/USB5927). Other cards cannot display the nolock signal on the spectrum like the 6903x.
Whereas neumoDVB shows a weak signal subliminally without locking it-11360 V,45000,2/3. This is what IQmonitor does with the 6983 cards, and it can indicate the parameters of a mux that cannot be visualized with the image.
I will post the results at 65.0E with 6903x cards with neumoDVB and Crazyscan, and 6983.


Attachments

  • 65.0E_11200-11450 HV_2023-04-14_10-46.png
    65.0E_11200-11450 HV_2023-04-14_10-46.png
    94.1 KB · Views: 21
  • tbs6983_65.0E_11200-11450 H_2023-02-15_20-04-41.png
    tbs6983_65.0E_11200-11450 H_2023-02-15_20-04-41.png
    86.5 KB · Views: 17
  • tbs6903x_65.0E_11200-11450 HV_2023-04-13_21-19-33.png
    tbs6903x_65.0E_11200-11450 HV_2023-04-13_21-19-33.png
    105.2 KB · Views: 11
  • 65.0E_Service_2023-04-14_11-12.png
    75.9 KB · Views: 11
  • 65.0E_Service_2023-04-14_10-48.png
    19.5 KB · Views: 10
  • 65.0e_2023-04-14_11-05.png
    140 KB · Views: 14

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Intelsat 17 @ 66° E
tbs6903x card with neumoDVB and Crazyscan:
neumoDVB:10945-11700 H, 10945-11700 V, 12500-12750; Muxes found, Services,
Crazyscan: 10945-11700 HV, 12500-12750 HV.


Attachments

  • tbs6903x_66.0E_12500-12750 HV__2023-04-14_18-45-13.png
    tbs6903x_66.0E_12500-12750 HV__2023-04-14_18-45-13.png
    117.5 KB · Views: 18
  • tbs6903x_66.0E_1095-11700 HV_2023-04-14_17-22-38.png
    tbs6903x_66.0E_1095-11700 HV_2023-04-14_17-22-38.png
    159 KB · Views: 16
  • tbs6903x_66.0E_Services_2023-04-14_19-55.png
    608.5 KB · Views: 13
  • tbs6903x_66.0E_Services_2023-04-14_19-54.png
    112.3 KB · Views: 18
  • tbs6903x_Muxes found_2023-04-14_19-53.png
    tbs6903x_Muxes found_2023-04-14_19-53.png
    268 KB · Views: 18
  • tbs6903x_66.0E_12500-12750 HV_2023-04-14_19-52.png
    tbs6903x_66.0E_12500-12750 HV_2023-04-14_19-52.png
    113.9 KB · Views: 13
  • tbs6903x_66.0E_10945-11700 V_2023-04-14_19-45.png
    tbs6903x_66.0E_10945-11700 V_2023-04-14_19-45.png
    163.7 KB · Views: 10
  • tbs6903x_66.0E_10945-11700 H_2023-04-14_19-26.png
    tbs6903x_66.0E_10945-11700 H_2023-04-14_19-26.png
    127.3 KB · Views: 6

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Intelsat 20 @ 68.5° E

Intelsat 20 reception with 6903x card and neumoDVB and Crazyscan apps, 10950-11700 HV and 12500-12750 HV.


Attachments

  • tbs6903x_68.5E-10945-11700 H_2023-04-15_10-57.png
    tbs6903x_68.5E-10945-11700 H_2023-04-15_10-57.png
    137.2 KB · Views: 4
  • tbs6903x_68.5E_10945-11700 V_2023-04-15_11-20.png
    tbs6903x_68.5E_10945-11700 V_2023-04-15_11-20.png
    166.3 KB · Views: 3
  • tbs6903x_68.5E_10950-11700 H_2023-04-16_11-27-13.png
    tbs6903x_68.5E_10950-11700 H_2023-04-16_11-27-13.png
    97.4 KB · Views: 3
  • tbs6903x_68.5E_10950-11700 V_2023-04-16_10-22-43.png
    tbs6903x_68.5E_10950-11700 V_2023-04-16_10-22-43.png
    104.2 KB · Views: 5
  • tbs6903x_68.5E_12500-12750 H_2023-04-15_12-52.png
    tbs6903x_68.5E_12500-12750 H_2023-04-15_12-52.png
    85.6 KB · Views: 5
  • 68.5E_12500-12750 V_.png
    68.5E_12500-12750 V_.png
    96.9 KB · Views: 5
  • tbs6903x_68.5E_12500-12750 H_2023-04-16_11-45-28.png
    tbs6903x_68.5E_12500-12750 H_2023-04-16_11-45-28.png
    90.2 KB · Views: 3
  • tbs6903x_65.5E_12500-1750 V_2023-04-16_11-53-50.png
    tbs6903x_65.5E_12500-1750 V_2023-04-16_11-53-50.png
    95.5 KB · Views: 1
  • 68.5E_Muxes found_2023-04-15_12-55.png
    68.5E_Muxes found_2023-04-15_12-55.png
    268.3 KB · Views: 1
  • 68.5E_Muxes 2_2023-04-15_12-57.png
    68.5E_Muxes 2_2023-04-15_12-57.png
    168.7 KB · Views: 5

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Continued at 68.5E with neumoDVB and Crazyscan, using the tbs6903x card.


Attachments

  • 68.5e_10989 H,68500,23,16apsk-data_2023-04-15_10-58.png
    68.5e_10989 H,68500,23,16apsk-data_2023-04-15_10-58.png
    87.7 KB · Views: 8
  • 10988 H,68500,--nolock_2023-04-16_11-02-06.png
    10988 H,68500,--nolock_2023-04-16_11-02-06.png
    99.7 KB · Views: 7
  • 11069 H.58000,25.36,psk8,s2x_2023-04-15_11-06.png
    11069 H.58000,25.36,psk8,s2x_2023-04-15_11-06.png
    87.1 KB · Views: 8
  • 11069 H,58000,25.36,s2x,8psk-2023-04-16_10-41-32.png
    11069 H,58000,25.36,s2x,8psk-2023-04-16_10-41-32.png
    126.8 KB · Views: 11
Last edited:

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Eutelsat 70B @ 70.5° E

Test with neumoDVB at 70.5E, in which I notice on the spectrum that 11215 V/11230 V,51421, and 11277 V/11292 V,45000 appear on other muxes but are correctly listed on the Muxes. They are indeed displayed with the correct parameters after manual scanning.
I should also add that the auto scan with 6903x is faster with neumoDVB than Crazyscan, as is natural and has happened on every satellite I have scanned so far.


Attachments

  • 70.5E_12523 V-Service_2023-04-17_18-06.png
    70.5E_12523 V-Service_2023-04-17_18-06.png
    775.4 KB · Views: 8
  • 70.5E-Services_2023-04-17_18-03.png
    101.5 KB · Views: 6
  • 70.5E_Muxes found_2023-04-17_18-02.png
    70.5E_Muxes found_2023-04-17_18-02.png
    341.4 KB · Views: 6
  • tbs6903x_70.5E_12500-12750 HV_2023-04-17_17-10-23.png
    tbs6903x_70.5E_12500-12750 HV_2023-04-17_17-10-23.png
    175.7 KB · Views: 6
  • tbs6903x_70.5E_12500-12750 V_2023-04-17_17-58.png
    tbs6903x_70.5E_12500-12750 V_2023-04-17_17-58.png
    96.8 KB · Views: 5
  • tbs6903x_70.5E_12500-12750 H_2023-04-17_17-52.png
    tbs6903x_70.5E_12500-12750 H_2023-04-17_17-52.png
    89.9 KB · Views: 4
  • tbs6903x_70.5E_10950-11700 HV_2023-04-17_13-40-23.png
    tbs6903x_70.5E_10950-11700 HV_2023-04-17_13-40-23.png
    132.8 KB · Views: 4
  • 11292 V(11277)_wrong mux_2023-04-17_17-43.png
    11292 V(11277)_wrong mux_2023-04-17_17-43.png
    181.7 KB · Views: 4
  • tbs6903x_70.5E_10950-11700 V_2023-04-17_17-47.png
    tbs6903x_70.5E_10950-11700 V_2023-04-17_17-47.png
    132.4 KB · Views: 5

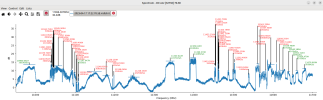

  • tbs6903x_70.5E_10950-11700 H_2023-04-17_17-32.png
    tbs6903x_70.5E_10950-11700 H_2023-04-17_17-32.png
    154.5 KB · Views: 5
Last edited:

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
continued from 70.5E

Another advantage that neumoDVB has when using the 6903X card is that it discovers or locks muxes that cannot be found with Crazyscan, such as 11107 H,416,2/3,8PSK. I had to use the 6983 cards to lock this mux with Crazyscan, not the 6903x.

-I would ask too much of the moderators to post more pictures than 10. Thanks.


Attachments

  • 70.5E_11104 H_2023-04-17_17-25.png
    70.5E_11104 H_2023-04-17_17-25.png
    87.2 KB · Views: 7
  • 70.5E_11104 H_2023-04-17_17-25.png
    70.5E_11104 H_2023-04-17_17-25.png
    87.2 KB · Views: 6
  • 11107 H,416,23,8psk-gs_2023-04-17_15-48-32.png
    11107 H,416,23,8psk-gs_2023-04-17_15-48-32.png
    131.5 KB · Views: 7
Last edited:

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
745
Reaction score
460
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
continued from 70.5E

Another advantage that neumoDVB has when using the 6903X card is that it discovers or locks muxes that cannot be found with Crazyscan, such as 11107 H,416,2/3,8PSK. I had to use the 6983 cards to lock this mux with Crazyscan, not the 6903x.

-I would ask too much of the moderators to post more pictures than 10. Thanks.
As always: there are pros and cons. crazyscan uses a different peak finding algorithm. Sometimes one is better than the other. You need some luck.

The peaks in the spectrum (frequency and bandwith) are used as an initial guess. The guess 11277H is clearly incorrect, which is due tothe non-flat spectrum which seems to happen with advanced high symbol rate modulation schemes.


CrazyCat

Regular Member
Joined
Oct 18, 2012
Messages
139
Reaction score
213
Points
43
Website
crazycat69.narod.ru
My Satellite Setup
13E 4.8E 4W: Dish Variant CA-902 0.95m + 3xLNB Ku-Universal DreamSat DS8 + DiseqC 1.0
30W-95E: Dish Strong 0.95m + LNB Ku-Universal ALPS BSTE8-751B + Motor PowerTech DG240
OpenBox X-800
TT S-1401 PCI
Omicom S2 PCI
TBS 5980 USB2.0
My Location
Ukraine, Kharkov
BLscan2() not implemented for STiD135, used only step-by-step BLScan() without peak detection.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Intelsat 22 @ 72.1° E

Testes with neumoDVB and Crazyscan on 72.1E with 1.50 ant, IBU lnb: 11400-11700 HV and 12500-12750 HV.
Between 11400-11700 HV, at 72.1E, neumoDVB and Crazyscan applications find no active mux. In my area, in this part of the band, I have a lot of interference in the Ku band because the useful signal is often attenuated or even disappears. And yet, I would say that what the neumoDVB spectrum shows, compared to Crazyscan, also indicates how the neumoDVB driver has been designed. It displays any signal/noise as an information carrier. When you see so many muxes on the spectrum, you would think one could be an active mux out of many signals. But it isn't; ultimately, both utilities achieve the same result.


Attachments

  • tbs6903x_72.1E_11400-11700 HV_2023-04-18_11-16.png
    tbs6903x_72.1E_11400-11700 HV_2023-04-18_11-16.png
    108 KB · Views: 5
  • tbs6903x_70.1E_11400-11700 HV_2023-04-18_12-19-20.png
    tbs6903x_70.1E_11400-11700 HV_2023-04-18_12-19-20.png
    127.1 KB · Views: 5
  • tbs6903x_72.1E_12500-12750 HV_2023-04-18_11-11.png
    tbs6903x_72.1E_12500-12750 HV_2023-04-18_11-11.png
    147.9 KB · Views: 4
  • tbs6903x_72.1E_12500-12750 HV_2023-04-17_21-15-34.png
    tbs6903x_72.1E_12500-12750 HV_2023-04-17_21-15-34.png
    125.9 KB · Views: 4
  • tbs6903x_72.1E_Muxes_2023-04-18_11-35.png
    91.5 KB · Views: 7

deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
745
Reaction score
460
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Intelsat 22 @ 72.1° E
also indicates how the neumoDVB driver has been designed. It displays any signal/noise as an information carrier. When you see so many muxes on the spectrum, you would think one could be an active mux out of many signals. But it isn't; ultimately, both utilities achieve the same result.
Well, it doesn't. It is a candidate peak to scan. Not a mux.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
ABS-2 / ABS-2A @ 74.9° E

6903x card with neumoDVB and Crazyscan on 74.9E: 10950-11700 HV and 11700-12750 HV.


Attachments

  • 75.0E_MIR + 2_2023-04-19_11-24.png
    75.0E_MIR + 2_2023-04-19_11-24.png
    609.1 KB · Views: 10
  • tbs6903x_Muxes found_2023-04-19_11-18.png
    tbs6903x_Muxes found_2023-04-19_11-18.png
    272.1 KB · Views: 7
  • tbs6903x_75.0E_11700-12750 HV_2023-04-19_12-29-17.png
    tbs6903x_75.0E_11700-12750 HV_2023-04-19_12-29-17.png
    121.9 KB · Views: 5
  • tbs6903x_75.0E_11700-12750 V_2023-04-19_11-16.png
    tbs6903x_75.0E_11700-12750 V_2023-04-19_11-16.png
    122.1 KB · Views: 6

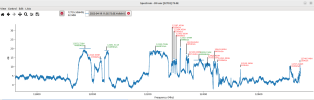

  • tbs6903x_75.0E_11700-12750 H_2023-04-19_11-06.png
    tbs6903x_75.0E_11700-12750 H_2023-04-19_11-06.png
    108 KB · Views: 7
  • tbs6903x_75.0E_10950-11700 HV_2023-04-19_12-56-22.png
    tbs6903x_75.0E_10950-11700 HV_2023-04-19_12-56-22.png
    129.1 KB · Views: 7
  • tbs6903x_75.0E_10950-11700 V_2023-04-19_11-01.png
    tbs6903x_75.0E_10950-11700 V_2023-04-19_11-01.png
    110.2 KB · Views: 6
  • tbs6903x_75.0E_10950-11700 H_2023-04-19_10-56.png
    tbs6903x_75.0E_10950-11700 H_2023-04-19_10-56.png
    145.4 KB · Views: 6

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Apstar-7 @ 76.5° E

6903x card with neumoDVB and Crazyscan on 76.5E: 11450-11700 HV and 11700-12750 HV:


Attachments

  • tbs6902se_76.5E_Muxes found_2023-04-20_19-26.png
    tbs6902se_76.5E_Muxes found_2023-04-20_19-26.png
    97.6 KB · Views: 5
  • tbs6903x_76.5E_12500-12750 HV__2023-04-20_16-38-06.png
    tbs6903x_76.5E_12500-12750 HV__2023-04-20_16-38-06.png
    106 KB · Views: 3
  • tbs6903x_76.5E_12500-12750 HV_2023-04-20_19-04.png
    tbs6903x_76.5E_12500-12750 HV_2023-04-20_19-04.png
    106.8 KB · Views: 3
  • tbs6903x_76.5E_11400-11700 HV_2023-04-20_14-51-39.png
    tbs6903x_76.5E_11400-11700 HV_2023-04-20_14-51-39.png
    123.2 KB · Views: 3
  • tbs6903x_76.5E_11400-11700 HV_2023-04-20_19-01.png
    tbs6903x_76.5E_11400-11700 HV_2023-04-20_19-01.png
    131.5 KB · Views: 8

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Express-80 @ 80° E

tbs6903x card with neumoDVB and Crazyscan on 80.0E: 10950-11700 H/V:
I thought the Muxes problem was solved with generic multi-streaming(?) that generates dozens or hundreds of streams appearing on the Muxes list that currently has no practical or other value. We have such a mux at 10974 H, which, as you can see on the list, fills the list without any purpose for us, simple users. It would be a different story if we had such an app for such (multi) streams.
On Windows, with Crazscan, this mux is single and encapsulated.
It looks like neumoDVB; such a stream is not encapsulated(?), so it populates the list with everything it finds on this stream. But whatever the nature of this stream, it would be more useful if such muxes were not repeated tens or hundreds of times.


Attachments

  • 10975 H,13189,23,s2-no multi__2023-04-21_09-51-30.png
    10975 H,13189,23,s2-no multi__2023-04-21_09-51-30.png
    122.6 KB · Views: 9
  • tbs6903x_80.0E_Services_2023-04-20_21-50.png
    650.3 KB · Views: 15
  • tbs6903x_Muxes found_10974 H_2023-04-20_21-46.png
    tbs6903x_Muxes found_10974 H_2023-04-20_21-46.png
    322 KB · Views: 11
  • tbs6903x_10974 H,-n muxes_2023-04-20_21-43.png
    tbs6903x_10974 H,-n muxes_2023-04-20_21-43.png
    354.3 KB · Views: 12
  • tbs6903x_80.0E_10950-11700 V_2023-04-20_18-03-13.png
    tbs6903x_80.0E_10950-11700 V_2023-04-20_18-03-13.png
    85 KB · Views: 9
  • tbs6903x_80.0E_10950-11700 V_2023-04-20_21-36.png
    tbs6903x_80.0E_10950-11700 V_2023-04-20_21-36.png
    104.1 KB · Views: 8
  • tbs6903x_80.0E_10950-11700 H_2023-04-20_17-15-42.png
    tbs6903x_80.0E_10950-11700 H_2023-04-20_17-15-42.png
    80.5 KB · Views: 8
  • tbs6903x_80,0E_10950-11700 H_2023-04-20_21-28.png
    tbs6903x_80,0E_10950-11700 H_2023-04-20_21-28.png
    115.6 KB · Views: 9

Llew

cerca trova...
Staff member
Joined
Jan 1, 2000
Messages
16,246
Reaction score
4,217
Points
113
Age
82
My Satellite Setup
Triple Dragon, Dreambox 8000, Echostar AD3000ip, TBS6522,6925,6983 PCie cards.
Gibertini 1.25m motorised dish driven by the AD3000, with either Inverto BU Quad or Norsat / XMW Ka LNBs . SMW 1.05m + 3 other dishes. Speccy: Promax HD Ranger+
My Location
The Flatlands of East Anglia
Express-80 @ 80° E

tbs6903x card with neumoDVB and Crazyscan on 80.0E: 10950-11700 H/V:
I thought the Muxes problem was solved with generic multi-streaming(?) that generates dozens or hundreds of streams appearing on the Muxes list that currently has no practical or other value. We have such a mux at 10974 H, which, as you can see on the list, fills the list without any purpose for us, simple users. It would be a different story if we had such an app for such (multi) streams.
On Windows, with Crazscan, this mux is single and encapsulated.
It looks like neumoDVB; such a stream is not encapsulated(?), so it populates the list with everything it finds on this stream. But whatever the nature of this stream, it would be more useful if such muxes were not repeated tens or hundreds of times.
Very interesting satesco, so many streams with no obvious way of parsing them with our programs and cards (unless somebody knows otherwise).

Unfortunately none of the satellites east of 58E are visible to me, so I can't check myself. Maybe similar streams are able to be seen within my arc reach, I'll check when I have time.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
I have also raised this issue on 53.0E/52.0E, with multistream (#411) on 11244 H,2000,2/3,8PSK, which neumoDVB found on a mux that repeats over and over again. If then, the Crazyscan window showed me these multiple streams; this time, on 10974 H, the same app shows me that the mux has only a single stream.
The same problem manifests itself, for example, on 30.0W, 11676,1766,5/6,8PSK, which has 250 streams(see picture). I have exemplified this only with Crazyscan. At least on the Windows app, they are not displayed, being considered (maybe) useless as long as we don't have an app to show the content.
The annoying thing is not that these streams are unnecessarily listed, but when you have to search for a specific mux, you must search a lot to find it. It's a matter of time.
I must point out one thing, the observations I make above, or elsewhere, are those of a simple user and not of a specialist. Any clarification in this regard is welcome.


Attachments

  • 30.0W_11676 V,1766,56,8psk,Multi 1-256_gs_2023-04-21_14-13-35.png
    30.0W_11676 V,1766,56,8psk,Multi 1-256_gs_2023-04-21_14-13-35.png
    73 KB · Views: 6

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
G-Sat 30 @ 83° E

Here is a satellite, G-Sat 30, at 83.0E, which has no useful signal in the Ku band with my antenna. Because of this, the 6903x card does not see any signal with Crazyscan. Instead,neumoDVB manages to identify signals and parameters, the same as the 6983 cards. That's why I'm posting its spectrum.
This is also a test that the 6903x card with neumoDVB might be at the same level as the 6983/6903.5927 cards when identifying a position on the arc.


Attachments

  • tbs6903x_83.0E_11509 V,32720,34,8psk_2023-04-21_18-43.png
    tbs6903x_83.0E_11509 V,32720,34,8psk_2023-04-21_18-43.png
    86 KB · Views: 7
  • tbs6903x_83.0E_Muxes found_2023-04-21_18-57.png
    tbs6903x_83.0E_Muxes found_2023-04-21_18-57.png
    53.6 KB · Views: 4
  • tbs6983_83.0E_10950-11700 V__2023-04-21_18-00-05.png
    tbs6983_83.0E_10950-11700 V__2023-04-21_18-00-05.png
    78.2 KB · Views: 2
  • tbs6903x_83.0E_10950-11700 V_2023-04-21_18-23-21.png
    tbs6903x_83.0E_10950-11700 V_2023-04-21_18-23-21.png
    64.7 KB · Views: 3
  • tbs6903x__83.0E_10950-11700 V_2023-04-21_18-38.png
    tbs6903x__83.0E_10950-11700 V_2023-04-21_18-38.png
    106 KB · Views: 4
  • tbs6903x_83.0E_11468 V,32720,34,8psk-_2023-04-21_18-37.png
    tbs6903x_83.0E_11468 V,32720,34,8psk-_2023-04-21_18-37.png
    85.9 KB · Views: 9

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
797
Reaction score
747
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant , Octagon
My Location
Slovakia
The same problem manifests itself, for example, on 30.0W, 11676,1766,5/6,8PSK, which has 250 streams(see picture). I have exemplified this only with Crazyscan. At least on the Windows app, they are not displayed, being considered (maybe) useless as long as we don't have an app to show the content.
And you can see that the diagram is QPSK, so the whole detection is bad


deeptho

Specialist Contributor
Joined
Apr 7, 2006
Messages
745
Reaction score
460
Points
63
Age
57
My Satellite Setup
Wavefrontier T90, Laminas 120cm, 2 other dishes; tbs 5927, tbs6904, tbs6909x, tbs6903x, tbs5990, tbs6981,tbs5927
My Location
Europe
Express-80 @ 80° E

tbs6903x card with neumoDVB and Crazyscan on 80.0E: 10950-11700 H/V:
I thought the Muxes problem was solved with generic multi-streaming(?) that generates dozens or hundreds of streams appearing on the Muxes list that currently has no practical or other value. We have such a mux at 10974 H, which, as you can see on the list, fills the list without any purpose for us, simple users. It would be a different story if we had such an app for such (multi) streams.
On Windows, with Crazscan, this mux is single and encapsulated.
It looks like neumoDVB; such a stream is not encapsulated(?), so it populates the list with everything it finds on this stream. But whatever the nature of this stream, it would be more useful if such muxes were not repeated tens or hundreds of times.
That is just the way it is designed, not only for simple users... And these streams are not useless. Some of them contain interesting data. I found the operating system for an in flight entertainmens system once.

So it is NOT a problem. The only thing that changed is that scanning such muxes is now much faster,


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,127
Reaction score
3,023
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
That is just the way it is designed, not only for simple users... And these streams are not useless. Some of them contain interesting data. I found the operating system for an in flight entertainmens system once.

So it is NOT a problem. The only thing that changed is that scanning such muxes is now much faster,
Thanks for the info, but until we can access such a stream (it will be a long time), it would be good if you could find a solution that does not generate so many muxes.
Such streams are intended for professionals with dedicated devices/software. I don't see how we (yes, simple users) can see this content. I'm skeptical about this in the short term in this regard, but that doesn't mean that we/I won't look for muxes that offer us a chance to see what is...forbidden if we find such muxes among the first ones :)

Top
