Astra 2E: Iberia & Balearics Reports

Status
Not open for further replies.
A

altman

Regular Member
Joined
Mar 5, 2014
Messages
39
Reaction score
9
Points
8
Age
45
My Satellite Setup
1.8m PF 28.2E, 61cm 19.2E+13E, 34cm 5W, 1.25m PF motorized
mirage 1704HD, DM500S, skystar USB, Sathunter sh200
My Location
Portalegre, Portugal
I am probably lucky and the sharp null wall is a few km more to the west.
I'm still getting the "Madrid secondary lobe"
Kota isn't the only one trying, there are at least two reports of 3m dishes on the Lisbon area that get nothing
If I had the time (and money) I could get a van for measuring where it starts to really fade away like another member here did in Spain

BTW, I went to try and use a big old dish my friend has, but it was unusable, I'll have to fix it first
I've never seen a dish that deep , where can I post a new thread so you guys can help me identify the manufacturer?

kota

kota

Member
Joined
May 1, 2007
Messages
123
Reaction score
40
Points
28
Age
69
My Satellite Setup
VU+ Solo2,Humax HDCI2000,Astra2 1.80m Famaval dish/Inverto Black Pro,Astra1&Hotbird 90cm dual lnb dish,Astra3 1.20m dish,Intelsat 907 80cm dish, Hispasat 60cm dish.
My Location
Sintra - Portugal
Huevos said:
Kota, what dish size are you using? TBH, I don't believe the stories down there of 4 metre dishes not working. And if Altman has already locked one transponder with what he's using I'm sure stepping up to a 1.5m would get him the rest.
Click to expand...

As per signature. Wish you were right but I gave up the 2F-2E issue altogether. In my location it's simply not possible to receive the UK beams with any domestically acceptable sized dish AFAIK.

kota

kota

Member
Joined
May 1, 2007
Messages
123
Reaction score
40
Points
28
Age
69
My Satellite Setup
VU+ Solo2,Humax HDCI2000,Astra2 1.80m Famaval dish/Inverto Black Pro,Astra1&Hotbird 90cm dual lnb dish,Astra3 1.20m dish,Intelsat 907 80cm dish, Hispasat 60cm dish.
My Location
Sintra - Portugal
altman said:
BTW, I went to try and use a big old dish my friend has, but it was unusable, I'll have to fix it first
I've never seen a dish that deep , where can I post a new thread so you guys can help me identify the manufacturer?
Click to expand...

Post it here. Definitely on topic ....

A

altman

Regular Member
Joined
Mar 5, 2014
Messages
39
Reaction score
9
Points
8
Age
45
My Satellite Setup
1.8m PF 28.2E, 61cm 19.2E+13E, 34cm 5W, 1.25m PF motorized
mirage 1704HD, DM500S, skystar USB, Sathunter sh200
My Location
Portalegre, Portugal
here it is:
sorry for the bad quality pics, these were taken with a mobile phone, with low light
I didn't remember to measure it, but its at least 1.8m, installed about 20 years ago
construction wise I think its rolled steel, as it has the central hole and the edge is rolled backwards, its smooth, not an edge at all
the polar mount is extremely thick galvanized steel, bolt sizes go from huge to ridiculous ;)







kota

kota

Member
Joined
May 1, 2007
Messages
123
Reaction score
40
Points
28
Age
69
My Satellite Setup
VU+ Solo2,Humax HDCI2000,Astra2 1.80m Famaval dish/Inverto Black Pro,Astra1&Hotbird 90cm dual lnb dish,Astra3 1.20m dish,Intelsat 907 80cm dish, Hispasat 60cm dish.
My Location
Sintra - Portugal
It looks like a 1.8m Marrafa-Antel very early sample. I'm afraid those weren't very good and the famaval's which followed were much better. Tried both types myself and can vouch for the latter.

A

altman

Regular Member
Joined
Mar 5, 2014
Messages
39
Reaction score
9
Points
8
Age
45
My Satellite Setup
1.8m PF 28.2E, 61cm 19.2E+13E, 34cm 5W, 1.25m PF motorized
mirage 1704HD, DM500S, skystar USB, Sathunter sh200
My Location
Portalegre, Portugal
yes, really low efficiency due to low F/D but in the other hand that should give high selectivity in cases where there are two strong sources in the same frequency very close
I was betting on a Kreiselmeyer due to the whole system being imported from Germany

example of a 1.4m found on the web:

source: http://www.boehmel.de/tf3000e.htm

couldn't found pictures from Marrafa/antel examples online
BTW Marrafa is still in business: http://www.antebolicas.com/

P

Pedro0102

Member
Joined
Oct 30, 2009
Messages
83
Reaction score
30
Points
18
My Satellite Setup
Motorized system mainly aiming @ 28.2/28.5E
Famaval 3.1m
Invacom quad
My Location
Lisbon, Portugal
Huevos said:
Kota, what dish size are you using? TBH, I don't believe the stories down there of 4 metre dishes not working. And if Altman has already locked one transponder with what he's using I'm sure stepping up to a 1.5m would get him the rest.
Click to expand...

3.1m in Lisbon and nothing on the 2f and 2e spot beams.
The signal is flat on a spectrum analyzer with absolutely no evidence that there are live transponders on those frequencies.
This is really a deep null area...

A

Archive4

Guest

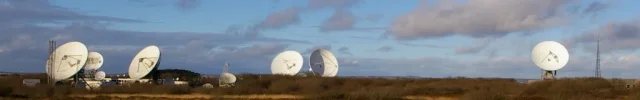

Pehaps this is what you need, Goonhilly 6, 32m ku and c band, now I believe has been upgraded to include X and Ka band, should be ok for community installation! ( I worked there for a while, a few years ago)

A

Archive4

Guest
Kota, I figure the local birds didn´t rate that make of dish either!

Captain Jack

Captain Jack

Retired human
Joined
Oct 21, 2006
Messages
11,897
Reaction score
8,078
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Brian Philpotts said:
Pehaps this is what you need, Goonhilly 6, 32m ku and c band, now I believe has been upgraded to include X and Ka band, should be ok for community installation! ( I worked there for a while, a few years ago)
Click to expand...

Uhm - that's a nice dish. I bet it gets EVERY satellite visible in the UK.... Can I have one in my back yard?

A

Archive4

Guest
Captain Jack said:
Uhm - that's a nice dish. I bet it gets EVERY satellite visible in the UK.... Can I have one in my back yard?
Click to expand...

Depends on your bank balance!

And according to Huevos, local planning rules!

Last edited by a moderator:
Captain Jack

Captain Jack

Retired human
Joined
Oct 21, 2006
Messages
11,897
Reaction score
8,078
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Planning rules? What's that then?

A

Archive4

Guest
In UK only?, see mid page 20 on this thread, but of course you already knew that

Nagusia

Nagusia

Regular Member
Joined
Dec 13, 2012
Messages
79
Reaction score
44
Points
18
My Satellite Setup
Gibertini 0p150 with single Inverto Black Ultra plugged into Humax FOXSAT HDR | Portable 80 cm dish with IBU plugged into TechniSat SkyStar USB HD DVB-S2 receiver/W7 64 Media Center / ProgDVB setup.
My Location
20 km south of San Sebastian N Spain
Has anyone else noticed a significant drop in signal strenghth today - both 2E and s2F beams? Atmospheric conditions I guess but the weather hasn't changed much over the past few days.

Captain Jack

Captain Jack

Retired human
Joined
Oct 21, 2006
Messages
11,897
Reaction score
8,078
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Brian Philpotts said:
In UK only?, see mid page 20 on this thread, but of course you already knew that
Click to expand...
Yes...just no-one seems to take notice of them. I dont know anyone who has planning permission for their dishes....

Huevos

Huevos

Satellite Freak
Joined
Sep 11, 2008
Messages
6,038
Reaction score
1,277
Points
113
My Satellite Setup
57E to 58W, C-band and Ku, DVB-S2, 4:2:2 and blindscan.
My Location
38.5ºN, 0.5ºW
Nagusia said:
Has anyone else noticed a significant drop in signal strenghth today - both 2E and s2F beams? Atmospheric conditions I guess but the weather hasn't changed much over the past few days.
Click to expand...
Yes. It's down about 0.5dB compared to normal. But there has been heavy cloud and some rain today.


A

Archive4

Guest

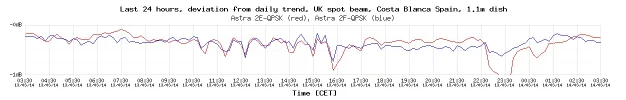

Huevos, have you formulated any theory as to why 2e drops much more than 2f between 22:30 and 23:30, when on batteries? Is it possible they have a different battery type, not able to sustain the same power output, or is it anything to do with altitude, or exact geo location?

Huevos

Huevos

Satellite Freak
Joined
Sep 11, 2008
Messages
6,038
Reaction score
1,277
Points
113
My Satellite Setup
57E to 58W, C-band and Ku, DVB-S2, 4:2:2 and blindscan.
My Location
38.5ºN, 0.5ºW
No idea! Has 2E got more active transponders?

A

Archive4

Guest
Huevos said:
No idea! Has 2E got more active transponders?
Click to expand...

At a quick count, according to flysat, only four or five more, can it make that much difference?

Ok before you reply , roughly 20% more power required, but don´they build that into the equation before they put the bird up there?

Last edited by a moderator:
