Astra 2G: Iberia & Balearics Reports

[lovelyperson]

....... armed with the Emitor, using constellation mode .......... Did notice I could improve 11023 H with focal adjustment but had detrimental effect on 2E.

Morning Brian..........overall are you pleased with the Emitor.......¿any negatives with it for yourself?

Assume the 'Signals are lower this morning' are readings with the 1.4m.

Will see a friend later with a 1.4m on Urb. Da Vinci (behind Mercadona)...will be interesting.

Be safe.

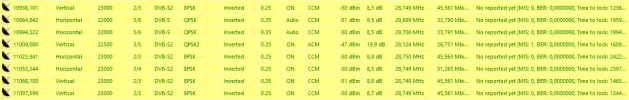

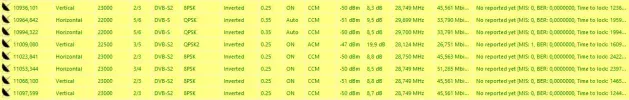

This morning 08.15hrs:-



[Archive4]

Yes, signals down today. BBC NewsHD never happy this morning, keeps pixelating.

Quite happy with the Emitor, down side is screen is very difficult to read in bright sunlight and we have a lot of it here!



[Tururu]

Signals are lower this morning, BBC News HD only 7.8dB with pixels

Similar values.
---------------
Valores similares.

BBC One HD 9.00dB
ITV HD 9.50dB
CH5 9.00dB

PS:.Besides not see "anything" with the Sun, the meters are often more "deaf" to the tuners normally.
PD:Aparte de no ver "nada" con el Sol, los medidores suelen ser mas "sordos" que los sintonizadores normalmente.



[Archive4]

BBC News HD 8.2dB at 0700 this morning, about 0.4 higher than same time yesterday



[mickwig]

According to n2yo 2G is at 28.15 this morning



[Archive4]

According to n2yo 2G is at 28.15 this morning

That backs up the " bump " West theory and means if 2E is at 28.35 they are 0.5 further apart than 2F was. Must be the difference.

BBC News HD now 8.4dB here, highest I´ve seen it so far, must have had some local atmospheric problem yesterday.



[Archive4]

Using Huevos´s graph as my bible have just recorded todays peak at 8.6db. Extrapolating this, should keep BBC News HD until about 16:30



[Archive4]

have lost bbc news hd now, but all others ok. itv hd is close to fail though



[woborny]

BBC News HD 8.2dB at 0700 this morning, about 0.4 higher than same time yesterday

Got 11023H23000 at about 1300 at 9.2db.... on a 100x110cm dish nr Gandia.

My 80x85cm dish this morning was almost liking 11023H23000 - almost coming thru (heavy pixilation)

Tricky to do any good measuring at the moment, as we have a small storm here.

But also tried a GI 125x135 the other day - as someone had it and was having problems getting most 2efg spots on it....
Same design as the Tecatel 125x135, but using lightweight metal...and a 60mm support, rather than the tecatels 70mm support.
Came third in my tests behind the Tecatel, and then the Fam "1.4" dish...but UK spots were available, but just not as good as the proper tecatel 125x135 dish. Am hoping to get another one sometime to do a full comparison, but not holding much hope (like their famaval "clone" they also do!)



[RichardinSpain]

Hi all
Been monitoring 2g for a week now, Was dissapointed at first as a lot of people were saying that 2G was the same reception as 2F..For me it was evident that it wasn't, in fact 2E was stronger than 2G. This morning has been the highest so far. Can move dish a nudge to gain on 2G or 2E, here are my figures on a FTE 1.5 in Totana Murcia (near Lorca) at 11.10am
Receiver starts to break up at 6.2db...Using a cheapo lnb from pc componentss, have also checked with black ultra which i can gain on some transponders but lose on others..Stronger in the mornings and late evening after 10/11pm
The only transponder i haven't seen much of is 11053 but today is quite strong today..Have had No break up in the last week on 2G with the exception of 11023 which pixelated a bit on a couple of afternoons..

10964 8.5db
10994 7.9db
11023 8.2db
11053 8.0db
11097 8.5db
11068 8.7db
11126 8.2db

In comparison some reading form 2E
10714 8db
10729 8.2db
10818 8db
10906 8.7db
10758 8.8db
10891 8.4db



[RichardinSpain]

Figures 24/06 15.15pm

10964 8.2db -0.3
10994 7.4db -0.5
11023 7.9db -.03
11053 8.db (flicking between 0db and 8db)
11068 8.4db -.03
11126 8db -.02

10714 7.9db -.01
10729 8.2db same
10818 7.9db -.01
10906 8.7db same
10758 8.8db same
10891 8.4db same



[RichardinSpain]

Figures 24/06 18.30 and difference in db from 11.10am

10964 7.7db -0.8db
10994 7.2db -0.7db
11023 7.3db -0.9db
11053 0.0db
11097 7.7db -0.8db
11068 7.7db -1.0db
11126 7.6db -0.6db

In comparison some reading from 2E
10714 7.6db -0.4db
10729 7.7db -0.5db
10818 7.6db -0.4db
10906 8.4db -0.3db
10758 8.5db -0.3db
10891 8.0db -0.4db

Forgot to mention, threshold hold of receiver (pixelates) at 6.8db for HD and 6.1 for SD



[Archive4]

Figures 24/06 18.30 and difference in db from 11.10am

10964 7.7db -0.8db
10994 7.2db -0.7db
11023 7.3db -0.9db
11053 0.0db
11097 7.7db -0.8db
11068 7.7db -1.0db
11126 7.6db -0.6db

In comparison some reading form 2E
10714 7.6db -0.4db
10729 7.7db -0.5db
10818 7.6db -0.4db
10906 8.4db -0.3db
10758 8.5db -0.3db
10891 8.0db -0.4db

Forgot to mention, threshold hold of receiver (pixelates) at 6.8db for HD and 6.1 for SD

Hi Richard, have you adjusted your focus, have noticed on my smaller dishes sliding the LNB closer to the dish face has had a significant improvement to the SNR?



[RichardinSpain]

Hi Richard, have you adjusted your focus, have noticed on my smaller dishes sliding the LNB closer to the dish face has had a significant improvement to the SNR?

Hi Brian, yes adjusted the focus but not for a few days, will have another try soon now that 2G seems to have settled a bit



[Archive4]

Held BBC News HD at 8.7dB for quite a while this morning, looks slightly up



[RichardinSpain]

Here in Totana at 10am BBC News HD 11023 is 8.4db which will gradually decline through the day, normally goes down to 7.2/7.3db at it's lowest but still receivable...For me 2F used to be higher in the morning, lower in the afternoon and early evening and peaking at it's highest late evening at around 10-12pm...2G seems to be at its highest in the morning and declining in the afternoon and picking up slightly in the evening..At it's peak i was getting a healthy 10db on 11023 and 11097 in the evening for a couple of hours when they were on 2F but now don't get anywhere near that at the moment..Maybe down to seasonal changes..Going to have a fiddle at the weekend
Brian, it seems your receiver has a different threshold than mine,mine starts to break up at 6.8db for HD and 6.1/6.2db for SD where i think i read in 1 of your posts that yours breakups at a higher db



[Tururu]

These are the levels of this morning.
I will try to see the levels at about 18:00 local time, to compare whether the best or the worst time of day, including travel storms and could not see the levels these days.
------------
Estos son los niveles de esta mañana.
Intentare ver los niveles sobre las 18:00 hora local, para comparar si es la mejor o la peor hora del dia, entre tormentas y viajes no pude ver los niveles estos dias.

10964 9.0dB
10994 7.50dB
11023 7.50dB
11053 0.0dB
11097 9.50dB
11068 10.0dB
11126 9.50dB

10714 8.0dB
10729 8.5dB
10818 9.0dB
10906 10.dB
10758 9.5dB
10891 8.5dB

PD:Buena pesca/Good fishing.



[Archive4]

Brian, it seems your receiver has a different threshold than mine,mine starts to break up at 6.8db for HD and 6.1/6.2db for SD where i think i read in 1 of your posts that yours breakups at a higher db

Hi Richard, most boxes, I believe, start to break up at about 7.5dB for SD FEC2/3, A little higher for HD. As FEC goes up, ie. 5/6 you need more SNR. If your box works as low as 6.1dB, cherish it and buy another if you get the chance!



[Tururu]

Madrid 18:00 local time, for now is the worst time, the signal is the lowest.
These are the levels....25-6-2015 18:00-18:30
---------------------
18:00 hora local Madrid, de momento es la peor hora, la señal es la mas baja.
Estos son los niveles....25-6-2015 18:00-18:30

10714  =  7.00dB Señal/SNR40% AGC99% BER 441  Channel4 (c4l)
10729  =  8.00dB Señal/SNR50% AGC99% BER 69 Channel 4 +1
10744  =  7.50dB Señal/SNR46% AGC99% BER 450 RTE One
10758  =  8.50dB Señal/SNR53% AGC99% BER 10 ITV
10773  =  7.50dB Señal/SNR46% AGC99% BER 328 1BBC 1 London
10788  =  8.50dB Señal/SNR53% AGC99% BER 49 BBC 1 Wales
10803  =  7.50dB Señal/SNR46% AGC99% BER 602BBC 1 Scotland
10817  =  8.00dB Señal/SNR50% AGC99% BER 87 BBC 1 Oxford
10832  =  7.00dB Señal/SNR43% AGC99% BER 789 ITV HD
10847  =  7.50dB Señal/SNR46% AGC99% BER 0 BBC One HD
10862  =  7.00dB Señal/SNR43% AGC99% BER 0
10876  =  9.00dB Señal/SNR56% AGC99% BER 8 Nickelodeon
10891  =  7.50dB Señal/SNR46% AGC99% BER 121 ITV +1
10906  =  9.00dB Señal/SNR56% AGC99% BER 6 STV
10921  =  *************Fin  Cero ******************* Cero
10935  =  8.00dB Señal/SNR50% AGC99% BER 0 ITV HD
10964  =  8.50dB Señal/SNR53% AGC99% BER 58 Channel 5 =
10994  =  7.50dB Señal/SNR46% AGC99% BER 266 ITV HD =
11022  =  7.00dB Señal/SNR43% AGC99% BER 0 BBC 1 Scot HD
11053  =  0.00dB Señal/SNR 0% AGC 0% BER 1024 20730/20740/ITV2HD/ITV4HD.*KO.
11067  =  9.50dB Señal/SNR56% AGC99% BER 0 ITV Encore HD
11097  =  9.50dB Señal/SNR59% AGC99% BER 0 21000/10/20/30 (ITV HD)
11126  =  9.50dB Señal/SNR59% AGC99% BER 0 Channel 4 HD
11222H(C1L)= 16.50dB Señal/SNR100 AGC99% BER 0 Greatest Hits ++++++++++ 6'5dB :-)
11224V(C2L)= 18.00dB Señal/SNR100 AGC99% BER 0 RT HD ++++++++++++++++++ 8'5dB :-)
11260V(C2U)= 17.00dB Señal/SNR100 AGC99% BER 0 B4U Music  +++++++++++++ 4'5dB :-)
11261H(C1U)= 17.50dB Señal/SNR71% AGC99% BER 0 horror channel++++++++++ 5'0dB :-)
11307H(C3 )=  8.50dB Señal/SNR53% AGC99% BER 0
11307V(C3 )=  8.50dB Señal/SNR53% AGC99% BER 0 Flava Bliss Scuzz
11343V(C4 )=  9.00dB Señal/SNR56% AGC99% BER 0 CBS Reality
11344H(C4 )=  8.50dB Señal/SNR53% AGC99% BER 0 E!, E!+1
11389H(C5L)= 10.50dB Señal/SNR65% AGC99% BER 0 xxxxxxxxx
11390V(C6L)= 11.50dB Señal/SNR71% AGC99% BER 0 xxxxxxxxx
11426V(C6U)=  9.50dB Señal/SNR59% AGC99% BER 0 FRANCE 24 eng
11428H(C5U)= 10.50dB Señal/SNR65% AGC99% BER 0 Fashion One/LBP TV
11582H22.56= 18.50dB Señal/SNR100 AGC99% BER 0 ************** NEW
11585H(D7S)= *************Fin  Cero ******************* Cero
11597V23.89= 19.00dB Señal/SNR100 AGC99% BER 0 ************** NEW
11604V(D8S)= *************Fin  Cero ******************* Cero
11662H(D11)= *************Fin  Cero ******************* Cero
11672H22.56= 18.50dB Señal/SNR100 AGC99% BER 0 ************** NEW
11681V  = *************Fin  Cero ******************* Cero
11686V22.56= 19.00dB Señal/SNR100 AGC99% BER 0 ************** NEW
11720  = 19.00dB Señal/SNR100 AGC99% BER 0 Lifetime HD
11758  = 18.50dB Señal/SNR100 AGC99% BER 0 Animal Plnt HD
11778  = 17.00dB Señal/SNR100 AGC99% BER 0 TMS (datos => TV)
11797  = 17.50dB Señal/SNR100 AGC99% BER 0 Channel5 HD
11817  = 18.00dB Señal/SNR100 AGC99% BER 0
11836  = 17.50dB Señal/SNR100 AGC99% BER 0 Sky Action
11856  = 17.50dB Señal/SNR100 AGC99% BER 0 E4 HD
11875  = 18.50dB Señal/SNR100 AGC99% BER 0
11895  = 17.50dB Señal/SNR100 AGC99% BER 0
11914  = 18.00dB Señal/SNR100 AGC99% BER 0 Pick, cambio=>Disney
11934  = 17.50dB Señal/SNR100 AGC99% BER 0 Sky Intro
11992  = 19.00dB Señal/SNR100 AGC99% BER 0 Dave
12012  = 19.00dB Señal/SNR100 AGC99% BER 0 Sky Family HD
12031H  = 11662H(D11)= *************Fin  Cero ******************* Cero
12051  = 18.00dB Señal/SNR100 AGC99% BER 0 SONY TV Asia
12070  = 18.00dB Señal/SNR100 AGC99% BER 0 Sky Games (datos)
12090  = 17.50dB Señal/SNR100 AGC99% BER 0
12110  = 19.00dB Señal/SNR100 AGC99% BER 0 Cartoonito
12148  = 19.50dB Señal/SNR100 AGC99% BER 0
12168  = 18.50dB Señal/SNR100 AGC99% BER 0
12188  = 18.50dB Señal/SNR100 AGC99% BER 0
12207  = 18.00dB Señal/SNR100 AGC99% BER 0 Pick/Pick+1/Sky News
12226H  = 19.50dB Señal/SNR100 AGC99% BER 0 TCM HD
12246  = 18.00dB Señal/SNR100 AGC99% BER 0
12265  = 18.50dB Señal/SNR100 AGC99% BER 0 BabyTV
12285  = 18.50dB Señal/SNR100 AGC99% BER 0
12304  = 19.00dB *************Fin  Cero ******************* Cero
12324  = 19.00dB Señal/SNR100 AGC99% BER 0
12344  = 19.00dB Señal/SNR100 AGC99% BER 0
12363  = 18.00dB Señal/SNR100 AGC99% BER 0
12382  = 18.00dB Señal/SNR100 AGC99% BER 0 E! HD
12460  = 17.00dB Señal/SNR100 AGC99% BER 0 Sky Arts 1 HD
12480  = 18.00dB Señal/SNR100 AGC99% BER 0 The Box/Kiss/Kerrang
12515  = 18.50dB Señal/SNR100 AGC99% BER 0 MOTORS TV UK
12520  = 18.00dB Señal/SNR100 AGC99% BER 0 Cartoon Netwrk, 50290 (Record TV HD).
12545  = 18.50dB Señal/SNR100 AGC99% BER 0
12552  = 17.50dB Señal/SNR100 AGC99% BER 0
12604  = 17.50dB Señal/SNR100 AGC99% BER 0
12610  = 17.50dB Señal/SNR100 AGC99% BER 0 Kiss Magic RT
12633  = 18.00dB Señal/SNR100 AGC99% BER 0 Al Jazeera
12640  = 17.50dB Señal/SNR100 AGC99% BER 0 TVC News
12663  = 17.00dB Señal/SNR100 AGC99% BER 0 Euronews

PD:Buena pesca/Good fishing.



[Archive4]

18.5 on Baby TV, thank god that is encrypted!

Good work Tururu
