Just Sharing This My Channel Master 1.8 project.

Trust

Specialist Contributor
Joined
Jul 18, 2004
Messages
1,127
Reaction score
1,617
Points
113
Age
77
My Satellite Setup
1.8 m CM at SMR 1224 + Elev. with 7 lnb changer Ku (lin - circ) - Ka (lin - circ) C (lin - circ)
My Location
Nijmegen Netherlands
why would it be a problem to have threaded rod as opposed to no thread - its only the elevation angle - once set, its set, surely it doesnt matter if its threaded? does it....
You're right , no problem for the elevation adjustment , I make a mistake thinking it was the AZ movement .


nelson_b

Contributor
Joined
Jul 27, 2008
Messages
1,962
Reaction score
2,026
Points
113
Age
73
My Satellite Setup
Strong 4375 driving a 2.4 m Channel Master dual focus offset + Invcom Quad C120 K/U l.n.b. + BSC 421 and Zinwell C band l.n.b.,s - DR HD F15 - TM5302 - Octagon SX88+Optima - GT Media V7 - HD receivers. + other dishes currently in use - Antique 3.0 m Prodelin P.F. - Channel Master 1.8 m offset - Channel Master. 1.2 m.
My Location
North West Yorkshire - near Lancashire & Cumbria borders.
why would it be a problem to have threaded rod as opposed to no thread - its only the elevation angle - once set, its set, surely it doesnt matter if its threaded? does it....
Thats right it wouldn,t be a problem - with the elevation fixed .....

The reason i replaced mine. and probably part of the reason it had become worn is that i have an elevation jack attached to my mount for fine tuning etc ... so iv removed the adjusting nuts - and the pivot bolt is not quite fully tightened .....

The dish was getting a quite noticeable side to side wobble on windy days .

Last edited:

Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,387
Reaction score
1,121
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
mine came with elevation jack, that might be what caused it to jam over time - i wont be using elevation jack (to start with anyway)

im still perplexed as to why the bolt got so jammed, it was bone dry maybe it should be greased.


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,538
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
mine came with elevation jack, that might be what caused it to jam over time - i wont be using elevation jack (to start with anyway)

im still perplexed as to why the bolt got so jammed, it was bone dry maybe it should be greased.
All Channel Master mounts that I know of have been zinc galvanised, to a very high quality. Your's isn't and so I suspect it isn't the genuine article.

Did you get a picture of the bolt head before hammering ? It should also have a set of marks that denote the type and quality.


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,538
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
I've just been out in the yard (it's sunny :D ) and these are the bolts on three of the dishes outside, first one the CM 2.4, the Chinese 3m and the Prodelin 1.8m (anodised). I should know what the markings mean but it's been a really long time since I needed to.

The Prodelin and Chinese mounts have been outdoors for upwards of ten years, all bolts can still be undone with a decent spanner and there are only the smallest marks on the zinc surfaces, most likely down to previous assembly or poor storage as opposed to quality control since none were new when I got them.


Attachments

  • CM.jpg
    542.1 KB · Views: 44
  • Chinese.jpg
    334.8 KB · Views: 27
  • Prod.jpg
    823.2 KB · Views: 29

Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,387
Reaction score
1,121
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
cant make it out...


Attachments

  • PXL_20220101_111404420.jpg
    390.9 KB · Views: 24
  • PXL_20220101_111409387.jpg
    397.9 KB · Views: 23
  • PXL_20220101_111416850.jpg
    372.4 KB · Views: 48

cokeaddict

Regular Member
Joined
Mar 6, 2011
Messages
185
Reaction score
66
Points
28
My Satellite Setup
Vu+ Ultimo4K, Uno4K SE, Uno4K, Solo4K, Zero4K, Duo2, SoloSE v1 & v2, Solo2, Ultimo, Uno, Duo, Motorised CM 1.2m dish, Hybrid Titanium Smart Lnb with CM feedhorn and a Zone2 minidish with Inverto Unicable II
My Location
53°E - 45°W
8.8 tensile bolt should be fine (that's what 8.8 stands for in the picture from the CM 2.4 above).


Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,538
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
cant make it out...
Are there any others on the mount with similar markings ? CM mounts have them on all, the locking bar end bolt is one that should be of a similar tensile strength.


wium78

Regular Member
Joined
Nov 16, 2014
Messages
123
Reaction score
23
Points
18
Age
87
My Satellite Setup
fixed,polar mount and C band dish.
My Location
south africa
What about sand blasting and galvanising?


jeallen01

Specialist Contributor
Joined
Oct 12, 2003
Messages
6,674
Reaction score
2,630
Points
113
My Satellite Setup
See Signature
My Location
Somewhere in England (possibly?)!
Last edited:

Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,387
Reaction score
1,121
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
thanks all.

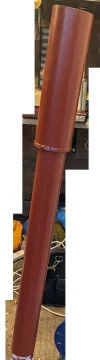

today i applied first coat of primer to all the components and pole.


Attachments

  • PXL_20220101_154424191.MP.jpg
    258.9 KB · Views: 49
  • PXL_20220101_154429855.MP.jpg
    233 KB · Views: 51
  • PXL_20220101_154436733.jpg
    111.8 KB · Views: 83

moonbase

Small Dish Man
Joined
Mar 29, 2004
Messages
4,370
Reaction score
4,470
Points
113
My Satellite Setup
.
My Location
UK
thanks all.

today i applied first coat of primer to all the components and pole.


Just a thought from looking at the picture of the pole, is part of the pole going to be set into the concrete?
If it is, then it might be safe to attach some type of anti spin metalwork to prevent any slight chance of it spinning in the hole over an extended period of time

A couple of holes in the pole below surface level with bolts projecting from them will do the trick.


Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,387
Reaction score
1,121
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
All Channel Master mounts that I know of have been zinc galvanised, to a very high quality. Your's isn't and so I suspect it isn't the genuine article.

Did you get a picture of the bolt head before hammering ? It should also have a set of marks that denote the type and quality.


#521 - exactly same as mine, and rusty - just not so much.


Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,387
Reaction score
1,121
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
Just a thought from looking at the picture of the pole, is part of the pole going to be set into the concrete?
If it is, then it might be safe to attach some type of anti spin metalwork to prevent any slight chance of it spinning in the hole over an extended period of time

A couple of holes in the pole below surface level with bolts projecting from them will do the trick.
no mate, the pole slots over an NPRM which came with the deal - the NPRM will then go onto concrete base further up garden on the lawn.

i will be buidling base over next couple of days - the pole on its own, isn't long enough really otherwise


Attachments

  • PXL_20220101_155005413.jpg
    1.4 MB · Views: 41

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Joined
Jan 1, 2000
Messages
35,538
Reaction score
8,554
Points
113
Age
59
Website
www.sat-elite.uk
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK

#521 - exactly same as mine, and rusty - just not so much.
Can't see the bolt head in that picture.

Better this thread for detail on the polarmount origins.



Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,387
Reaction score
1,121
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
you've now got me thinking, i still have a 3.5 pole which I could drill through and put rods through and cement in.

i will measure length to see what there is to play with.

how deep would i need to accommodate such a weighty beast...?


moonbase

Small Dish Man
Joined
Mar 29, 2004
Messages
4,370
Reaction score
4,470
Points
113
My Satellite Setup
.
My Location
UK
you've now got me thinking, i still have a 3.5 pole which I could drill through and put rods through and cement in.

i will measure length to see what there is to play with.

how deep would i need to accommodate such a weighty beast...?


I think the recommended guideline is one third of the pole length in the concrete, two thirds of the pole length above the surface of the concrete.
Obviously, your two thirds of pole length above the concrete needs to be tall enough to give the 1.8m dish LNB boom arm ground clearance for arc extremities (unless you plan to install it inverted).
