SpaceX Eutelsat 36D

lovelyperson

Dreamer
Joined
Sep 8, 2004
Messages
1,055
Reaction score
1,907
Points
113
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
TBS 5925 USB
Octagon SF8008 4k Twin + SF8008 SUPREME + 2 x Uclan Ustym 4K PRO Twin
GTMedia V8 UHD
GTMedia GTcombo x 2
Goldmaster SR525 HD
Geant-OTT 750 ALLURE EVO 4K + Sat-illimitè F300 hyper
62.0ºE - 63.0ºW
My Location
Alicante, España
Alicante, España....1.8m PF.... Inverto quad Flange C120

Receiver: Uclan Ustym 4K PRO Twin S2X

52 transponders give mixture of Eurasian, Sub-Sahara African and Africa beams received.......as I have no Circular LNB, no Russian beams received!

In all 673 channels received.



duck77

Member
Joined
Jan 2, 2019
Messages
77
Reaction score
283
Points
53
Age
47
My Satellite Setup
C Band / Ku Band 2.40 PF / Ku Band 0.85 dish for Hispasat
Vu+Duo 4k / Vu+ Zero 4k / Octagon 8008 / Octagon 8008 Mini / Tbs 5927
Satellite reception between 50.0E-99.2W
My Location
Azores
My scan

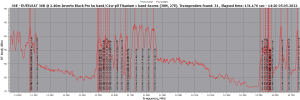

Before:

36.0E-RFScan HORIZONTAL.png36.0E-RFScan VERTICAL.png

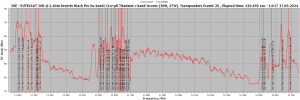

Now:

36.0E-RFScan HORIZONTAL.png36.0E-RFScan VERTICAL.png

Africa beam is gone for me :eek::eek::eek:


Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
770
Reaction score
1,165
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Orbitron SX-10 310 cm + H2H motor + ADL RP2-CPOR feed
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
Octagon SF8008 (Twin & Combo) + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
I bet we all hate these HTS satellites.:angry:


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy

Attachments

  • 36 est scan 3.png
    36 est scan 3.png
    131.8 KB · Views: 40
  • 36 est scan 2.png
    36 est scan 2.png
    289.9 KB · Views: 33

solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,720
Reaction score
3,914
Points
113
Age
54
My Location
Tel Aviv, Israel
eutelsat 36b it empty transponder more switch amu 1 to 36d ?


Marcus_21

Specialist Contributor
Joined
Jan 21, 2010
Messages
473
Reaction score
1,840
Points
93
Location
Naples, Italy
Website
www.frequencyplansatellites.altervista.org
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB Inverto Pro Quad PLL + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + LNB Inverto Pro Quad PLL + actuator 18" + V-Box II.
My Location
40.7N - 14.5E
they must have made changes to the power of the TX since 2 days ago I was receiving a lot of TP while now many are missing from the TP roll call
I think it depends on interference from the Russian beam, which, compared to the 36B, reaches Italy with more power... you have to consider that all the transponders from the Russian beam were transferred the following night to the Sub-Sahara Africa beam.


Fidu7

New Member
Joined
Mar 21, 2015
Messages
8
Reaction score
7
Points
3
Age
47
My Satellite Setup
Gibertini 125
My Location
Luzern
Here in Central Switzerland I can still receive Subsahara Africa Beam. All Transponder with dvb-s are still there but the signal is in average about 1,5 dB weaker than before.


Attachments

  • screenshot (19).jpg
    screenshot (19).jpg
    132 KB · Views: 23
  • screenshot (21).jpg
    screenshot (21).jpg
    213.7 KB · Views: 29

stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
935
Reaction score
1,527
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
I tried to convert a linear KU LNB into a circular LNB (very poor result for the right polarity).
Here what I could get.


Attachments

  • 11727L.jpg
    347.2 KB · Views: 25
  • 11766L.jpg
    311.9 KB · Views: 17
  • 11804L.jpg
    335.4 KB · Views: 11
  • 11843L .jpg
    11843L .jpg
    293.5 KB · Views: 11
  • 11881L.jpg
    335.1 KB · Views: 11
  • 11919L.jpg
    330.6 KB · Views: 11
  • 11958L.jpg
    302 KB · Views: 8
  • 11996L.jpg
    325.3 KB · Views: 7
  • 12034L.jpg
    299.3 KB · Views: 7
  • 12054R.jpg
    291.2 KB · Views: 11

stephan94

Specialist Contributor
Joined
Jun 30, 2008
Messages
935
Reaction score
1,527
Points
93
Age
67
My Satellite Setup
1.80 Channel master with 6 LNB KU KA C Band 1200 Laminas KU
Openbox SX6 and S3 Mini, Dr HD 15, GTCombo ; Octagon SF 4008 , TBS 6983
My Location
Bavaria
the last picture


Attachments

  • 12149L.jpg
    356.4 KB · Views: 25

Marcus_21

Specialist Contributor
Joined
Jan 21, 2010
Messages
473
Reaction score
1,840
Points
93
Location
Naples, Italy
Website
www.frequencyplansatellites.altervista.org
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB Inverto Pro Quad PLL + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + LNB Inverto Pro Quad PLL + actuator 18" + V-Box II.
My Location
40.7N - 14.5E
I also insert my reports with a 150cm gibertini dish and an inverto home pro quad lnb.

Blinscan of September 22nd (before the transfers).

Blinscan of September 29th (after the transfers).

And this is the spectrum with an Emme Esse 80185KL lnb, always on a 150cm gibertini, inserted 2 degrees out of focus and modified with a dielectric for circular polarity... obviously there is no lock.


solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,720
Reaction score
3,914
Points
113
Age
54
My Location
Tel Aviv, Israel
Here in Central Switzerland I can still receive Subsahara Africa Beam. All Transponder with dvb-s are still there but the signal is in average about 1,5 dB weaker than before.
the rusia beam reeicver in centeral swizerland ?
with begger dish ?


Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
770
Reaction score
1,165
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Orbitron SX-10 310 cm + H2H motor + ADL RP2-CPOR feed
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
Octagon SF8008 (Twin & Combo) + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac

Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
770
Reaction score
1,165
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Orbitron SX-10 310 cm + H2H motor + ADL RP2-CPOR feed
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
Octagon SF8008 (Twin & Combo) + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
I just checked thoroughly with my robot motor the three strongest out-of-europe beam signals and can 100% confirm the position:
11.727 LH & 11.766 LH are on Express-AMU1 (36.1E) while 12.149 LH is on the new Eutelsat 36D (35.9E).

Signals 35.9E:
11727_359.png 11766_359.png 12149_359.png

Signals 36.1E:
11727_361.png 11766_361.png 12149_361.png


solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,720
Reaction score
3,914
Points
113
Age
54
My Location
Tel Aviv, Israel
11727 V
DVB-S2/8PSK
27500 2/3

SuperSport 1 Variety 2
-left-

11900 R
DVB-S2/8PSK
27500 3/4

My (МЫ)
-started

12054 H
DVB-S/QPSK
27500 3/4

SuperSport Variety 2 Africa
-left-


12245 H
DVB-S/QPSK
27500 3/4

SuperSport Variety 3 Africa
-left-


anto@

Regular Member
Joined
Oct 30, 2015
Messages
331
Reaction score
376
Points
63
Age
60
My Satellite Setup
dish 150 4 feed ku c lin c circ ka tbs 6925 tbs 5280
My Location
italy
from the day the new satellite came into operation up to today I have lost around 300 channels, so it means that as soon as they were activated they used a certain power value, in the days following the entry into operation they decreased the signal power


scopus

Specialist Contributor
Joined
Mar 25, 2005
Messages
3,286
Reaction score
3,959
Points
113
Age
60
My Satellite Setup
Primesat/Famaval 1.8 PF C/ku/Ka, Octagon SX8HD1, SX88, Openbox S3 Mini HD-V8S Freesat V7 HD-V8 Finder, Amiko A4K Combo, Satlook Colour HD Spectrum, Sansui A909 Amp and BOSE Acoustimass speakers for the audio.
My Location
Staffs UK

John

Enthusiast.
Joined
Jan 1, 2000
Messages
3,933
Reaction score
6,011
Points
113
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.

nelson_b

Contributor
Joined
Jul 27, 2008
Messages
1,985
Reaction score
2,075
Points
113
Age
74
My Satellite Setup
Strong 4375 driving a 2.4 m Channel Master dual focus offset + Invcom Quad C120 K/U l.n.b. + BSC 421 and Zinwell C band l.n.b.,s - DR HD F15 - TM5302 - Octagon SX88+Optima - GT Media V7 - HD receivers. + other dishes currently in use - Antique 3.0 m Prodelin P.F. - Channel Master 1.8 m offset - Channel Master. 1.2 m.
My Location
North West Yorkshire - near Lancashire & Cumbria borders.
Blind Scan of 36 E with GT Media V7 from 2.4 C.M offset - North West UK. 13 transponders found.

36 E scan.jpg

Cant check on K/U Circular at the moment ... need to change the feedhorn for that ..
The only circular i was able to lock last time i tried it here was 12149 H 27500 ... its currently showing 7.5 db on the F15 receiver .. so in theory its less than 1.0 db below lock without a dielectric plate in the feed. so i,m sure i will still lock it with a plate in. .... i will try circular again when i get some spare time.
